Note: Install the indoor unit at a height of more than 2.5m (8') above the floor.
2.2.2.2
Hang Indoor Unit
1. Please refer to the part of 3.4.2 to locate the four positioning screw bolt hole on the ceiling. Be
sure to mark the areas where ceiling hook holes will be drilled.
2. Install and fit pipes and wires after you have finished installing the main body. When choosing
where to start, determine the direction of the pipes to be drawn out. Especially in cases where there is
a ceiling Involved, align the refrigerant pipes, drain pipes, and indoor and outdoor lines with their
connection points before mounting the unit.
3. Install hanging screw bolts
•
Cut off the roof beam.
•
Strengthen the place that has been cut off, and consolidate the roof beam.
4. After you select an installation location, align the refrigerant pipes, drain pipes, as well as indoor
and outdoor wires with their connection points before mounting the unit.
5. Drill 4 holes 10cm (4") deep at the ceiling hook positions in the internal ceiling. Be sure to hold
the drill at a 90° angle to the ceiling.
6. Secure the bolt using the washers and nuts provided.
7. Install the four suspension bolts.
8. Mount the indoor unit with at least two people to lift and secure it. Insert suspension bolts into
the unit’s hanging holes. Fasten them using the washers and nuts provided.

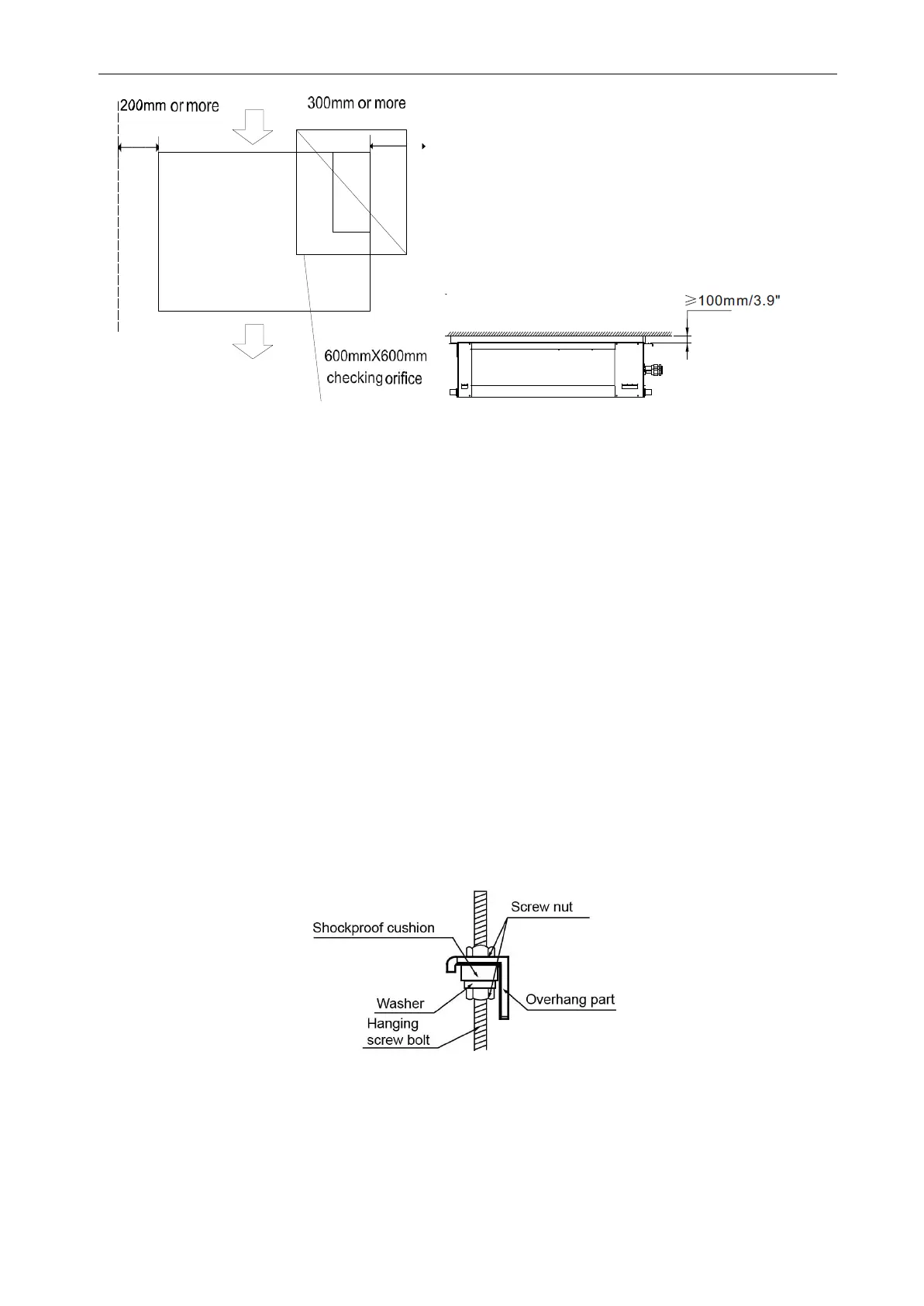

Note: Hang the nut inside the U slot of the installation panel. To confirm level degree with gradienter .
Leaning downside toward non-draining side is prohibited. (see below)
Note: Confirm the minimum drain tilt is 1/100 or more.
