2.10.6
Electric Wiring of Outdoor Unit Side
1)

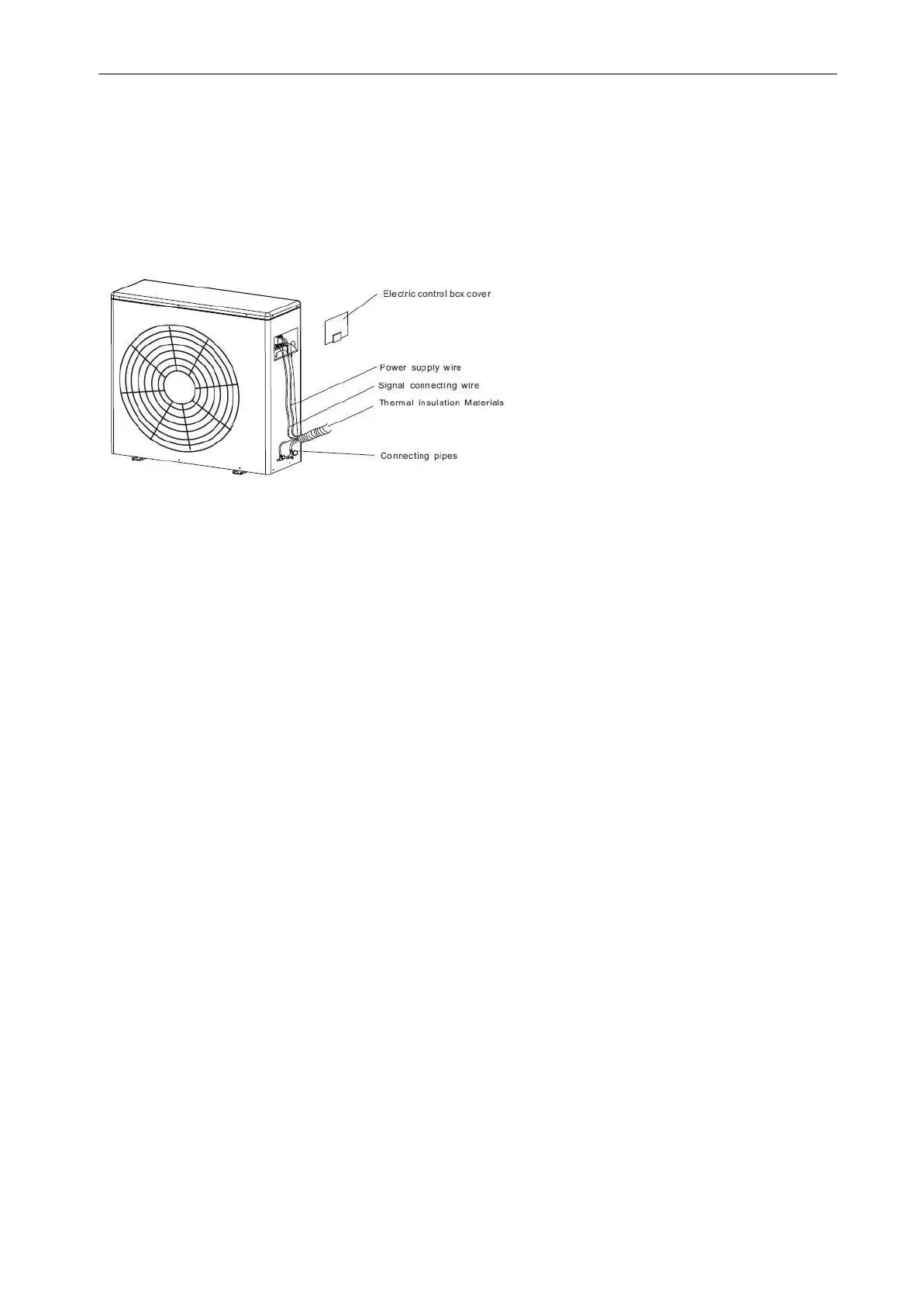

Remove the electric cover of the outdoor unit.
2)
Connect the power connection cord to the terminal board. Wiring should fit that of indoor unit.
3)
Fix the power connection cord with wire clamp.
4)
Confirm if the wire has been fixed properly.
5)
An efficient earth connection must be ensured.
6)
Recover the control box cover.
NOTICE: When connecting the power supply cord, make sure that the phase of the power supply
matches with the exact terminal board. If not, the compressor will rotate reversely and run improperly.
2.10.7
Electric Wiring of Indoor Unit Side
2.10.7.1
Prepare The Cable For Connection
1)
Using wire strippers, strip the rubber jacket from both ends of signal cable to reveal about
15cm (5.9") of the wires inside.
2)
Strip the insulation from the ends of the wires.
3)
Using a wire crimper, crimp u-lugs on the ends of the wires.
2.10.7.2
Wiring Instructions
Cassette Type Unit:
1)
Open the front panel of the indoor unit. Using a screwdriver, remove the cover of the electric
control box.
2)
Thread the power cable and the signal cable through the wire outlet.
3)
Connect the power connection cord to the terminal board. Wiring should fit that of Outdoor
unit.
4)
Fix the power connection cord with wire clamp.
5)
Confirm if the wire has been fixed properly.
6)
An efficient earth connection must be ensured.
7)
Reinstall the electric cover of the indoor unit.
