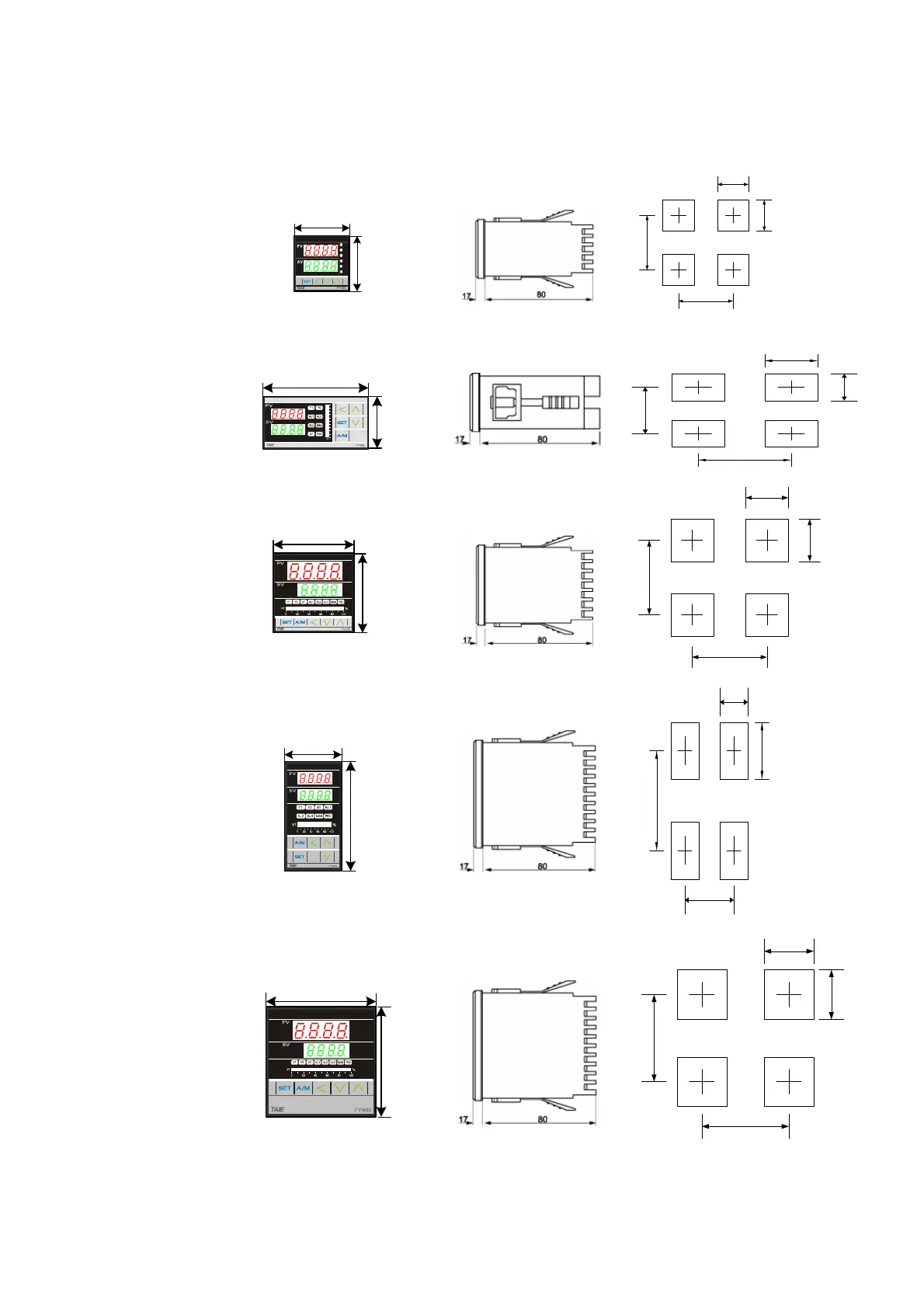

4. External dimension and panel cutout〈Unit：mm〉
uTC52
Y1
Y2
AT
AL
AL
PRO
1
2
50
50
44.5+0.5
44.5+0.5
65
70
uTC62
96
50
90.5+0.5
44.5+0.5
111
70
uTC72
74
74
68.5+0.5
68.5+0.5
89
94
uTC42
96
50
44.5+0.5
90.5+0.5
65
116
uTC92
96
96
90.5+0.5
90.5+0.5
111
116
