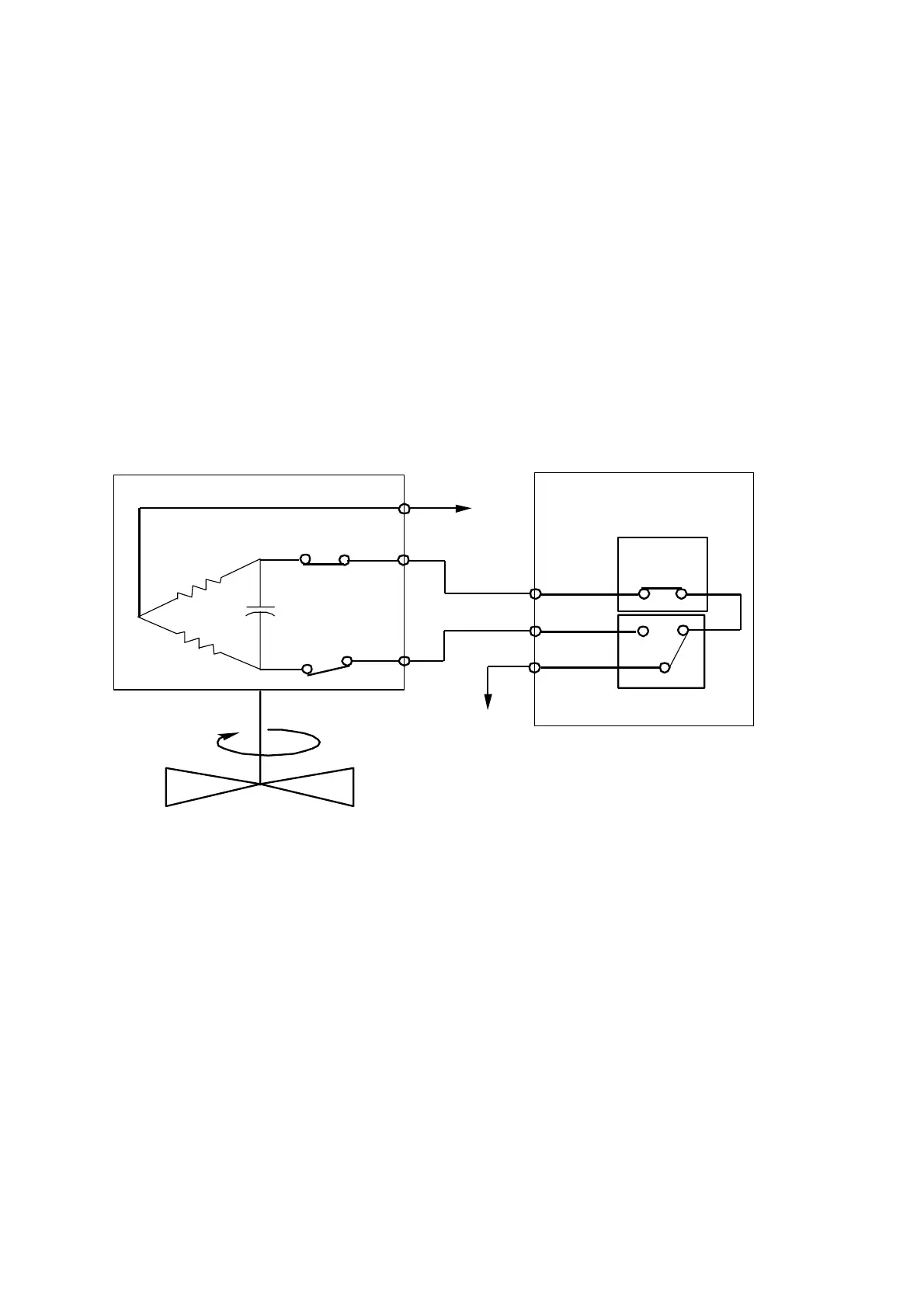

17.10 3 wires proportional motor valve control
z Available Models： uTC92 / uPC92，uTC72 / uPC72
uTC42 / uPC42，uTC62 / uPC62
uTC52 / uPC52
z Data Change： OUTY=3
CYT1=1 ~ 100sec.
(Manufacturing default setting “5” seconds.)
RUCY=5 ~ 200 seconds.
1. CYT1 is the cycle time of Open / Close
2. RUCY is the 0 ~ 100% running time of motor valve
MOTOR VALVE
CONTROLLER
CLOSE
OPEN
COM
OPEN
CLOSE
COM
OUT1
Relay
OUT2
Relay
R
S
