TCS900004, Rev.4
07/12/2016
Check us out at www.TCSmeters.com
Page 37

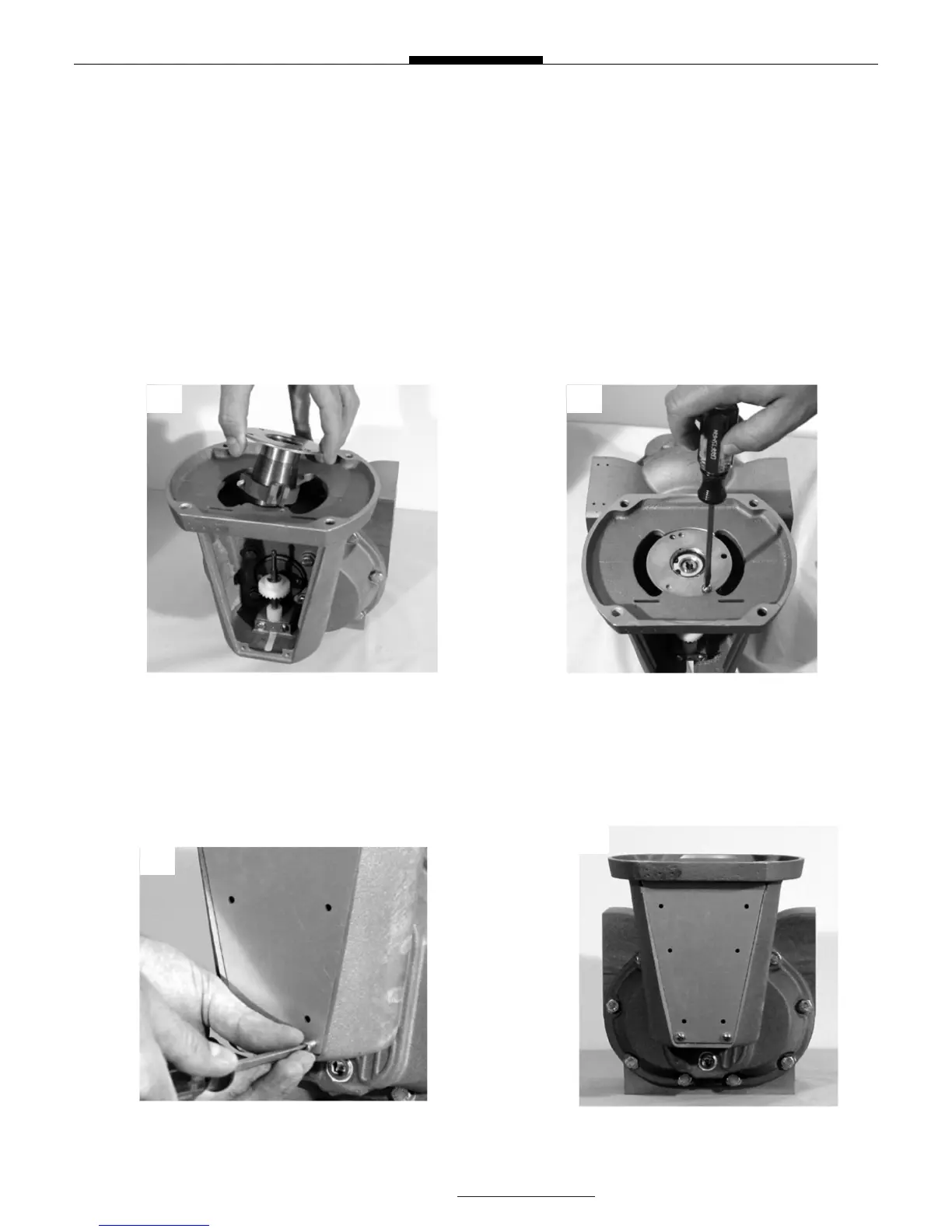

Reassembly of Meter (Continued)
Reinstalling Adjuster
1) Reinsert the adjuster into the top of the counter support and assuring that it mates with the drive
shaft.
2) Tighten the screws that secure the adjuster plate to the counter support.
Reinstalling Dust Cover
1) Reattach dust cover and tighten the screws.
2) Back where we started.
1 2
1
2
