ZK300DC SWING GATE OPERATOR USER’S MANUAL
8

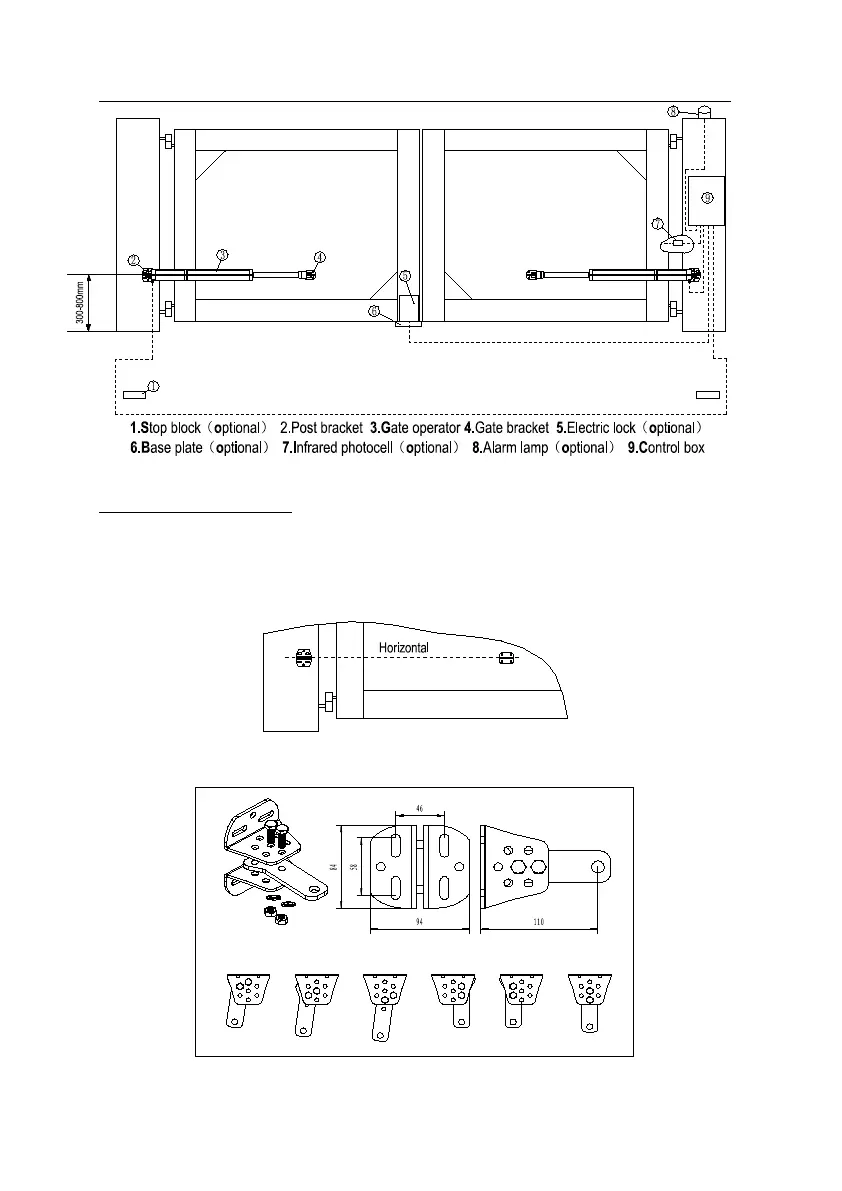

Fig.5
Rear parts of gate operator
Fix the post bracket on the cement pillar with screws and spacers (or welding for
metal pillar). Make sure that the bracket is plumb and lever.
Mount the rear part of the gate operator on the post bracket using the pin supplied,
secure the pin using the nut. See Fig. 7.
The bracket installation should meet the specifications as shown in figure 4.
Fig.6
Screw
Washer
and nut
1 2 3
4 5
6
