Frequency Input 7.2.5.2
M2
PIN
FUNCTION
DESCRIPTION
1
E-A
Channel A input, if differential (otherwise not connected).
f max 300 kHz - 5÷24V
2
E-/A (F)
Channel /A frequency input or frequency input.
f max 300 kHz - 5÷24V
3
E-B
Channel B input, if differential (otherwise not connected).
f max 300 kHz - 5÷24V
4
E-/B (UP)
Channel /B frequency or direction input. (UP/DOWN).
f max 300 kHz - 5÷24V
5
GND
0V
6
Shield
TAB. 16 – Frequency input

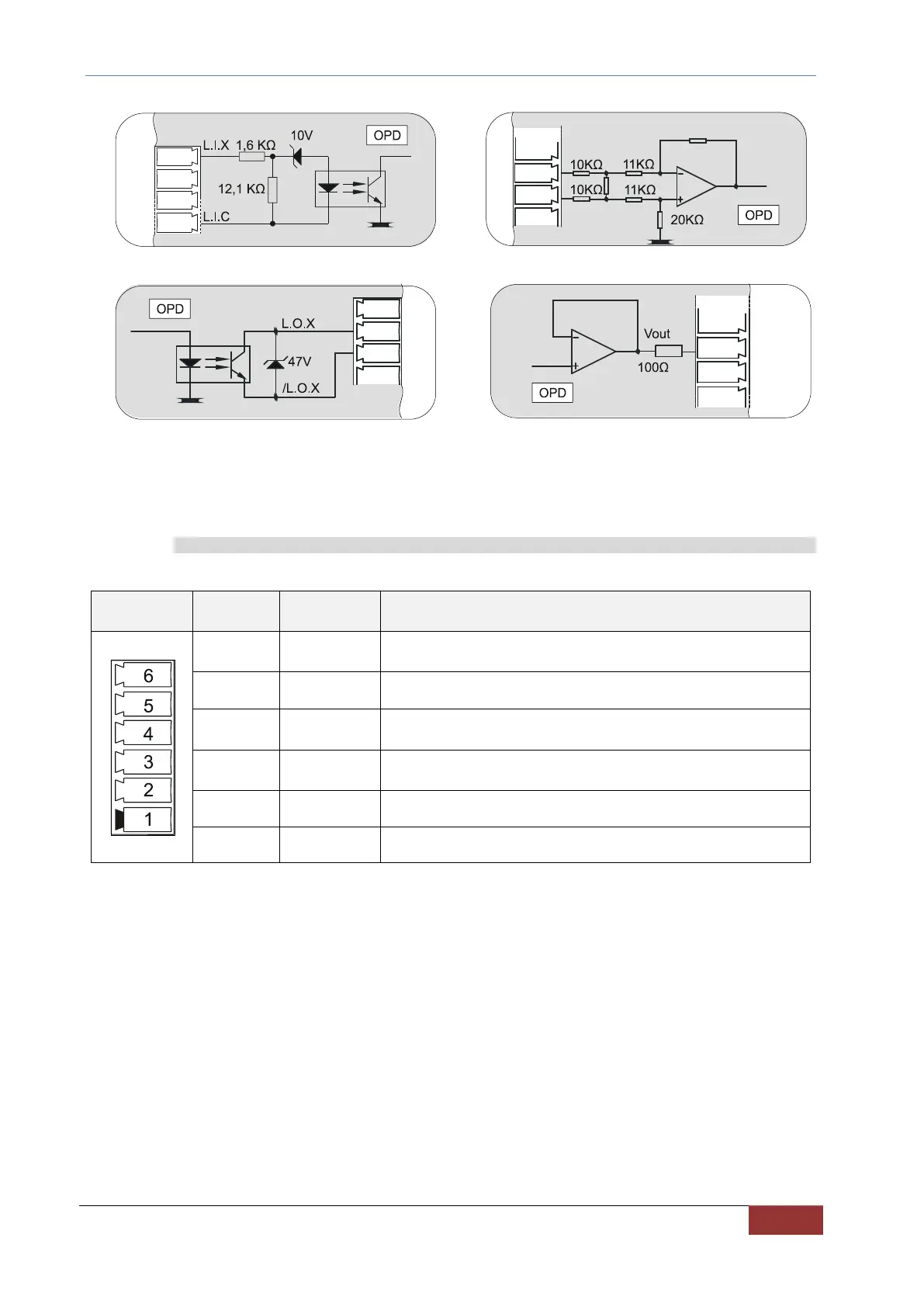

FIG. 18A – Configurable logical inputs
FIG. 18C – Configurable logical outputs
FIG. 18D - Configurable analog output
FIG. 18B – Configurable analog input
