Physical Dimensions in mm.
392.0 Max.
153.0
+
1.0
_
70.0
+
0.5
_
Front Panel Output Jacks Option: available for ZUP200W , ZUP400W and ZUP800W series for 6V to 60V
models.
ZUP200/L and ZUP400/ L
Up to 20A output current via front panel jacks.
CAUTION:
ZUP800 front panel output is protected against overcurrent by 25A 125V Fast acting fuse.
For continued protection against risk of fire, replace only with same type and rating of fuse.

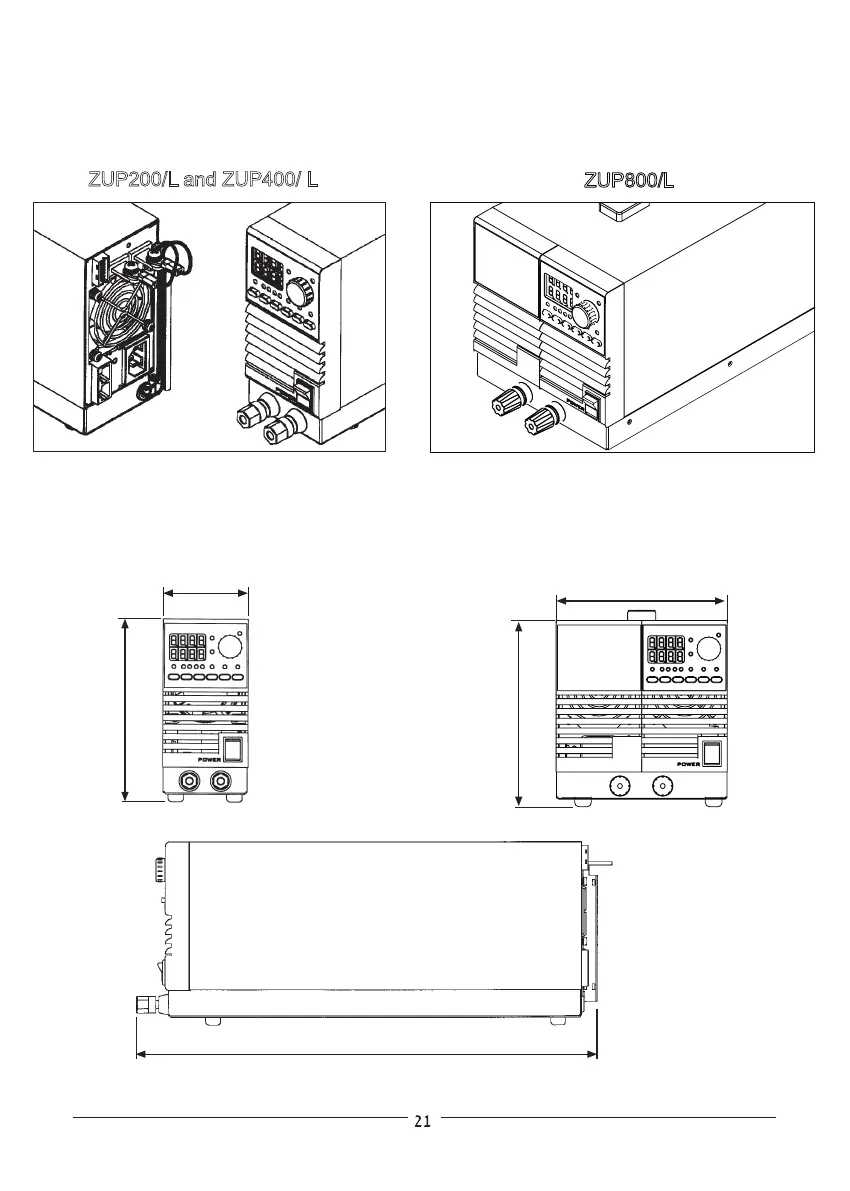

3.12 OUTLINE DRAWINGS
ZUP800/L
153.0
+
1.0
_
140.0
+
0.5
_
