Section II – Introduction
D. Electrical Specifications and Ratings. (Refer to Figure 2.2.)

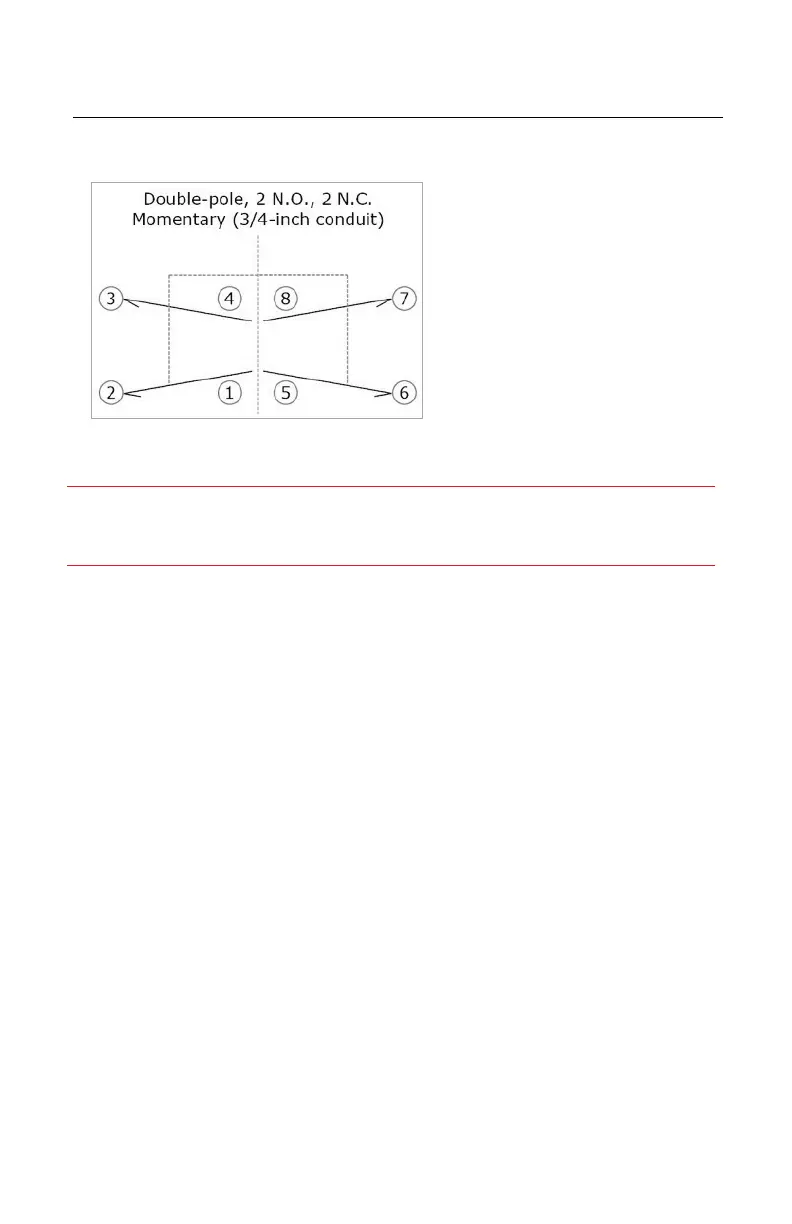

Figure 2.2. Electrical Indicator Switch Specifications
Electrical ratings (refer to Tables 6-8):
10 amps continuous carry. Circuits on any one pole must be the same
polarity. The BX4CL switch is weather-sealed, explosion proof and
designed specifically for use in hazardous location applications. The
switch enclosure is sealed for protection against corrosion, water, dust,
and oil as defined in NEMA 1, 3, 4, 4X, 6, 7, 9, 13, and IP67 as defined
in IEC 529. The switch enclosure meets the European Hazardous
Locations Designation: EExd IIC T6 category II 2 GD, SIRA 00ATEX
1037X. The switch complies with the European Directive on Equipment
and Protective Systems Indented for us in Potentially Explosive
Atmospheres (94/9/EC) commonly referred to as ATEX Directive.
:
When a flag indicator is used in combination with an electrical switch
; the switch
will open or close momentarily when the flag is res
et.
