TDW PIG-SIG V User Manual

48
Section IV – Pipeline Under Pressure
3.0 Continued
B. Rotate the feed tube clockwise to extend th
e
bor
ing bar until the plug holder contacts bottom of
the one-inch hex drive recess in the PIG-SIG V.
The feed tube should be at the mark on the body
tube.
C. If the feed tube is approximately one inch abov
e
t
he mark on the body tube (Figure 4.55), the pl
ug
hol
der did not align with the hex drive hole in t
he
PI
G-SIG V.

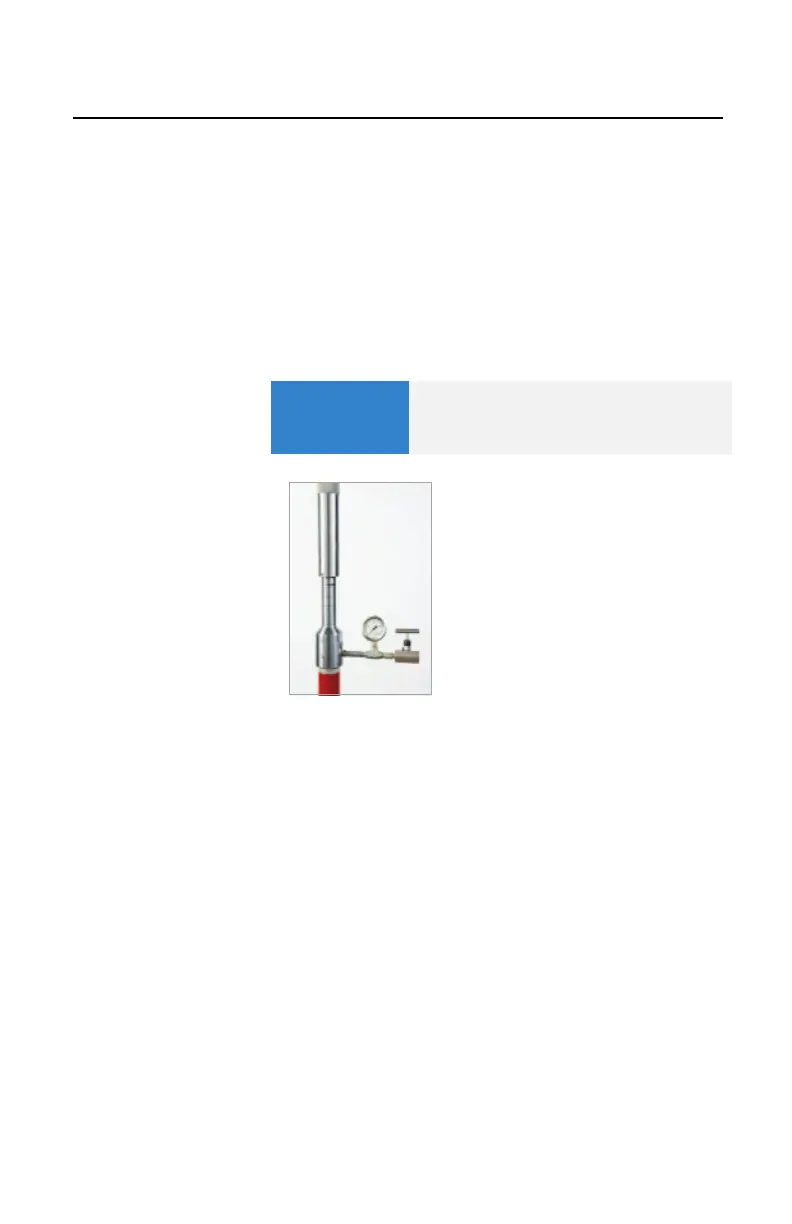

Figure 4.55. Feed Tube One
Inch Above Mark On Body Tube
IMPOR TANT
If the feed tube is approximately one
inch above the mark on the body
tube, continue on to Section 3.6.
