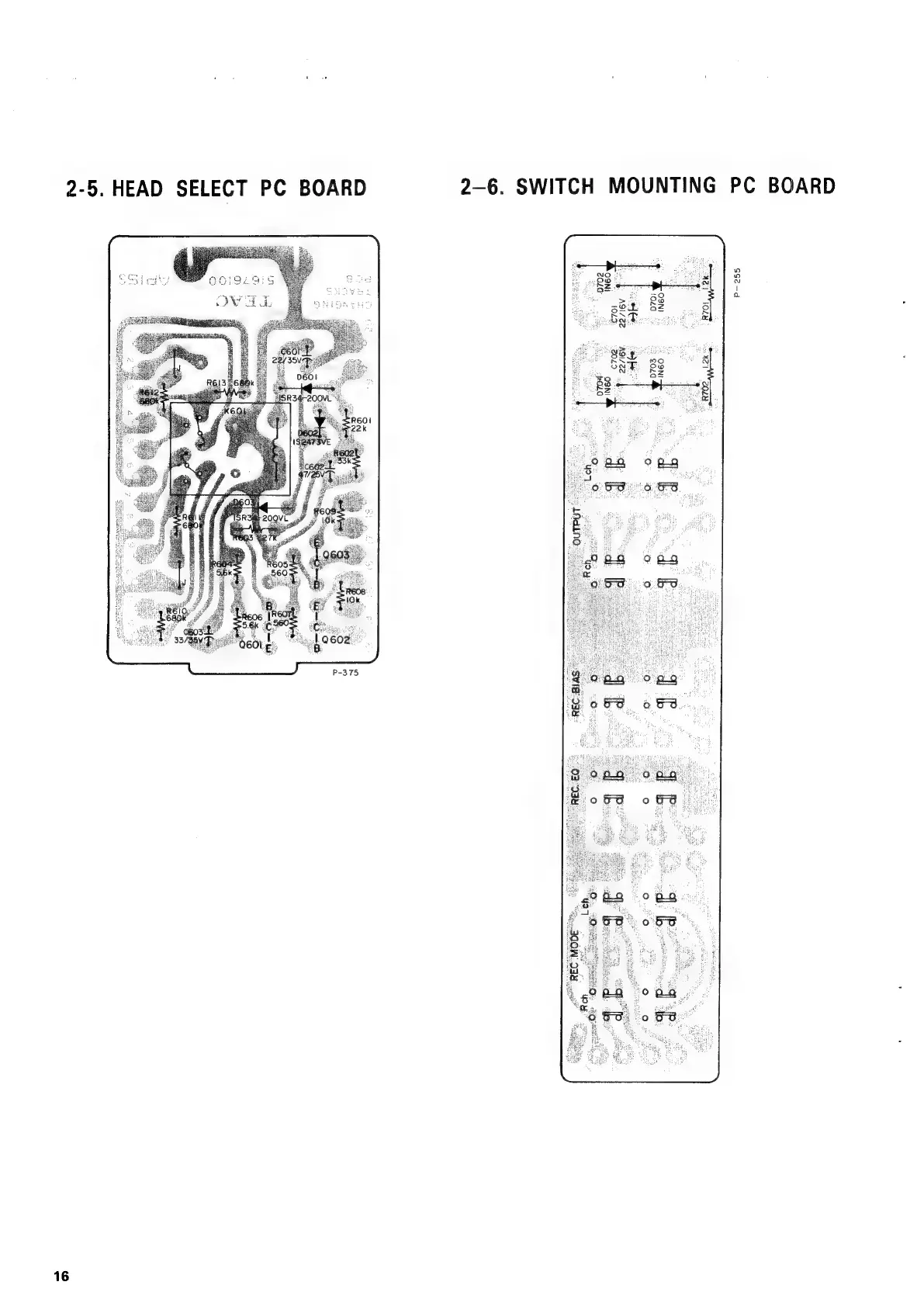

Teac A-2300SR - PC Board Section Diagrams (Continued); HEAD SELECT PC Board Diagram; SWITCH MOUNTING PC Board Diagram

Teac A-2300SR
58 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
16
2-5.
HEAD
SELECT
PC
BOARD
2—6.
SWITCH
MOUNTING
PC
BOARD
P-255
