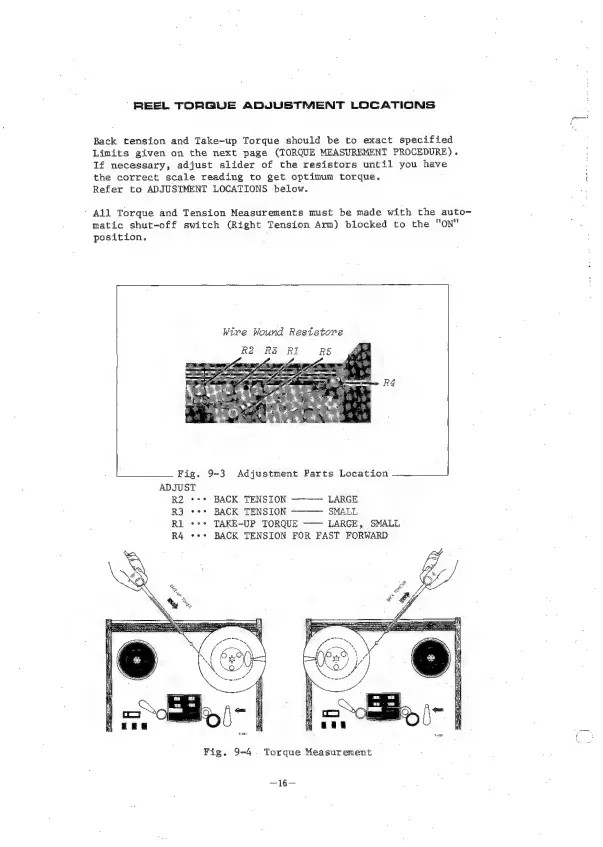

REEL TORQUE ADJUSTMENT LOCATIONS
Back tension and Take-up Torque should be to exact specified
Limits given on the next page (TORQUE MEASUREMENT PROCEDURE).
If necessary, adjust slider of the resistors until you Bae
the correct scale reading to get optimum torque.
Refer to ADJUSTMENT LOCATIONS below.
' All Torque and Tension Measurements must be made with the auto-
matic shut-off switch (Right Tension Arm) blocked to the "ON"
position.
Wire Wound Reststors
RZ Rs Ri BS
+ R4
Fig. 9+3 Adjustment Parts Location
ADJUST
R2 *** BACK TENSION LARGE
R3 *°** BACK TENSION - SMALL
Rl ++** TAKE-UP TORQUE —— LARGE, SMALL =
R4 «++ BACK TENSION FOR FAST FORWARD
Fig. 9-4. Torque Measurement |
