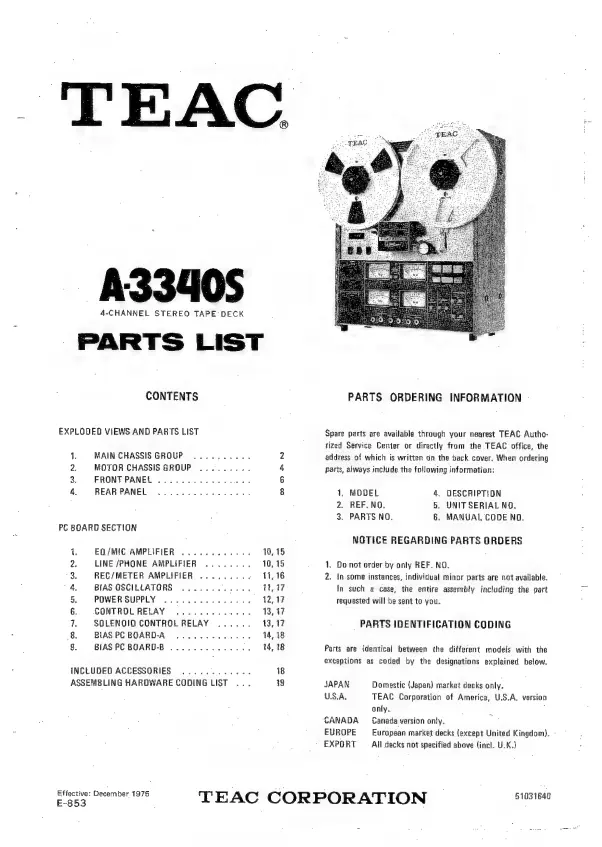

Teac A-3340S - Table of Contents

TEAC.
~ AS33405
4-CHANNEL STEREO TAPE DECK
PARTS LIST
CONTENTS
EXPLODED VIEWS AND PARTS LIST
1. MAINCHASSISGROUP .......... 2
2. MOTORCHASSISGROUP ......... 4
D> FRONT PANEL. .cucaniYarkimccraes 6
4 REARPANEL ................ 8
PC BOARD SECTION
1. EQ/MiC AMPLIFIER ............ 18, 15
2, LINE /PHONE AMPLIFIER ........ 10, 15
3, REC/METER AMPLIFIER ......... - 14,16
4. BIASGSCILLATGRS ....... étage! SleAt
5. POWERSUPPLY ...........-... 12,17
B. -sCONTROLRELAY® ac oe ced atom. TdeNd
7, SOLENOIO CONTROL RELAY ...... 13,17
8 BIASPCBOARDA ............. 14, 18
§. BIASPCBOARD-B............. , 4,18
INCLUDED ACCESSORIES ..... agin 18
ASSEMBLING HARDWARE CODING LIST ... 19
Effective: December 1975
PARTS ORDERING INFORMATION |
Spare parts are available through your nearest TEAC Autho-
rized Service Center or directly from the TEAC office, the
addvess of which is written on the back cover, When ordering
parts, always include the following information:
1, MODEL 4. DESCRIPTION
2. REF.NO. 5. UNIT SERIAL NO.
3. PARTS NO. 6. MANUAL CODE NQ.
NOTICE REGARDING PARTS ORDERS
1. Do not order by only REF. NO.
2. In some instances, individual minor parts are not available.
In such a case, the entire assembly including the part
requested will be sent te you.
_ PARTS IDENTIFICATION CODING
Parts are identical between the different models with the
exceptions as coded by the designations explained below.
JAPAN Domestic (Japan) market decks only.
U.S.A. TEAC Corporation of America, U.S.A. version
only..
CANADA Canada version only.
EUROPE = European market decks (except United Kingdom). -
EXPORT Ail decks not specified above (inc!. U.K.)
cigiwomner
175
TEAC
CORPORATION
©
tisiow
