oscilloscope
PLAYBACK
AMPLIFIER
RECORD
AF OSC AMPLIFIER
During Record Azimuth Adjustment, BIAS OSC
the oscilloscope pattern angle for
SOURCE and TAPE monitoring must
be identical in order to maintain
a 0° phase difference between them.
RECORDING TEST TAPE

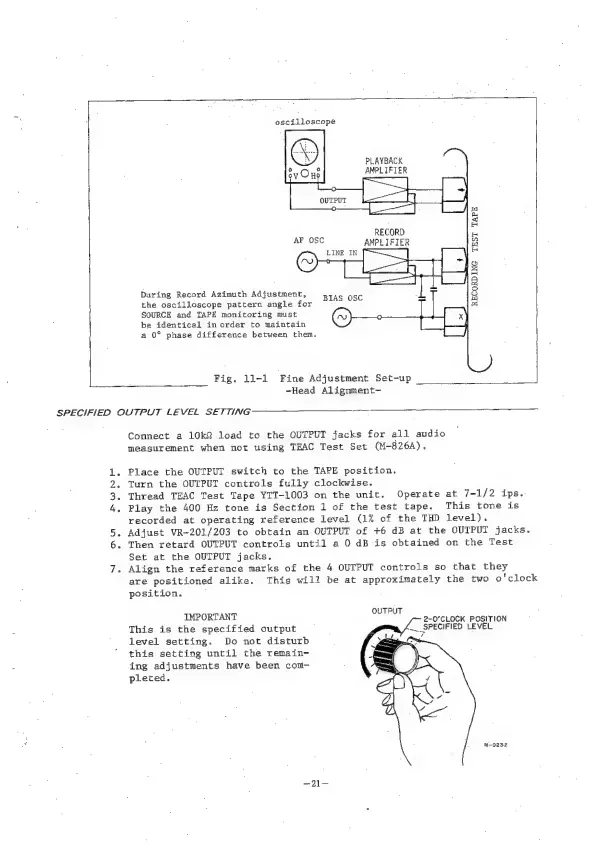

Fig. 1l-1 Fine Adjustment Set-up
~Head Alignment-—
SPECIFIED OUTPUT LEVEL SETTING =~
Connect a 10k2 load to the OUTPUT jacks for all audio
measurement when not using TEAC Test Set (M-826A).
1. Place the OUTPUT switch to the TAPE position,
2. Turn the OUTPUT controls fully clockwise.
3. Thread TEAC Test Tape YIT-1003 on the unit. Operate at 7-1/2 ips.
4. Play the 400 Hz tone is Section 1 of the test tape. This tone is
recorded at operating reference level (1% of the THD level).
5. Adjust VR-201/203 to obtain an OUTPUT of +6 dB at the OUIPUT jacks.
6. Then retard OUTPUT controls until a 0 dB is obtained on the Test
Set at the OUTPUT jacks.
7. Align the reference marks of the 4 OUTPUT controls so that they
are positioned alike. This will be at approximately the two o'clock
position. ,
OUTPUT
IMPORTANT
This is the specified output
level setting. Do not disturb
this setting until the remain-
ing adjustments have been com-
pleted.
2-O0°CLOCK POSITION
~._ SPECIFIED LEVEL
M-0232
