TEAC MAINTENANCE EQUIPMENT
viwpngiwig
cee Malye
Suh e
Wor scree Ge mee fa, weniger
TEAC TZ~261 TEAC TZ~255 TEAC E-1
Cleaner Oil Kit Head Demagnetizer

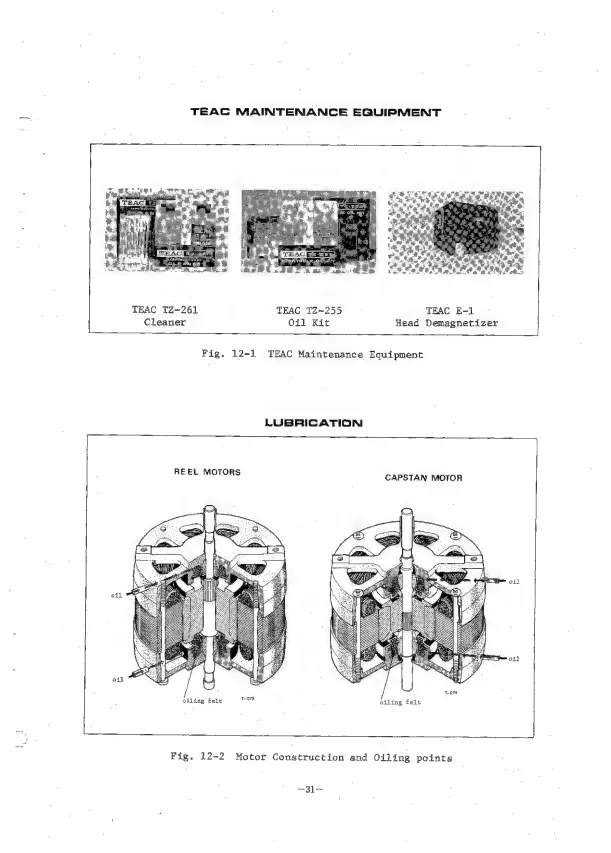

Fig. 12-1 TEAC Maintenance Equipment
LUBRICATION
REEL MOTORS CAPSTAN MOTOR
oiling felt
Fig. 12-2 Motor Construction and Oiling points
