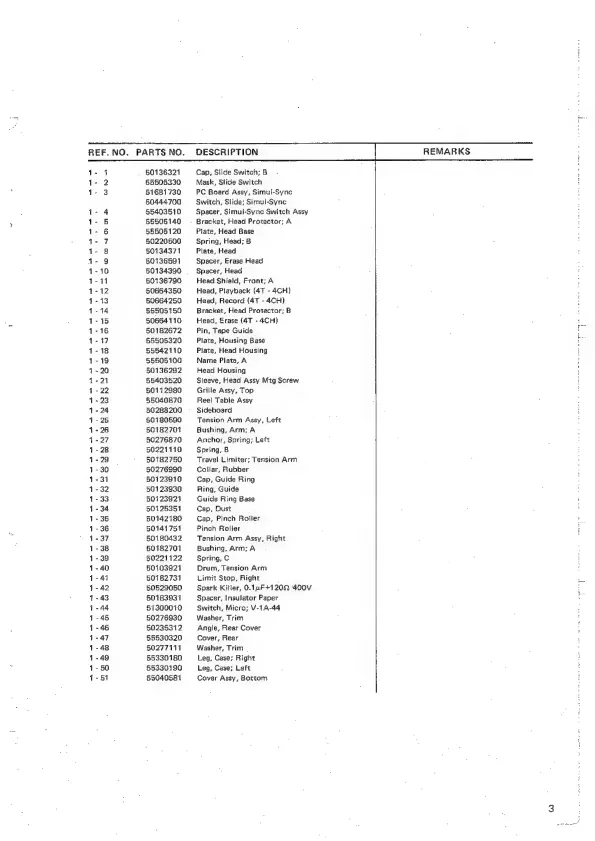

Teac A-3340S - Page 41

REF.NO. PARTS NO. DESCRIPTION | REMARKS
- 4 . §0136321 Cap, Slide Switch; B
- 2 55505330 Mask, Slide Switch
- 3 51681730 PC Board Assy, Simul-Sync
50444700 Switch, Slide; Simu!-Sync
1-4 55403510 Spacer, Simui-Syne Switch Assy
y 1-5 55505140 =. Bracket, Head Protector; A
1-6 55505120 Pilate, Head Base
1- 7 50220500 Spring, Head; 8B
i- 8 50134371 Plate, Head
4-9 50136591 Spacer, Erase Head
1-10 50134390 . Spacer, Head
1-11 50136790 Head Shield, Front; A
1-12 50664350 Head, Playback (47 - 4CH}
1-13 50664250 Head, Record (4T - 4CH)
1-14 55505150 Bracket, Head Protector; B
. 1-15 50664110 Head, Erase (4T - 4CH)
1-16 50182672 Pin, Tape Guide
1-17 55505320 Plate, Housing Base
1-18 §5642110 Plate, Head Housing
1-19 55505106 Name Plate, A
1-20 50136292 Head Housing
1-21 §5403520 Sleeve, Head Assy Mtg Screw
1-22 50112980 Grille Assy, Top
1-23 55040870 Reel Table Assy
1-24 50288200 — Sideboard
1-25 50180590 Tension Arm Assy, Left
1-26 50182701 = Bushing, Arm; A
4-27 50276870 Anchor, Spring; Left
1-28 50221110 Spring, B
1-29 — ' 50182750 Travel Limiter; Tension Arm
1-30 50276990 Cotlar, Rubber
1-31 50123910 Cap, Guide Ring
1-32 50123930 Ring, Guide
1-33 50123921 Guide Ring Base
1-34 50125351 Cap, Dust
1-35 50142180 Cap, Pinch Roller
; 1-36 50141751 Pinch Rolier
4-37 §0180432 Tension Arm Assy, Right
1-38 50182701 Bushing, Arm; A
1-39 50221122 Spring, ©
1-40 50103921 Drum, Tension Arm
1-41 50182731 Limit Stop, Right ;
4-42 50529050 Spark Killer, G.1uF+1202 400V
4-43 50183931 Spacer, Insulator Paper
1-44 51300010 Switch, Micro; V-1A-44
1-45 50276930 Washer, Trim
1-46 50235312 Angle, Rear Cover
1-47 §5530320 Cover, Rear
1-48 50277111 Washer, Trim |
1-49 §5330180 Leg, Case; Right
1-50 55330190 Leg, Case; Left
1-51 55040587 Caver Assy, Bottom
