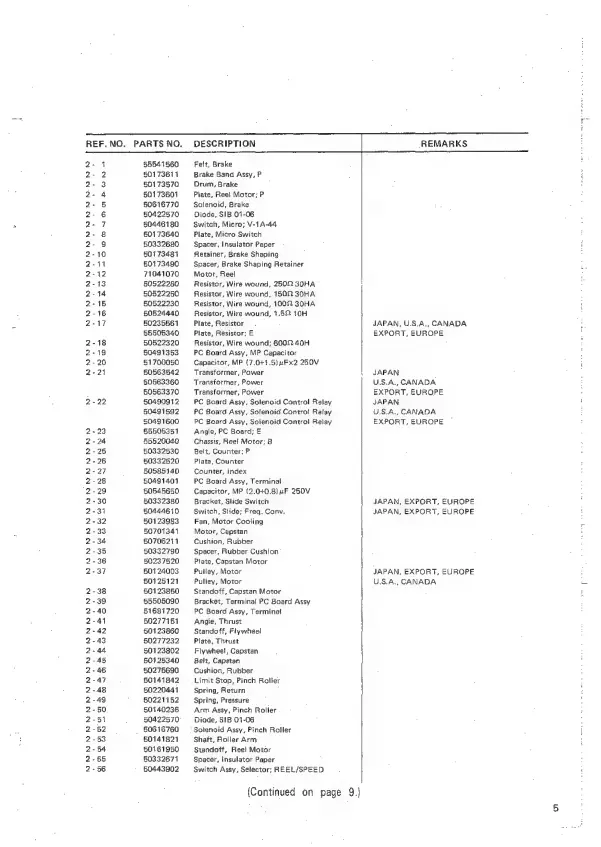

Teac A-3340S - Page 43

Switch Assy, Selector; REEL/SPEED
(Continued on page 9.}
REF.NO,. PARTS NO. DESCRIPTION REMARKS
2- 4 55541560 Feit, Brake
2- 2 50173611 Brake Band Assy, P
2- 3 50173570 Drum, Brake
2-4 §0173601 Plate, Reel Motor; P
2-5 50616770 Solenoid, Brake
2-6 50422570 Diode, SIB 01-06
2- 7 50446180 Switch, Micro; V-1A-44
2-8 50173640 Plate, Micro Switch
2-9 50332680 Spacer, Insulator Paper
2-10 50773481 Retainer, Brake Shaping
2-11 50173490 Spacer, Brake Shaping Retainer
2-12 71041070 Motor, Reel
2-13 §0522280 Resistor, Wire wound, 2602 30HA ©
2-14 50522250 Resistor, Wire wound, 1502 30HA
2-15 50522230 Resistor, Wire wound, 1008 30HA
2-16 50524440 Resistor, Wire wound, 1,522 10H
2-17 50235561 Plate, Resistor JAPAN, U.S.A., CANADA
55505340 Plate, Resistor; E EXPORT, EUROPE
2-18 50522320 Resistor, Wire wound; 60082 40H :
2-19 50491353 PC Board Assy, MP Capacitor
2-20 51700050 Capacitor, MP {7.0+1.5)4Fx2 250V
2-21 50563542 Transformer, Power JAPAN
50563360 = Transformer, Power U.S.A., CANADA
‘ 50563370 Transformer, Power EXPORT, EUROPE
2-22 50490912 PC Board Assy, Solenoid Control Relay JAPAN
50491592 PC Board Assy, Solenoid Controf Relay U.S.A., CANADA
50491600 PC Board Assy, Solenoid Control Relay EXPORT, EUROPE
2-23 55505351 = Angle, PC Board; E ,
2-24 §5520040 Chassis, Reet Motor; 6
2-25 50332530 Belt, Counter; P
2-26 50332520 Plate, Counter
2-27 ; 50585140 Counter, Index
2-28 50491401 PC Board Assy, Terminal
2-29 50545650 Capacitor, MP (2.0+0.8) uF 250V
2-30 50332380 Bracket, Slide Switch JAPAN, EXPORT, EUROPE
2-31 50444610 Switch, Slide; Freq. Canv, JAPAN, EXPORT, EUROPE
2-32 50123983 Fan, Motor Cooling
2-33 50701341 Motor, Capstan
2-34 $0706211 Cushion, Rubber
2-35 50332730 Spacer, Rubber Cushion’
2-36 50237520 Plate, Capstan Motor :
2-37 501 24003 Pulley, Metor JAPAN, EXPORT, EUROPE
501425121 Pulley, Motor U.S.A., CANADA
2-38 50123850 Standoff, Capstan Motor
2-39 55505090 Bracket, Ferminal PC Board Assy
2-40 51681720 PC Board Assy, Terminal
2-41 50277151 Angie, Thrust
2-42 50123866 Standoff, Fiywheel
2-43 50277232 Plate, Thrust
2-44 50123802 Flywhee!, Capstan
2-45 50125340 Belt, Capstan
2-46 50275690 Cushion, Rubber
2-47. 50141842 ~—_ Limit Stop, Pinch Roller
2-48 50220441 Spring, Return :
2-49 : 50221152 Spring, Pressure
2-50. 50140236 = Arm Assy, Pinch Roller
2-51 : 50422570 Diode, SIB 01-06
2-52 _ §0616760 — Solenoid Assy, Pinch Roller
2-53 50141821 Shaft, Roller Arm
2-54 50161950 Standoff, Reel Motor
2-55 50332671 Spacer, Insulator Paper
