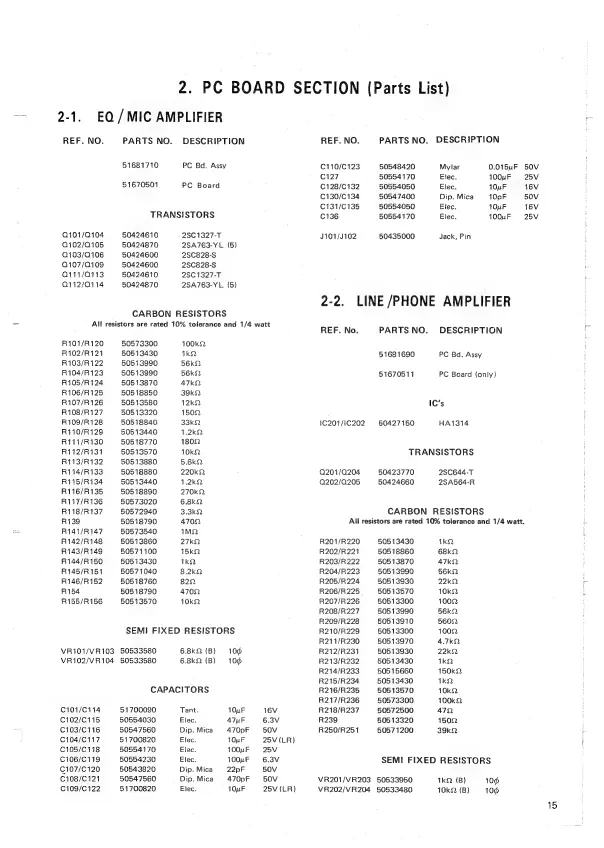

2. PC BOARD SECTION (Parts List)
16V
6.3V
50V
25V (LR)
25V
6.3V
50V
50V
2-1. EQ/MIC AMPLIFIER
REF. NO. PARTS NO. DESCRIPTION
51681710 PC Bd. Assy
51670501 PC Board
TRANSISTORS
Q101/0104 50424610 2S8C1327-T
0102/0105 50424870 2SA763-YL (5)
0103/0106 50424600 2SC828-S
Q107/0109 50424600 2SC828-S
0111/0113 50424610 28C1327-T
0112/0114 50424870 2SA763-YL (5)
CARBON RESISTORS
All resistors are rated 10% tolerance and 1/4 watt
R101/R120 50573300 100k2
R102/R121 50513430 1kQ
R103/R122 50513990 56kQ
R104/R123 50513990 56kQ
R105/R124 50513870 47kQ
R106/R125 50518850 39kN
R107/R126 50513580 12kQ
R108/R127 50513320 1502
R109/R128 50518840 33k2
R110/R129 50513440 1.2kQ
R111/R130 50518770 1802
R112/R131 50513570 10k
R113/R132 50513880 5.6kQ2
R114/R133 50518880 220k2
R115/R134 50513440 1,.2kQ
R116/R135 50518890 270k2
R117/R136 50573020 6.8kQ
R118/R137 50572940 3.3k2
R139 50518790 4702
R141/R147 50573540 IMQ
R142/R148 50513860 27kQ
R143/R149 50571100 15k
R144/R150 50513430 1kQ
R145/R151 50571040 8.2k2
R146/R152 50518760 822
R154 50518790 4702
R155/R156 50513570 10kQ
SEMI FIXED RESISTORS
VR101/VR103 50533580 6.8kQ2 (B) 106
VR102/VR104 50533580 6.8kQ (B) 10d
CAPACITORS
C101/C114 51700090 Tant. 10uF
C102/C115 50554030 Elec. 47uF
C103/C116 50547560 Dip. Mica 470pF
C104/C117 51700820 Elec. 1OuF
C105/C118 50554170 Elec. 100uF
C106/C119 50554230 Elec. 100uF
C107/C120 50543820 Dip. Mica 22pF
C108/C121 50547560 Dip. Mica 470pF
C109/C122 51700820 Elec. 10uF
25V (LR)
REF. NO. PARTS NO. DESCRIPTION
C110/C123 50548420 Mylar 0.015uF 50V
C127 50554170 Elec. 100uF 25V
C128/C132 50554050 Elec. 10uF 16V
C130/C134 50547400 Dip. Mica 10pF 50V
C131/C135 50554050 Elec. 10uF 16V
C136 50554170 Elec. 100uF 25V
J101/J102 50435000 Jack, Pin
2-2. LINE /PHONE AMPLIFIER
REF. No. PARTS NO. DESCRIPTION
51681690 PC Bd. Assy
51670511 PC Board (only)
IC’s
1C201/I1C202 50427150 HA1314
TRANSISTORS
Q201/0204 50423770 28C644-T
0202/0205 50424660 2SA564-R
CARBON RESISTORS
All resistors are rated 10% tolerance and 1/4 watt. -
R201/R220 50513430 1kQ
R202/R221 50518860 68k2
R203/R222 50513870 47kQ
R204/R223 50513990 56kQ
R205/R224 50513930 22k2 -
R206/R225 50513570 10ka L
R207/R226 50513300 1002
R208/R227 50513990 56KQ
R209/R228 50513910 5602
R210/R229 50513300 1002
R211/R230 50513970 4.7kQ
R212/R231 50513930 22k2
R213/R232 50513430 1k9A
R214/R233 50515660 150k2
R215/R234 50513430 1k2
R216/R235 50513570 10kQ
R217/R236 50573300 100ka
R218/R237 50572500 472
R239 50513320 1502
R250/R251 50571200
39k2 -
SEMI! FIXED RESISTORS
VR201/VR203 50533950
VR202/VR204 50533480
1kQ. {B) 106
10k2(B) 10@
15
