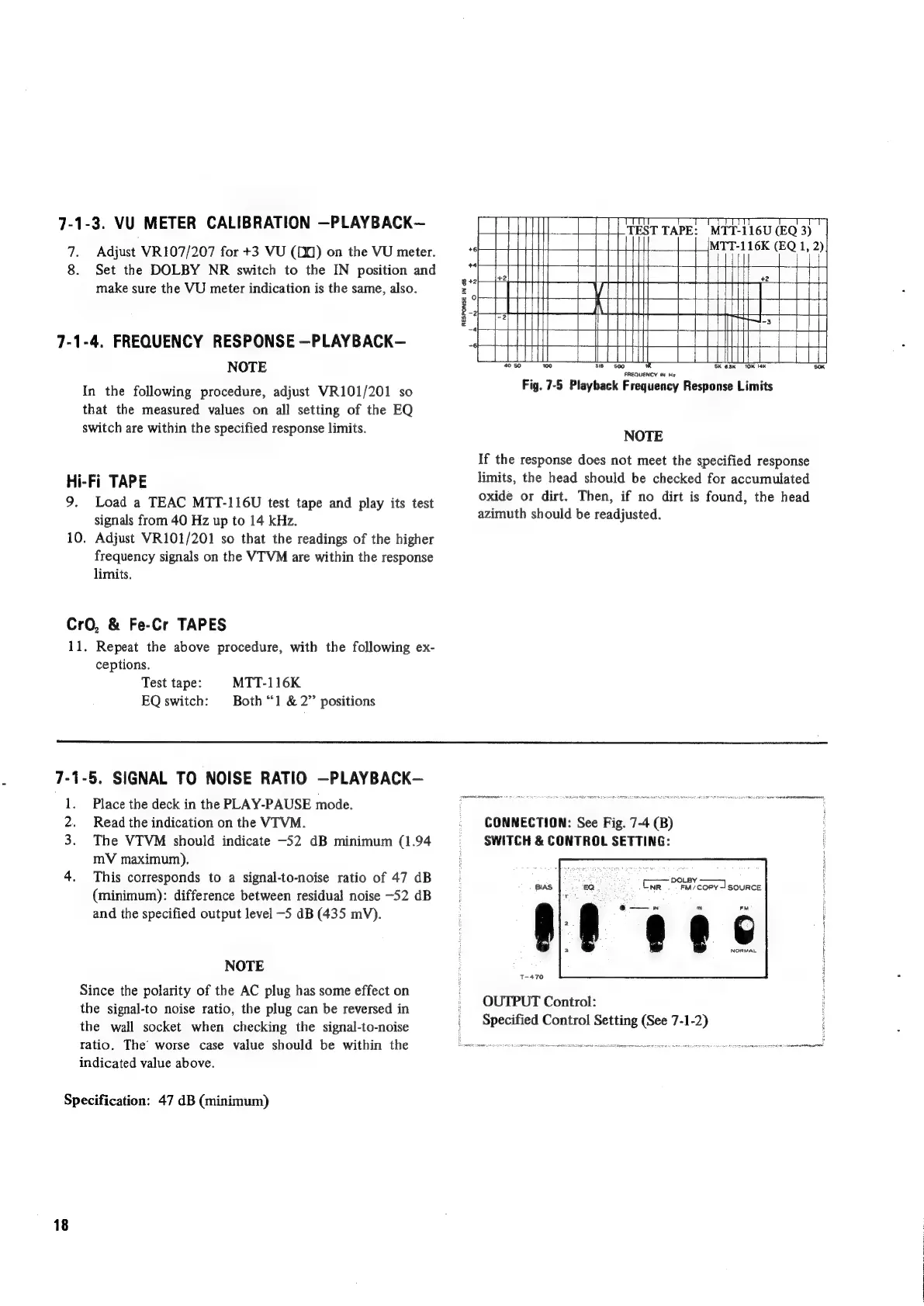

7-1-3.
VU
METER
CALIBRATION
—PLAYBACK—
7.
8.
Adjust
VR107/207
for
+3
VU
(D0)
on
the
VU
meter.
Set
the
DOLBY
NR
switch
to
the
IN
position
and
make
sure
the
VU
meter
indication
is
the
same,
also.
7-1-4.
FREQUENCY
RESPONSE
—PLAYBACK—
NOTE
In
the
following
procedure,
adjust
VR101/201
so
that
the
measured
values
on
all
setting
of
the
EQ
switch
are
within
the
specified
response
limits.
Hi-Fi
TAPE
9.
Load
a
TEAC
MTT-116U
test
tape
and
play
its
test
signals
from
40
Hz
up
to
14
kHz.
10.
Adjust
VR101/201
so
that
the
readings
of
the
higher
frequency
signals
on
the
VTVM
are
within
the
response
limits.
CrO,
&
Fe-Cr
TAPES
11.
Repeat
the
above
procedure,
with
the
following
ex-
ceptions.
Test
tape:
MTT-116K
EQ
switch:
Both
“1
&
2”
positions
RESPONSE
IN
dB
ea
+
+
bon
FO
NM
fb
ai
ee
,
TTT
Pee
EES
PL
oa
:
|.TEST
TAPE:
MTT-116U
(EQ
3)
TTT
|
MTT-116K
(EQ
1,
2)
+t
4+
o
oe
+2
+2
Li
|
$titt
|
=E
a
ca
+
Ht
tt
+
FREQUENCY
IN
Hz
Fig.
7-5
siceeci
pee
heirs
Limits
NOTE
If
the
response
does
not
meet
the
specified
response
limits,
the
head
should
be
checked
for
accumulated
oxide
or
dirt.
Then,
if
no
dirt
is
found,
the
head
azimuth
should
be
readjusted.
7-1-5.
SIGNAL
TO
NOISE
RATIO
—PLAYBACK—
Place
the
deck
in
the
PLAY-PAUSE
mode.
Read
the
indication
on
the
VTVM.
The
VTVM
should
indicate
-52
dB
minimum
(1.94
mV
maximum).
This
corresponds
to
a
signal-to-noise
ratio
of
47
dB
(minimum):
difference
between
residual
noise
—52
dB
and
the
specified
output
level
—5
dB
(435
mV).
NOTE
Since
the
polarity
of
the
AC
plug
has
some
effect
on
the
signal-to
noise
ratio,
the
plug
can
be
reversed
in
the
wall
socket
when
checking
the
signal-to-noise
ratio.
The’
worse
case
value
should
be
within
the
indicated
value
above.
Specification:
47
dB
(minimum)
18
Porn
mt
tn!
rier
w
noun
ete
npRer
ernie
er
tote
eu
EARTH,
CONNECTION:
See
Fig.
7-4
(B)
:
SWITCH
&
CONTROL
SETTING:
'
4
Hy
'
2
j
i
3
NORMAL
'
T-470
OUTPUT
Control:
Specified
Control
Setting
(See
7-1-2)
OLBY
arz|
FM/
COPY
~
SOURCE
