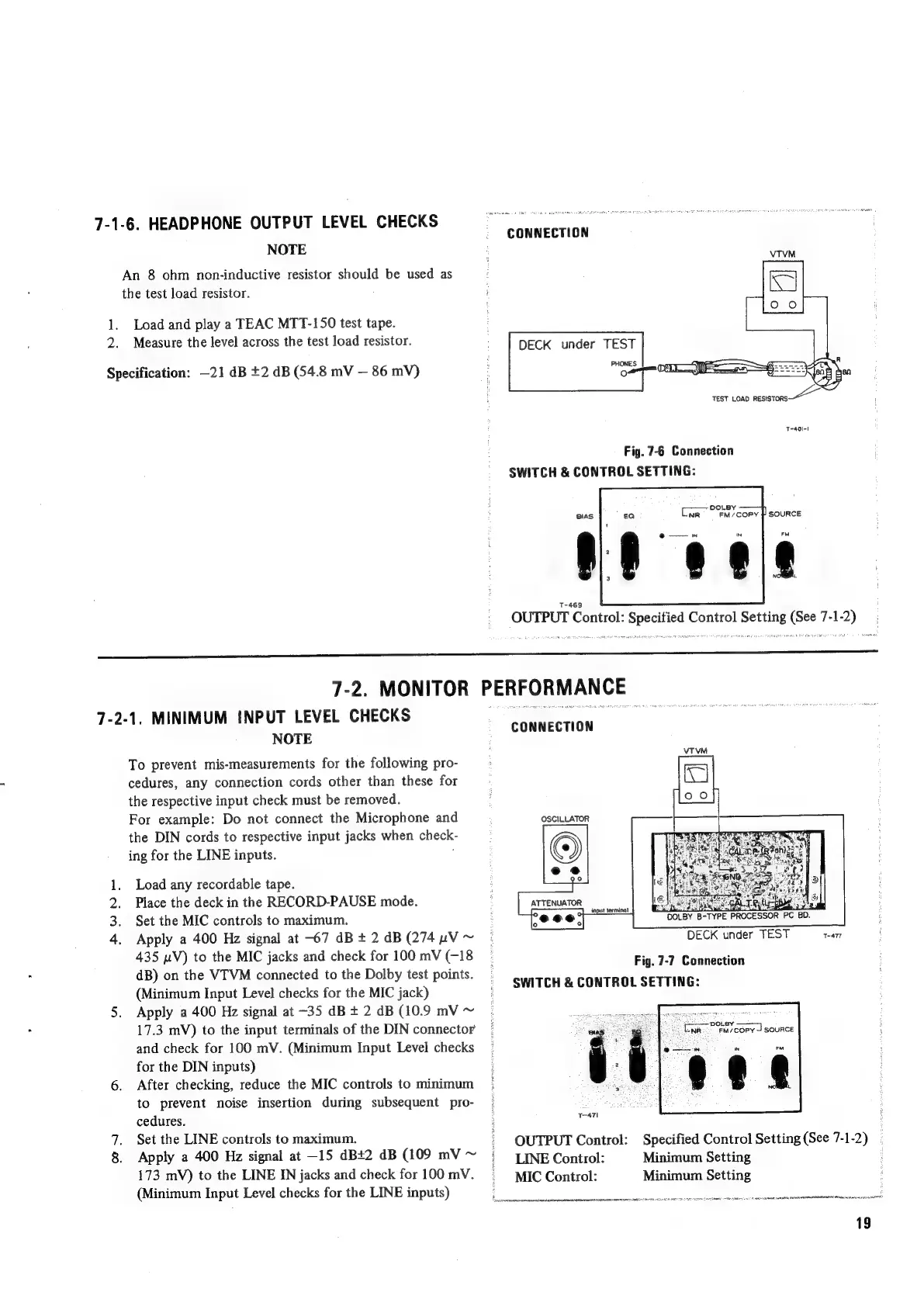

Teac A-450 - HEADPHONE OUTPUT LEVEL CHECKS; MONITOR PERFORMANCE; MINIMUM INPUT LEVEL CHECKS

7-1-6.
HEADPHONE
OUTPUT
LEVEL
CHECKS
NOTE
An 8 ohm non-inductive resistor should be used as
the test load resistor.
1. Load and play a TEAC MTT-150 test tape.
2. Measure the level across the test load resistor.
Specification:
—21
dB +2 dB
(54.8
mV
—
86
mV)
CONNECTION
VTVM
DECK under TEST
T-401-1
Fig. 7-6 Connection
SWITCH & CONTROL SETTING:
1-469
OUTPUT Control: Specified Control Setting (See 7-1-2).
7-2. MONITOR PERFORMANCE
7-2-1.
MINIMUM
INPUT
LEVEL
CHECKS
NOTE
To prevent mis-measurements for the following pro-
cedures, any connection cords other than these for
the respective input check must be removed.
For example: Do not connect the Microphone and
the DIN cords to respective input jacks when check-
ing for the LINE inputs.
Load any recordable tape.
Place the deck in the RECORD-PAUSE mode.
Set the MIC controls to maximum.
Apply a 400 Hz signal at -67 dB + 2 dB (274 uV ~
435 pV) to the MIC jacks and check for 100 mV (18
dB) on the VTVM connected to the Dolby test points.
(Minimum Input Level checks for the MIC jack)
5. Apply a 400 Hz signal at -35 dB + 2 dB (10.9 mV ~
17.3 mV) to the input terminals of the DIN connector
and check for 100 mV. (Minimum Input Level checks
for the DIN inputs)
6. After checking, reduce the MIC controls to minimum
to prevent noise insertion during subsequent pro-
cedures.
7. Set the LINE controls to maximum.
8.
Apply
a
400
Hz
signal
at
—15
dB+2
dB
(109
mV
~
173 mV) to the LINE IN jacks and check for 100 mV.
(Minimum Input Level checks for the LINE inputs)
PWN
z
CONNECTION
VTVM
OSCILLATOR
DECK under TEST 1-477
Fig. 7-7 Connection
SWITCH & CONTROL SETTING:
1-471
OUTPUT
Control:
Specified
Control
Setting
(See
7-1-2)
LINE
Control:
Minimum
Setting
MIC
Control:
Minimum
Setting
