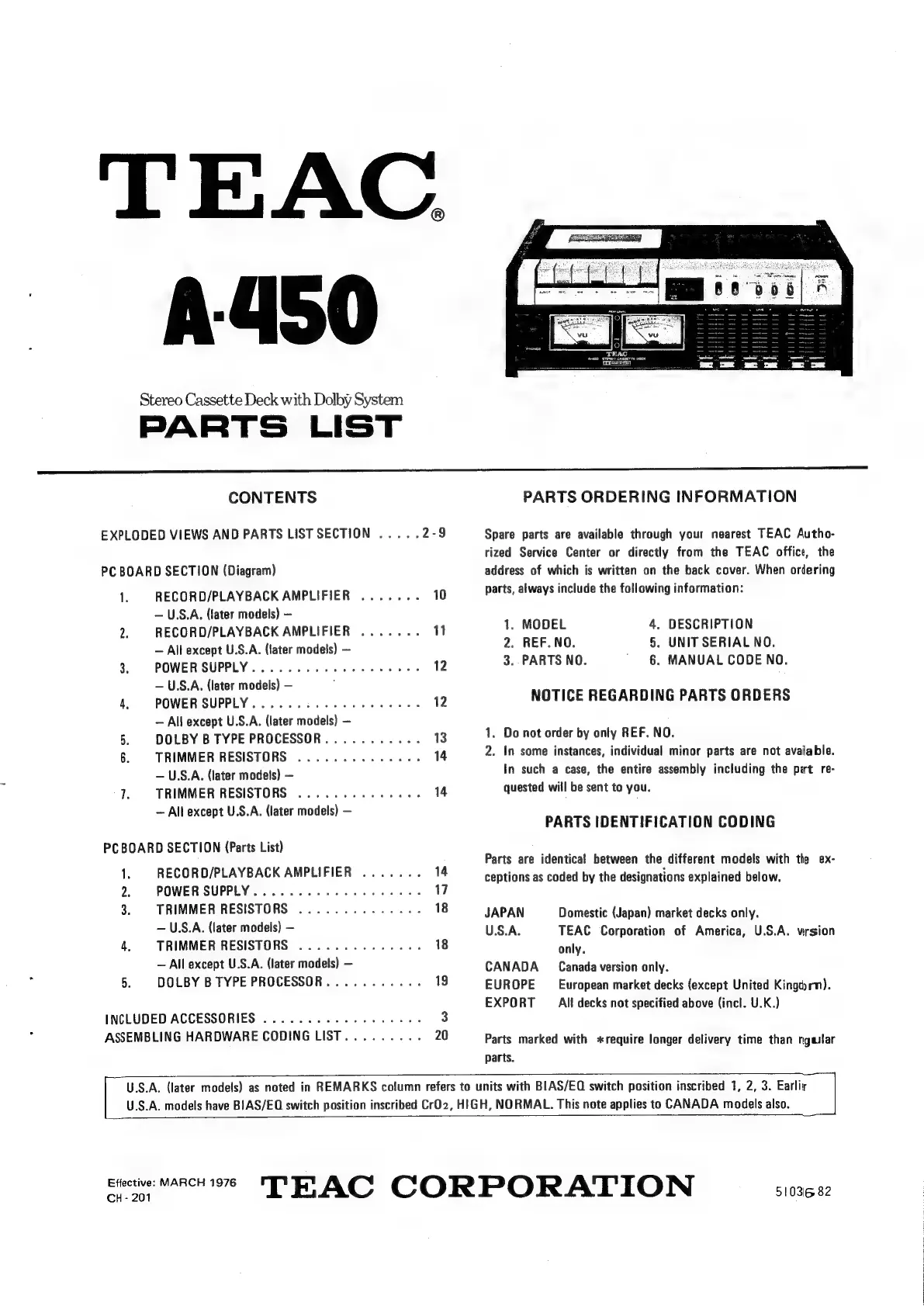

Teac A-450 - PARTS LIST; EXPLODED VIEWS AND PARTS LIST SECTION; PC BOARD SECTION (Diagram); PC BOARD SECTION (Parts List)

TEAC.
A-450
Stereo Cassette Deck with Dolby System
PARTS LIST
CONTENTS
EXPLODED VIEWS AND PARTS LISTSECTION ..... 2-9
PC BOARD SECTION (Diagram)
1. RECORD/PLAYBACK AMPLIFIER ....... 10
— U.S.A. (later models) —
2. RECORD/PLAYBACK AMPLIFIER ....... 1
— All except U.S.A. (later models) —
3. POWER SUPPLY........-.. 0200 e ees 12
— U.S.A. (later models) —
4, POWER SUPPLY........-.-. 00 ee ees 12
— All except U.S.A. (later models) —
5. DOLBY B TYPE PROCESSOR........... 13
6. TRIMMER RESISTORS .............. 14
— U.S.A. (later models) —
7. TRIMMER RESISTORS ...........-6.-. 14
— All except U.S.A. (later models) —
PCBOARD SECTION (Parts List)
1. RECORD/PLAYBACK AMPLIFIER ....... 14
2. POWER SUPPLY..........-2 0002 ee 7
3. TRIMMER RESISTORS .............. 18
— U.S.A. (later models) —
4, TRIMMER RESISTORS .............. 18
— All except U.S.A. (later models) —
5. DOLBY B TYPE PROCESSOR........... 19
INCLUDED ACCESSORIES .................. 3
ASSEMBLING HARDWARE CODING LIST......... 20
PARTS ORDERING INFORMATION
Spare parts are available through your nearest TEAC Autho-
rized Service Center or directly from the TEAC office, the
address of which is written on the back cover. When ordering
parts, always include the following information:
1. MODEL 4. DESCRIPTION
2. REF. NO. 5. UNIT SERIAL NO.
3. PARTS NO. 6. MANUAL CODE NO.
NOTICE REGARDING PARTS ORDERS
1. Do not order by only REF. NO.
2. In some instances, individual minor parts are not available.
In such a case, the entire assembly including the pat re-
quested wiil be sent to you.
PARTS IDENTIFICATION CODING
Parts are identical between the different models with the ex-
ceptions as coded by the designations explained below.
JAPAN Domestic (Japan) market decks only.
U.S.A. TEAC Corporation of America, U.S.A. wrsion
only.
CANADA — Canada version only.
EUROPE ~— European market decks (except United Kingdrn).
EXPORT All decks not specified above (incl. U.K.)
Parts marked with *require longer delivery time than ngular
parts.
U.S.A. (later models) as noted in REMARKS column refers to units with BIAS/EQ switch position inscribed 1, 2, 3. Earli¢
U.S.A. models have BIAS/EQ switch position inscribed CrO2, H1GH, NORMAL. This note applies to CANADA models also.
Ereewvemanch 1976 TD RAC CORPORATION 510316 82
