Teac A-450 - TRIMMER RESISTORS -U.S.A. (later models) -; TRIMMER RESISTORS -All except U.S.A. (later models) -; PC BOARD SECTION (Parts List)

14
6.
Q101/0201
Q102/0202
Q103/0203
Q104/0204
Q105/0205
Q106/0206
Q107/0207
Q108/Q208
Q109/0.209
0110/0210
D101/D201

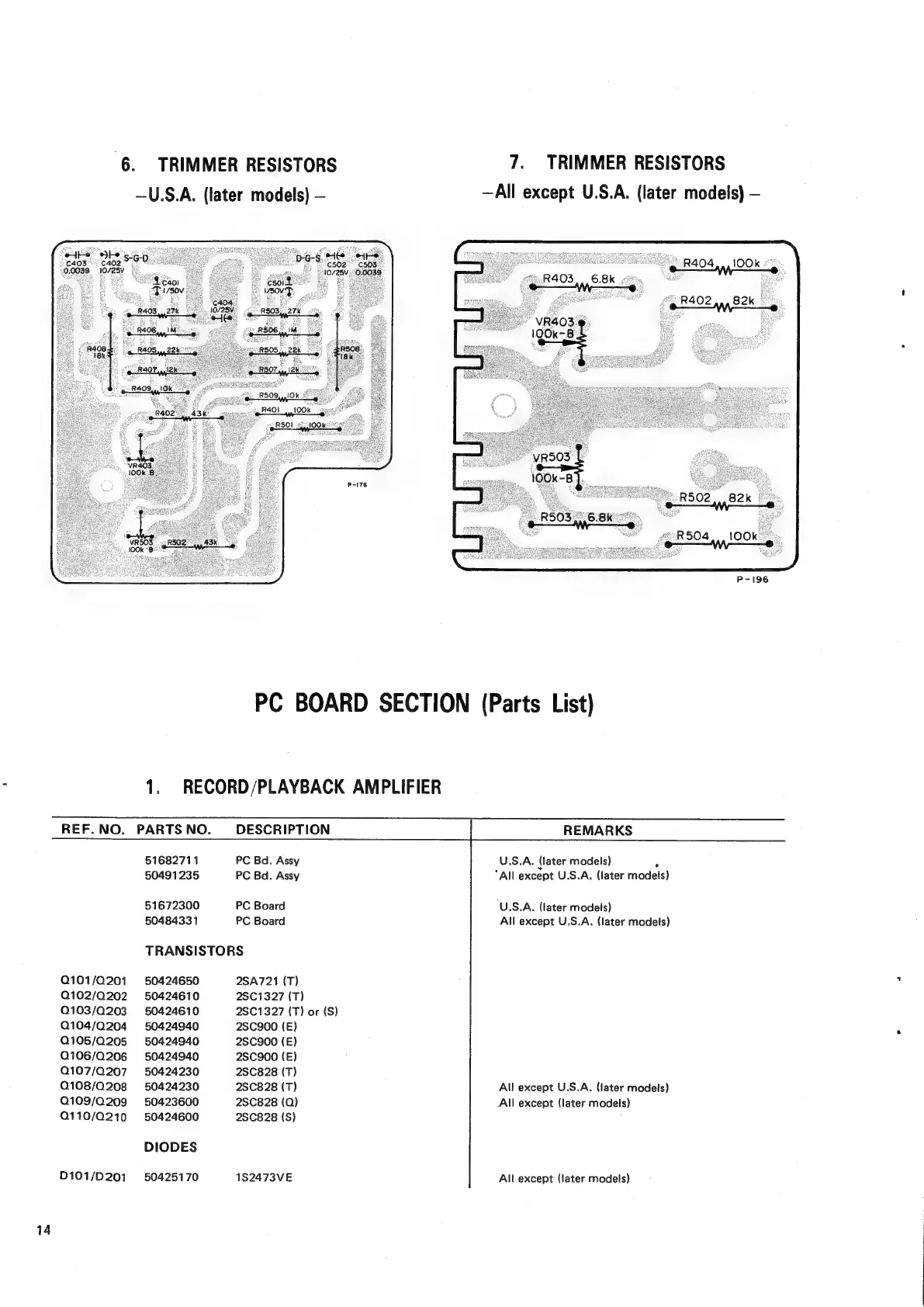

TRIMMER RESISTORS
—U.S.A. (later models) —
1. RECORD/PLAYBACK AMPLIFIER
REF.NO. PARTS NO.
51682711
50491235
51672300
50484331
7. TRIMMER RESISTORS
—All except U.S.A. (later models) —
9 R404, 4 100k ©
82k
P-196
PC BOARD SECTION (Parts List)
DESCRIPTION
PC Bd. Assy
PC Bd. Assy
PC Board
PC Board
TRANSISTORS
50424650
50424610
50424610
50424940
50424940
50424940
50424230
50424230
50423600
50424600
DIODES
50425170
2SA721 (T)
28C1327 (T)
2SC1327 (T) or (S)
2SC900 (E)
2SC900 (E)
2SC900 (E)
2SC828 (T)
2SC828 (T)
2SC828 (Q)
2SC828 (S)
182473VE
REMARKS
U.S.A. (later models)
‘All except U.S.A. (later models)
U.S.A. (later models)
All except U.S.A. (later models)
All except U.S.A. (later models)
All except (later models)
All except (later models)
