Teac A-450 - REEL TABLE

Apply
a
drop
of
the
proper
oil
in
the
same
way
as
above
to
the
innermost
area
of
capstan
shaft
(next
to
the
Flywheel).
Apply
a
film
of
light
grease
to
the
well
of
the
Flywheel
Bearing
Plate.

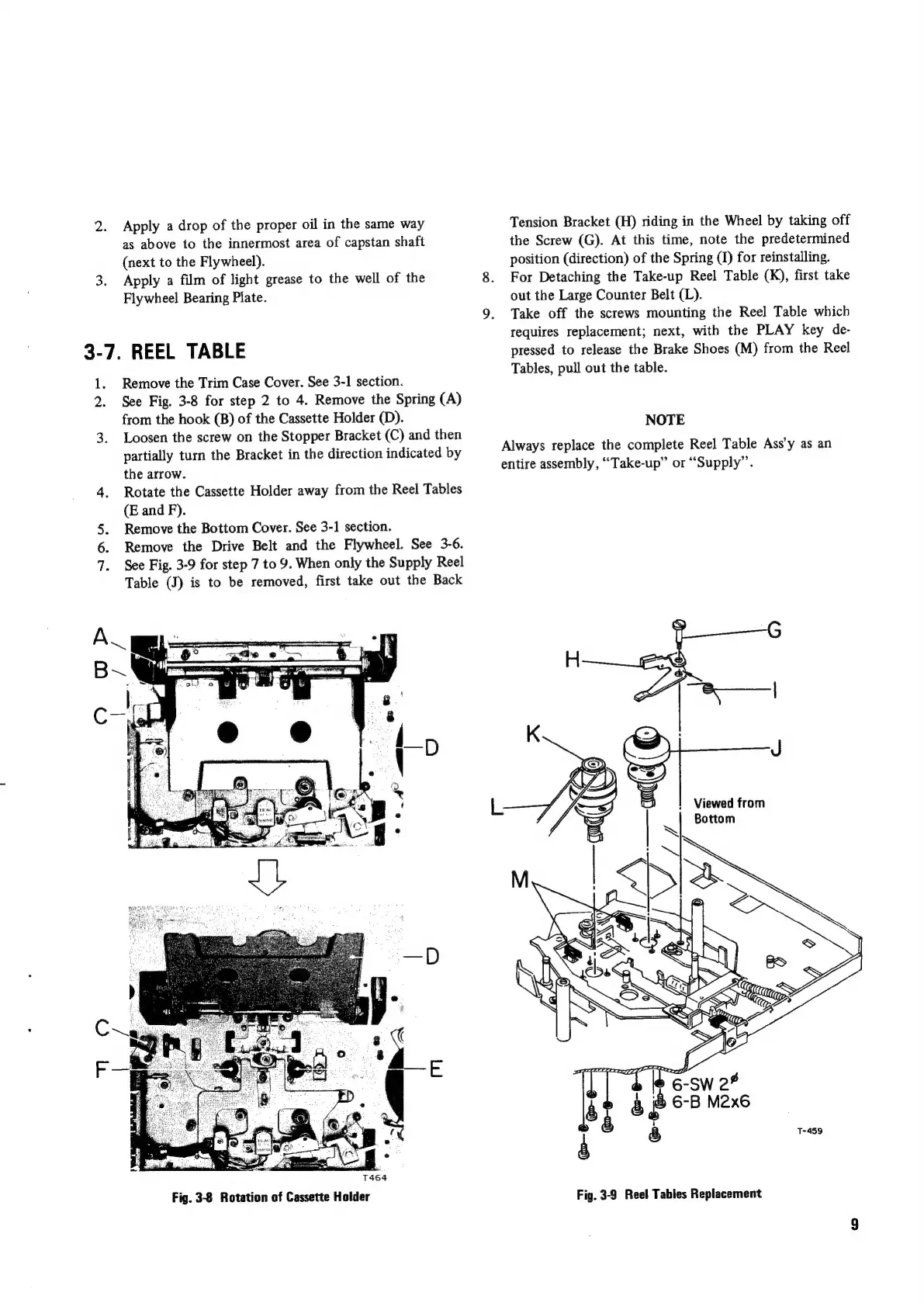

3-7. REEL TABLE
1.
Remove the Trim Case Cover. See 3-1 section.
See
Fig.
3-8
for
step
2
to
4.
Remove
the
Spring
(A)
from
the
hook
(B)
of
the
Cassette
Holder
(D).
Loosen
the
screw
on
the
Stopper
Bracket
(C)
and
then
partially
turn
the
Bracket
in
the
direction
indicated
by
the
arrow.
Rotate
the
Cassette
Holder
away
from
the
Reel
Tables
(E
and
F).
Remove the Bottom Cover. See 3-1 section.
Remove
the
Drive
Belt
and
the
Flywheel.
See
3-6.
See
Fig.
3-9
for
step
7
to
9.
When
only
the
Supply
Reel
Table
(J)
is
to
be
removed,
first
take
out
the
Back
T464
Fig. 3-8 Rotation of Cassette Holder
Tension Bracket (H) riding in the Wheel by taking off
the Screw (G). At this time, note the predetermined
position (direction) of the Spring (I) for reinstalling.
For Detaching the Take-up Reel Table (K), first take
out the Large Counter Belt (L).
Take off the screws mounting the Reel Table which
requires replacement; next, with the PLAY key de-
pressed to release the Brake Shoes (M) from the Reel
Tables, pull out the table.
NOTE
Always
replace
the
complete
Reel
Table
Ass’y
as
an
entire assembly, ““Take-up” or “Supply”.
! Viewed from
Bottom
Ce we
Sy
bp
T-459
Fig. 3-9 Reel Tables Replacement
