6

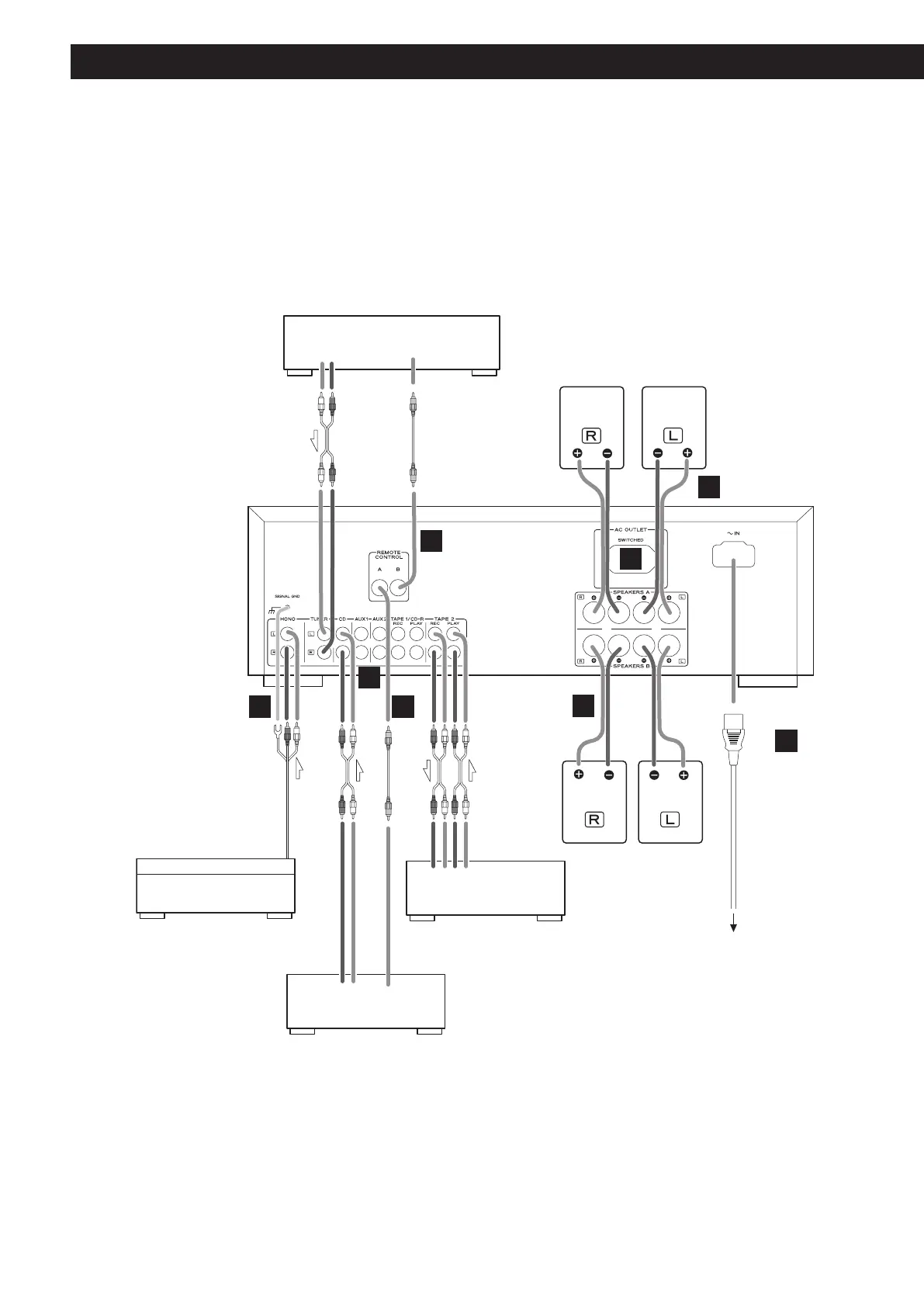

Connection
CAUTION:
< Switch off the power to all equipment before making connections.
< Read the instructions of each component you intend to use with this unit.
< Be sure to insert each plug securely. To prevent hum and noise, avoid bundling the
signal interconnection cables together with the AC power cord or speaker cables.
PHONO q Turntable
TUNER q Tuner (T-R650/T-R650DAB)
CD q CD player (CD-P650)
AUX 1/AUX 2 q Audio component, etc.
TAPE1/CD-R q Cassette tape deck, CD recorder, etc.
TAPE2 q Cassette tape deck
AC wall socket
RL
LR
RL
RL
TURNTABLE TAPE
Speakers B
TUNER (T-R650/T-R650DAB)
A-R650MK"
LINE
OUT
LINE
OUT
LINE
OUT
LINE
IN
REMOTE
CONTROL
REMOTE
CONTROL
Speakers A
CD Player (CD-P650)
D
E
E
F
C
C
B
A
To Next Page
