Teac AG-620 - Page 18

‘Using a Cassette Deck without a REMOTE
SENSOR Window
TAPE CD TAPE PAUSE
REMOTE CONTROL,
COUT)
CD Player with
Remote Sensor
aaa
Cassette Deck with Cassette Deck with
Non-logic Control Full-logic Control
(No Remote Sensor) (No Remote Sensor)
CD Player's
Remote Control
Unit
UR-401
Remote Control Unit

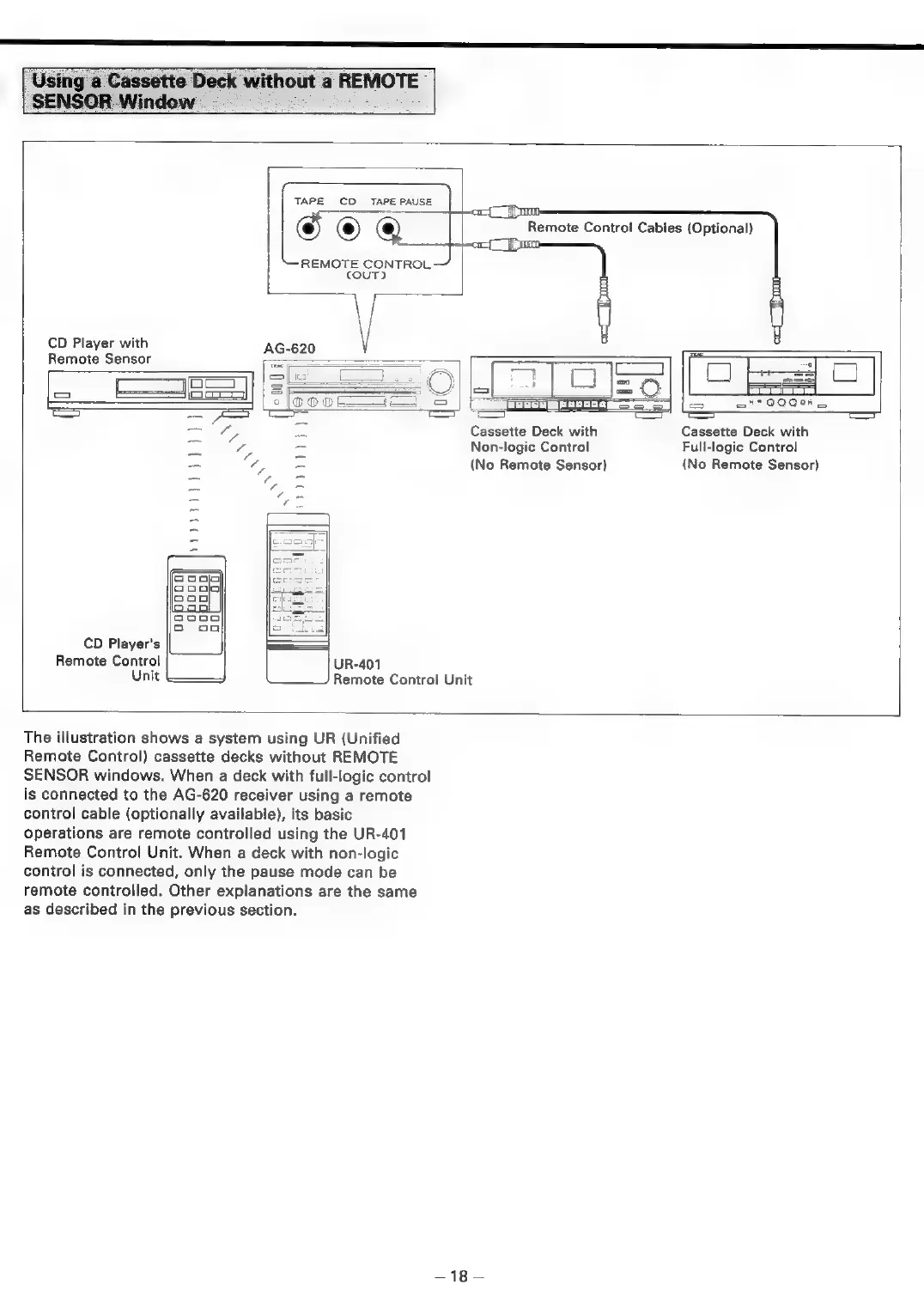

The illustration shows a system using UR (Unified
Remote Control) cassette decks without REMOTE
SENSOR windows. When a deck with full-logic control
is connected to the AG-620 receiver using a remote
control cable (optionally available), its basic
operations are remote controlled using the UR-401
Remote Control Unit. When a deck with non-logic
control is connected, only the pause mode can be
remote controlled. Other explanations are the same
as described in the previous section.
— ii
