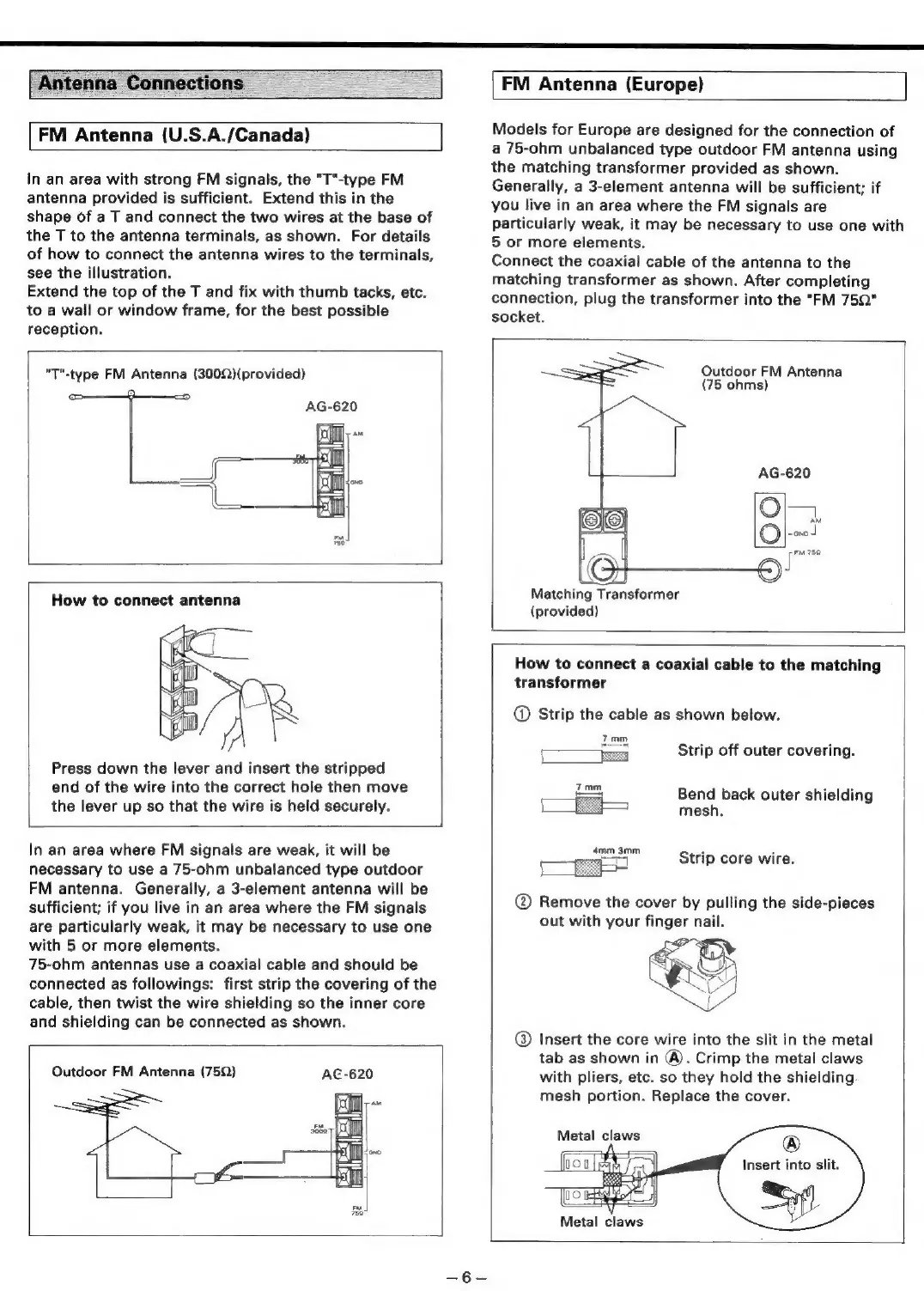

Teac AG-620 - Page 6

ttenna Connections
FM Antenna (Europe)
FM Antenna (U.S.A./Canada)
In an area with strong FM signals, the "T"-type FM
antenna provided is sufficient. Extend this in the
shape of a T and connect the two wires at the base of
the T to the antenna terminals, as shown. For details
of how to connect the antenna wires to the terminals,
see the illustration.
Extend the top of the T and fix with thumb tacks, etc.
to a wall or window frame, for the best possible
reception.
"T"-type FM Antenna (3002)(provided)
How to connect antenna
Press down the lever and insert the stripped
end of the wire into the correct hole then move
the lever up so that the wire is held securely.
In an area where FM signals are weak, it will be
necessary to use a 75-ohm unbalanced type outdoor
FM antenna. Generally, a 3-element antenna will be
sufficient; if you live in an area where the FM signals
are particularly weak, it may be necessary to use one
with 5 or more elements.
75-ohm antennas use a coaxial cable and should be
connected as followings: first strip the covering of the
cable, then twist the wire shielding so the inner core
and shielding can be connected as shown.
Outdoor FM Antenna (759)
Models for Europe are designed for the connection of
a 75-ohm unbalanced type outdoor FM antenna using
the matching transformer provided as shown.
Generally, a 3-element antenna will be sufficient; if
you live in an area where the FM signals are
particularly weak, it may be necessary to use one with
5 or more elements.
Connect the coaxial cable of the antenna to the
matching transformer as shown. After completing
connection, plug the transformer into the "FM 75Q"
socket.
Outdoor FM Antenna
(75 ohms)
AG-620
L LJ
Matching Transformer
(provided)
How to connect a coaxial cable to the matching
transformer
@® Strip the cable as shown below.
Strip off outer covering.
Bend back outer shielding
mesh.
Strip core wire.
© Insert the core wire into the slit in the metal
tab as shown in @). Crimp the metal claws
with pliers, etc. so they hold the shielding
mesh portion. Replace the cover.
®
Insert into slit.
Metal claws
