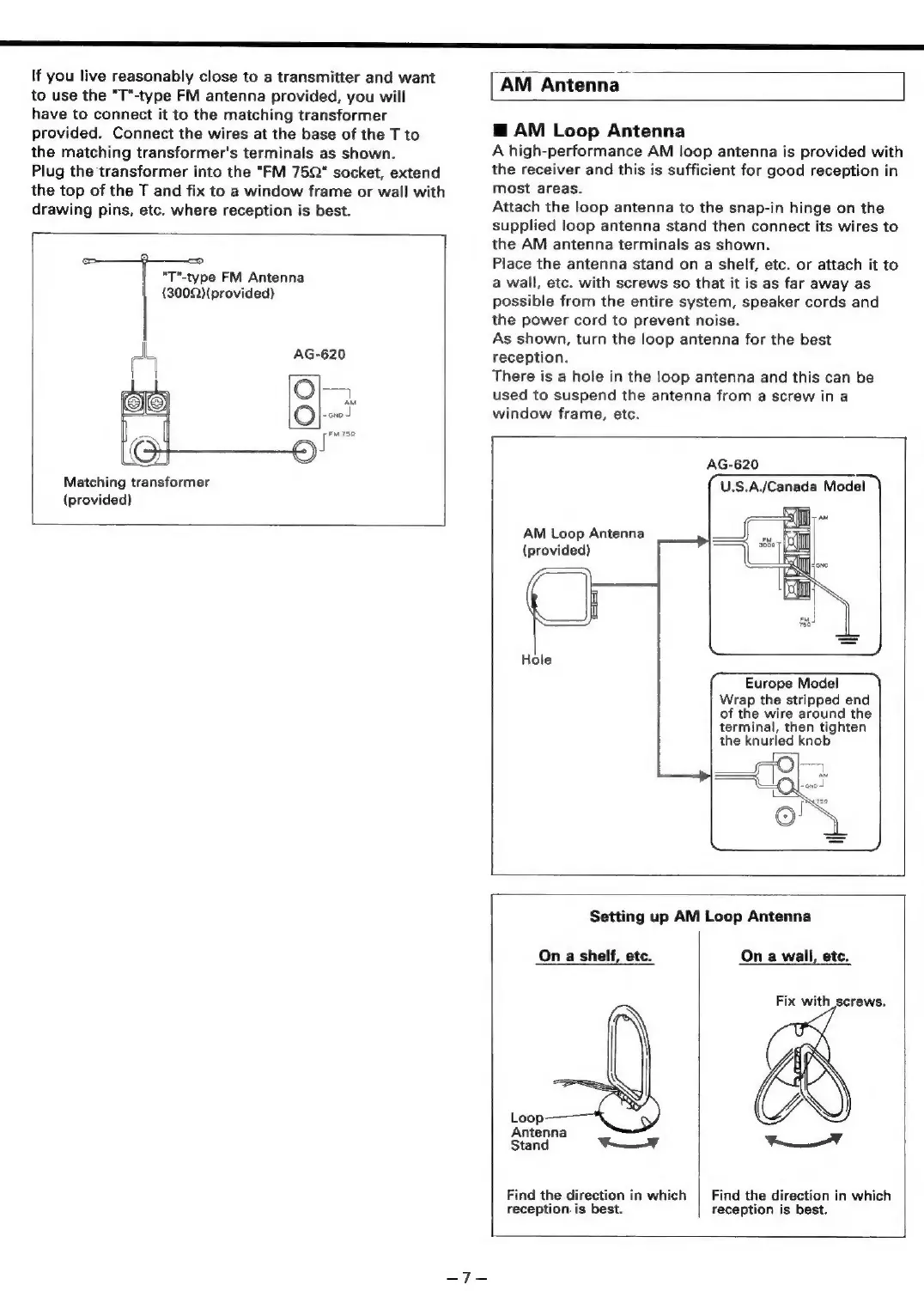

If you live reasonably close to a transmitter and want
to use the "T“-type FM antenna provided, you will
have to connect it to the matching transformer
provided. Connect the wires at the base of the T to
the matching transformer's terminals as shown.
Plug the ‘transformer into the "FM 75Q" socket, extend
the top of the T and fix to a window frame or wall with
drawing pins, etc. where reception is best.
“T"-type FM Antenna
(300Q)(provided)
AG-620
O
O
€!
-onot
FM 750
Matching transformer
(provided)
AM Antenna
@ AM Loop Antenna
A high-performance AM loop antenna is provided with
the receiver and this is sufficient for good reception in
most areas.
Attach the loop antenna to the snap-in hinge on the
supplied loop antenna stand then connect its wires to
the AM antenna terminals as shown.
Place the antenna stand on a shelf, etc. or attach it to
a wall, etc. with screws so that it is as far away as
possible from the entire system, speaker cords and
the power cord to prevent noise.
As shown, turn the loop antenna for the best
reception.
There is a hole in the loop antenna and this can be
used to suspend the antenna from a screw in a
window frame, etc.
AG-620
U.S.A./Canada Model
AM Loop Antenna
(provided)
Hole
Europe Model
Wrap the stripped end
of the wire around the
terminal, then tighten
the knurled knob
Setting up AM Loop Antenna
On a shelf, etc. On a wall, etc.
Fix with screws.
4f
Loop
Antenna
Stand wr \ el
Find the direction in which
reception is best.
Find the direction in which
reception. is best.
