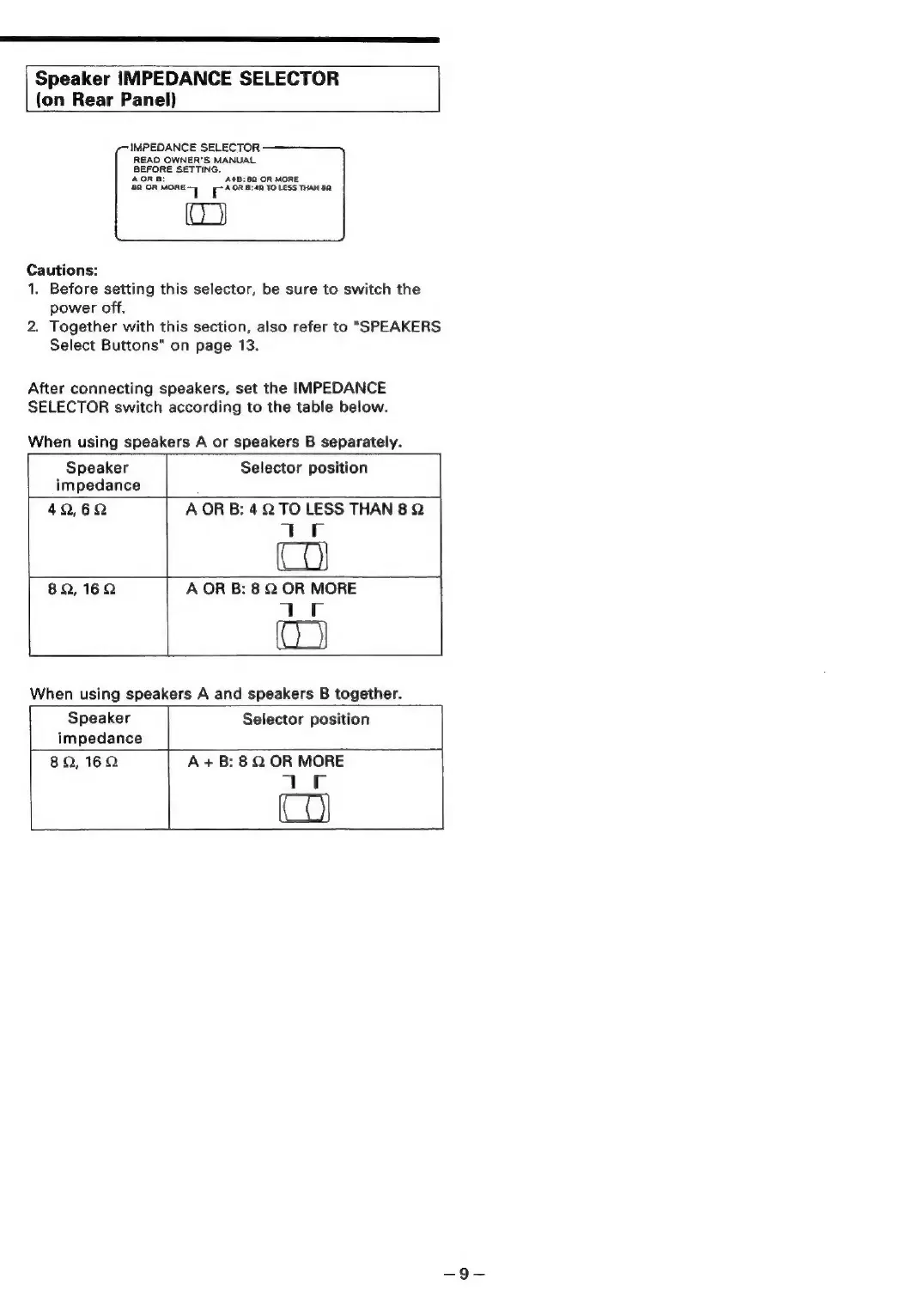

Speaker IMPEDANCE SELECTOR
(on Rear Panel)
IMPEDANCE SELECTOR
READ OWNER'S MANUAL
BEFORE SETTING.
AOR B: A+B:89 OR MORE
SRORMORE—| [-AORB:40 TO LESS THAN 8a
(om)
Cautions:
1. Before setting this selector, be sure to switch the
power off.
2. Together with this section, also refer to "SPEAKERS
Select Buttons" on page 13.
After connecting speakers, set the IMPEDANCE
SELECTOR switch according to the table below.
When using speakers A or speakers B separately.
Speaker Selector position
impedance
42,62 A OR B: 4Q TO LESS THAN 8 Q
Te
82,162 A OR B: 8 Q OR MORE
or
(om)
When using speakers A and speakers B together.
Speaker Selector position
impedance
82,162 A+B: 8 Q OR MORE
Te
CO)
