Teac AG-D9260 - Alignment Procedures; Tuning Frequency Range Adjustments; AM Tracking Adjustment; FM-RF Adjustment

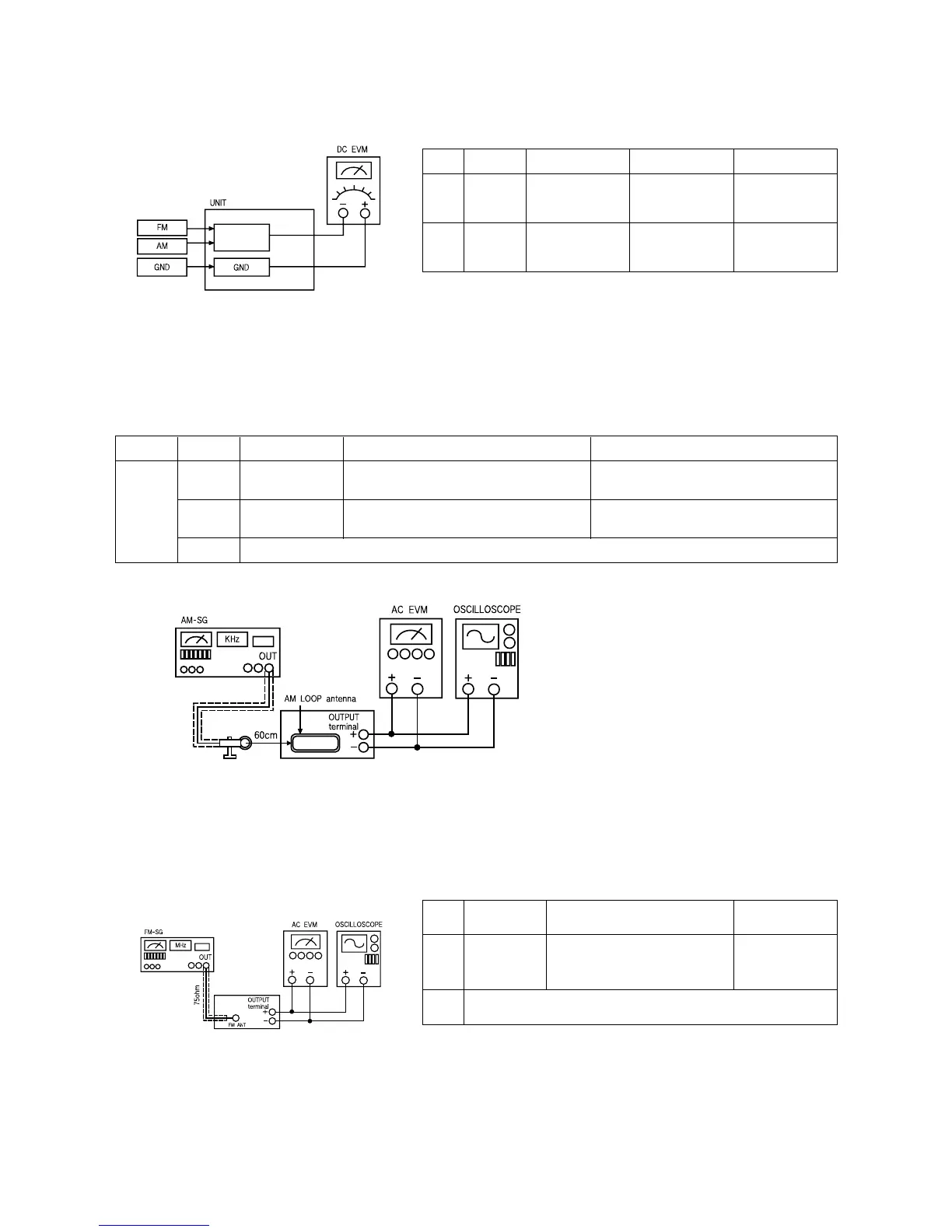

1.TUNING FREQUENCY RANGE ADJUSTMENTS
(FM) DC VOLTMETER ................ CONNECT TO TEST POINT J208 and GND
NO. Band Frequency Adjust for Adjustment
1 FM 87.50MHz 1.6V L7
2 AM 530 kHz 1V L105
[US/C] [530 kHz] [1V] [L105]
2.AM TRACKING ADJUSTMENT
Signal Generator........................ Connects to the AM ANT. Coil through the loop antenna.
Adjust for the indication of VTVM of the wave form of scope to be maximum.
BAND Step Frequency Adjust for Adjustment
1 610 kHz Maximum sensitivity T102, L104
[US/C] [610 kHz] Maximum sensitivity T102, L104
2 1510 kHz Maximum sensitivity CT10
[US/C] [1510 kHz] Maximum sensitivity CT10
3 Repeat steps 1 and 2 several times.
AM
J208
3.FM-RF ADJUSTMENT
Signal Generator........................ Connect to FM ANT JACK (FM IN) through the dummy.
NO. Frequency Adjust for Adjustment
1 90.10MHz Maximum Sensitivity L3, L5, L6
2 Repeat step 1 several times.
