Teac AG-D9260 - Alignment Procedures (cont.); FM Mono Distortion Adjustment; FM;AM Auto Stop Level Adjustment

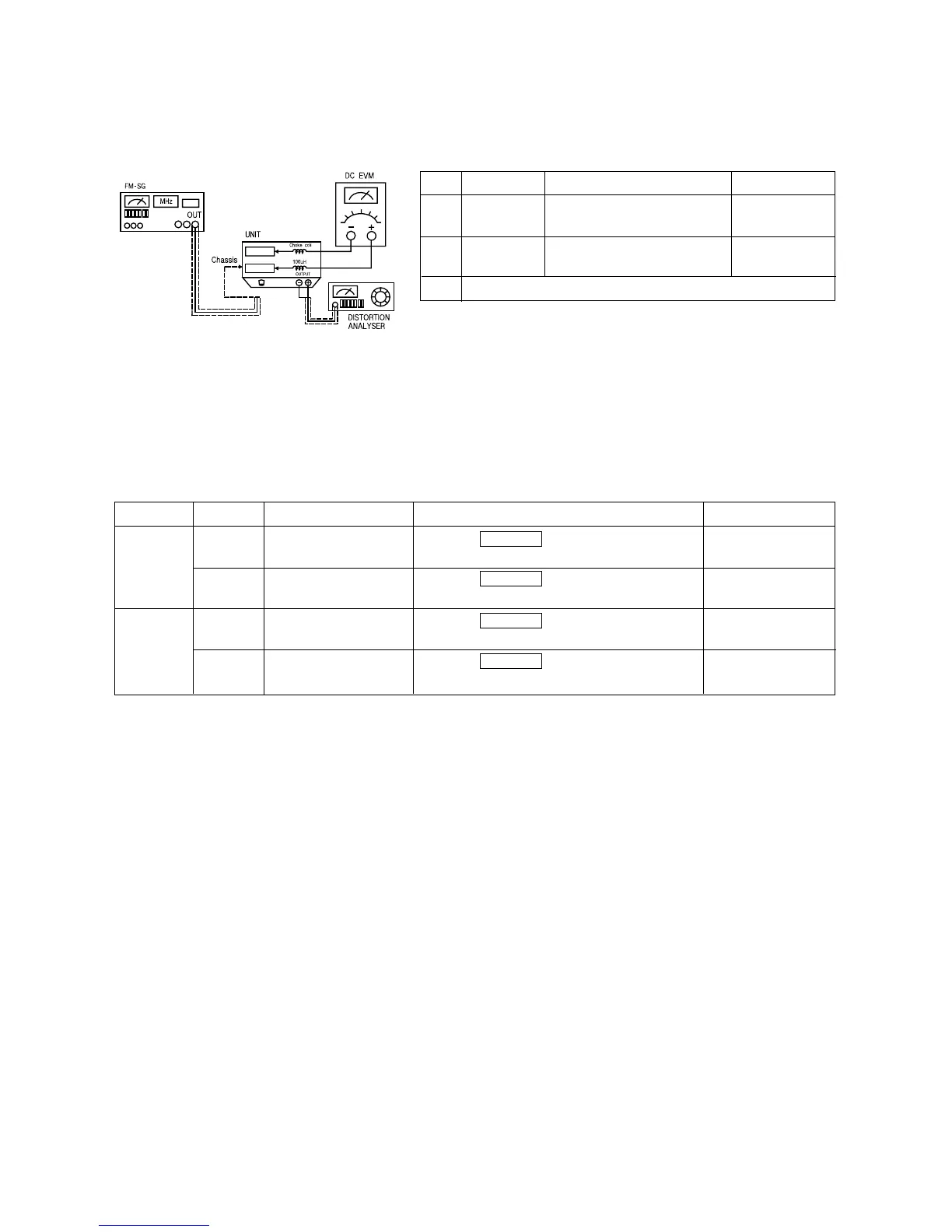

4.FM MONO DISTORTION ADJUSTMENT
DC VOLT METER........................Connect to J205 (-), J207 (+) through the chock coil (100uH).
Signal Generator........................Connect to FM ANT Jack (FM IN) through the dummy.
Distortion Meter.........................Connect to the output.
NO. Frequency Adjust for Adjustment
1 100.10MHz
2 100.10MHz
3 Repeat steps 1 and 2 several times.
5.FM/AM AUTO STOP LEVEL ADJUSTMENT
FM Signal Generator..................Connect to FM ANT Jack (FM IN) through the dummy.
AM Signal Generator.................Connect to AM ANT. Coil through the Loop antenna.
J205
J207
DC Voltmeter 0V
Minimum T.H.D
7
DC Voltmeter 0V
T101
T101
BAND Step Signal Generator Adjust for Adjustment
1 990KHz 82dB Display ON VR12
[US/C] [990KHz]
2 990KHz 81dB Display OFF VR12
[US/C] [990KHz]
1 100.1MHz 32dB Display ON VR13
2 100.1MHz 31dB Display OFF VR13
TUNED
TUNED
TUNED
TUNED
AM
FM
