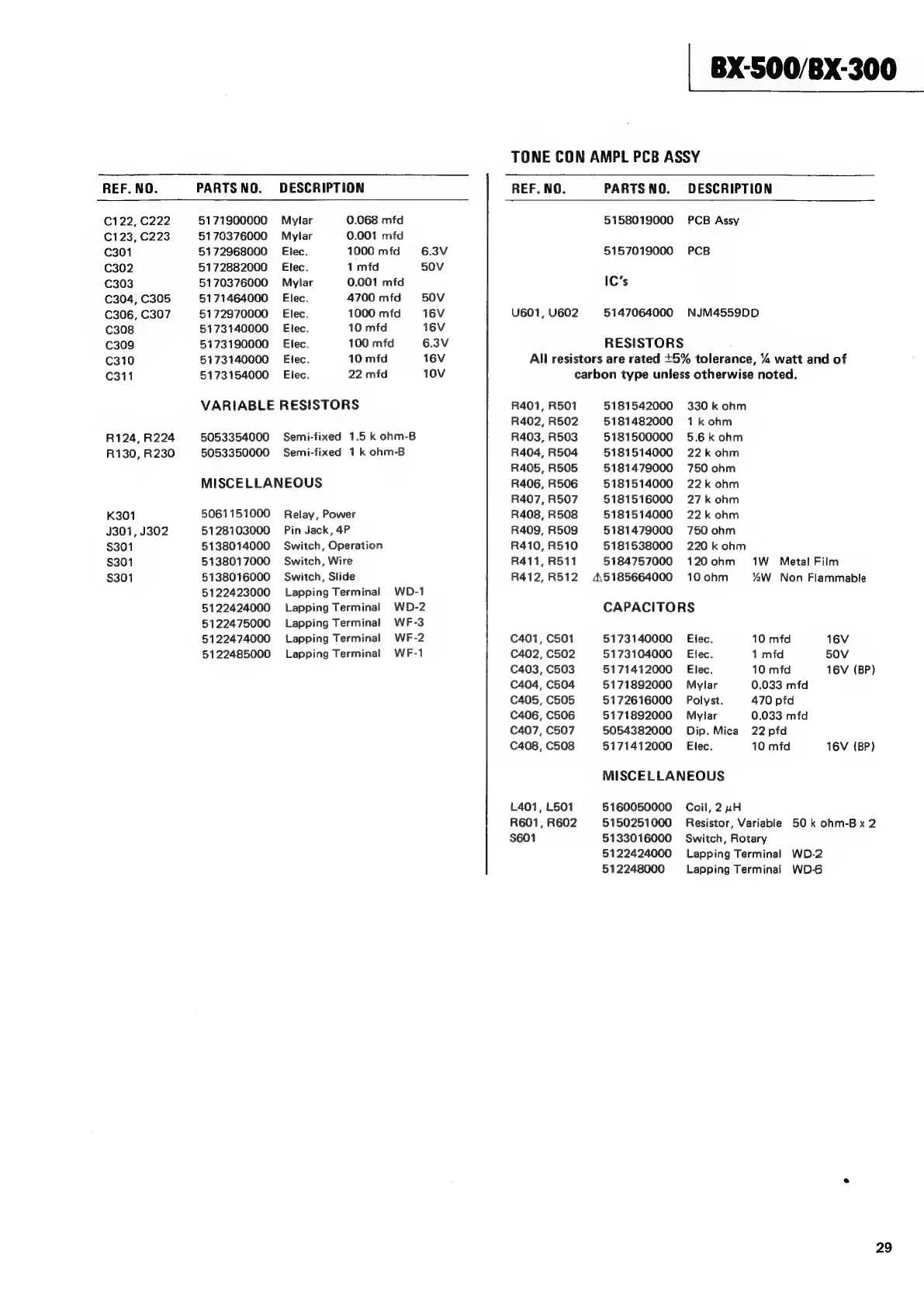

Teac BX-300 - TONE CON AMPL PCB ASSY (Parts List)

BX-500/BX-300
TONE CON AMPL PCB ASSY
REF. NO. PARTS NO. DESCRIPTION
DESCRIPTION
Mylar 0.068 mfd
Mylar 0.001 mfd
Elec. 1000 mfd 6.3V
Elec. 1 mfd 50V
Mylar 0.001 mfd
Elec. 4700 mfd 50V
Elec. 1000 mfd 16V
Elec. 10 mfd 16V
Elec. 100 mfd 6.3V
Elec. 10 mfd 16V
Elec. 22 mfd 10V
VARIABLE RESISTORS
Semi-fixed 1.5 k ohm-B
Semi-fixed 1k ohm-B
MISCELLANEOUS
REF. NO. PARTS NO.
C122, C222 5171900000
C123, C223 5170376000
C301 5172968000
C302 5172882000
C303 5170376000
C304, C305 5171464000
C306, C307 5172970000
C308 5173140000
C309 5173190000
C310 5173140000
C311 5173154000
R124, R224 5053354000
R130, R230 5053350000
K301 5061151000
J301, J302 5128103000
$301 5138014000
$301 5138017000
$301 5138016000
5122423000
5122424000
5122475000
5122474000
5122485000
Relay, Power
Pin Jack, 4P
Switch, Operation
Switch, Wire
Switch, Slide
Lapping Terminal WD-1
Lapping Terminal WD-2
Lapping Terminal WF-3
Lapping Terminal WF-2
Lapping Terminal WF-1
5158019000 PCB Assy
5157019000 PCB
IC’s
U601, U602 5147064000 NJM4559DD
RESISTORS
All resistors are rated +5% tolerance, 4 watt and of
carbon type unless otherwise noted.
R401, R501 5181542000 330k ohm
R402, R502 5181482000 1k ohm
R403, R503 5181500000 5.6k ohm
R404, R504 5181514000 22k ohm
R405, R505 5181479000 750 ohm
R406, R506 5181514000 22k ohm
R407, R507 5181516000 27k ohm
R408, R508 5181514000 22k ohm
R409, R509 5181479000 750 ohm
R410, R510 5181538000 220k ohm
R411, R511 5184757000 1200hm 1W Metal Film
R412,R512 A5185664000 100hm %W Non Flammable
CAPACITORS
C401, C501 5173140000 Elec. 10 mfd 16V
C402, C502 5173104000 Elec. 1 mfd 50V
C403, C503 5171412000 Elec. 10 mfd 16V (BP)
C404, C504 5171892000 Mylar 0,033 mfd
C405, C505 5172616000 Polyst. 470 pfd
C406, C506 5171892000 Mylar 0.033 mfd
C407, C507 5054382000 Dip. Mica 22 pfd
C408, C508 5171412000 Elec. 10 mfd 16V (BP)
MISCELLANEOUS
L401, L501 5160050000 Coil, 2 uH
R601, R602 5150251000 Resistor, Variable 50k ohm-B x 2
$601 5133016000 Switch, Rotary
5122424000 Lapping Terminal WD-2
512248000 Lapping Terminal WD-6
