BX-500/BX-300

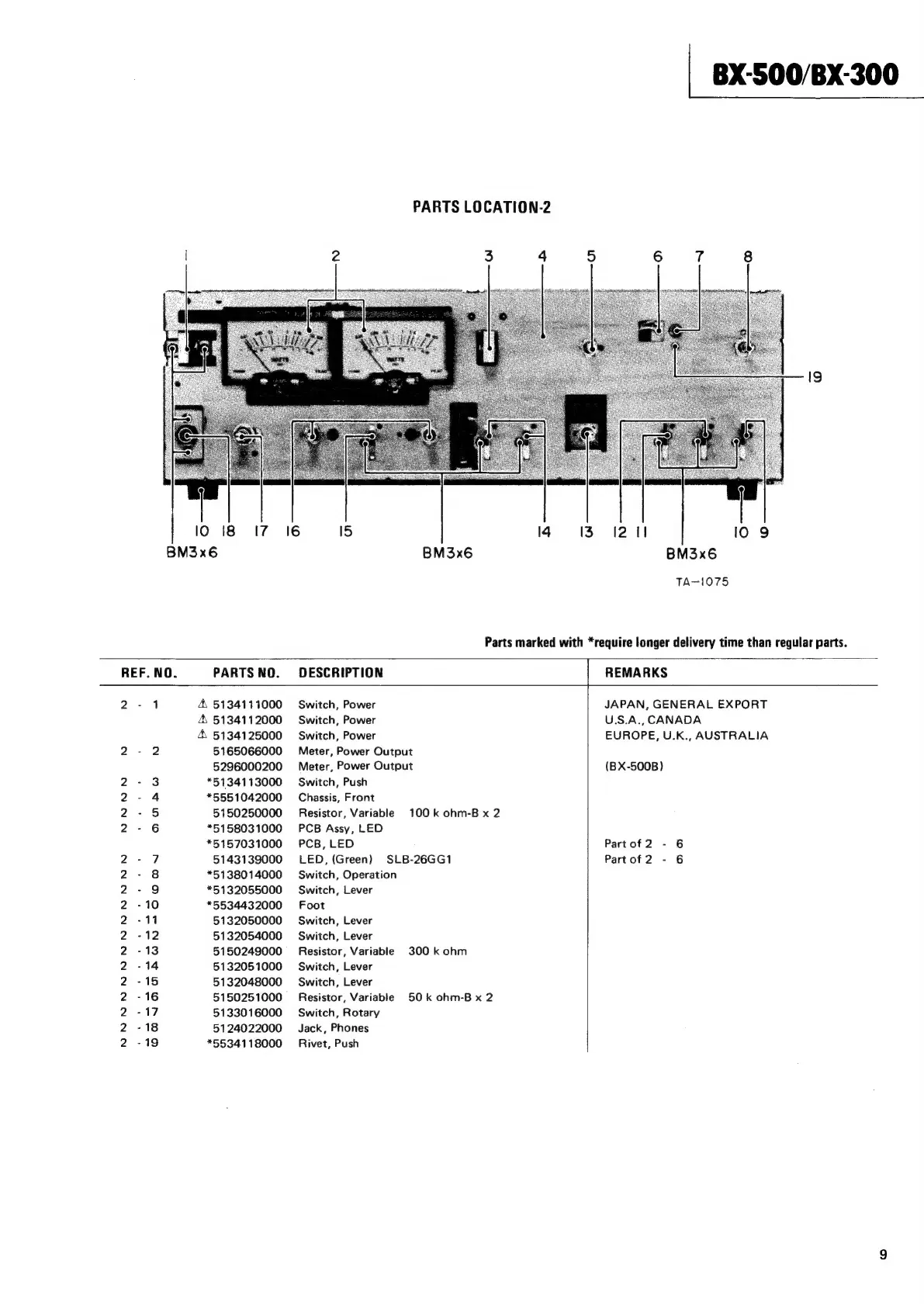

PARTS LOCATION-2
10 18 (7 16 15 4 13) 12 Io 9
BM3x6 BM3x6 BM3x6
TA-1075
Parts marked with *require longer delivery time than regular parts.
REF. NO. PARTS NO. DESCRIPTION REMARKS
2-1 4 5134111000 Switch, Power JAPAN, GENERAL EXPORT
4 5134112000 Switch, Power U.S.A., CANADA
4. 5134125000 Switch, Power EUROPE, U.K., AUSTRALIA
2-2 5165066000 Meter, Power Output
5296000200 Meter, Power Output (BX-500B)
2-3 *5134113000 Switch, Push
2-4 *5551042000 Chassis, Front
2-5 5150250000 Resistor, Variable 100k ohm-B x 2
2-6 *5158031000 PCB Assy, LED
*5157031000 PCB,LED Partof2 - 6
2-7 5143139000 LED,(Green) SLB-26GG1 Partof2 - 6
2-8 *5138014000 Switch, Operation
2-9 *5132055000 Switch, Lever
2 -10 *5534432000 Foot
2-11 5132050000 Switch, Lever
2 -12 5132054000 Switch, Lever
2 -13 5150249000 _ Resistor, Variable 300 k ohm
2 -14 5132051000 Switch, Lever
2 -15 5132048000 Switch, Lever
2 -16 5150251000 _ Resistor, Variable 50k ohm-B x 2
2-17 5133016000 Switch, Rotary
2 -18 5124022000 Jack, Phones
2 -19 *5534118000 Rivet, Push
