Teac BX-330 - 3 PARTS LOCATION; 3-1 BX-550 Component Identification; 3-2 BX-330 Component Identification

BX-550/BX-330

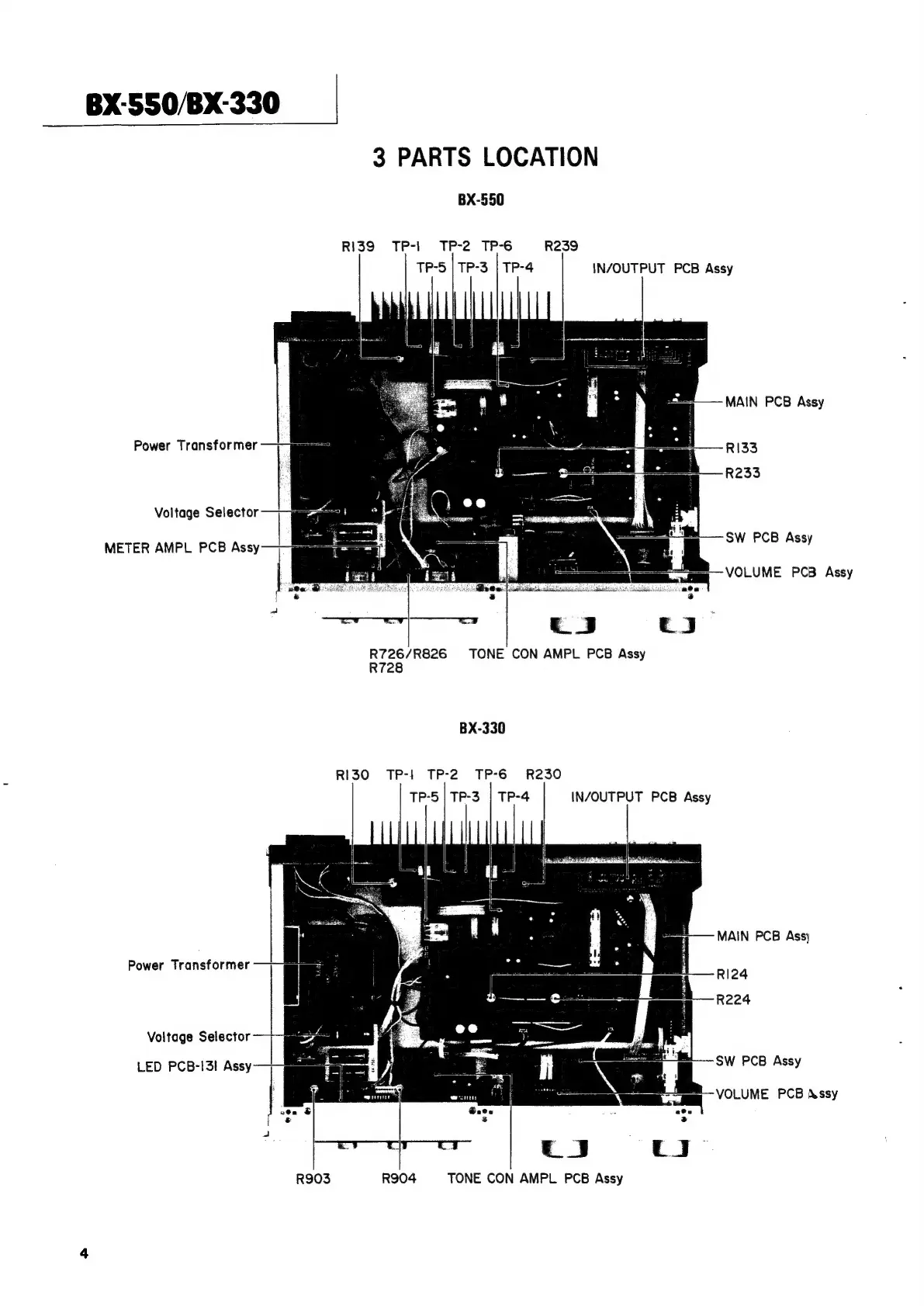

3 PARTS LOCATION
BX-550
R139 TP-| TP-2 TP-6 R239
TP-5 | TP-3 | TP-4
IN/OUTPUT PCB Assy
MAIN PCB Assy
Power Transformer R133
R233
Voltage Selector
SW PCB Assy
METER AMPL PCB Assy
VOLUME PCB Assy
ee 3 a
R726/R826 TONE CON AMPL PCB Assy
R728
BX-330
RI3O TP-1 TP-2 TP-G6 R230
TP-5 | TP-3 | TP-4 IN/OUTPUT PCB Assy
MAIN PCB Assy
Power
Transformer
Sia
R224
Voltage Selector
SW PCB Assy
LED PCB-I3! Assy
VOLUME PCB Assy
R903 R904 TONE CON AMPL PCB Assy
