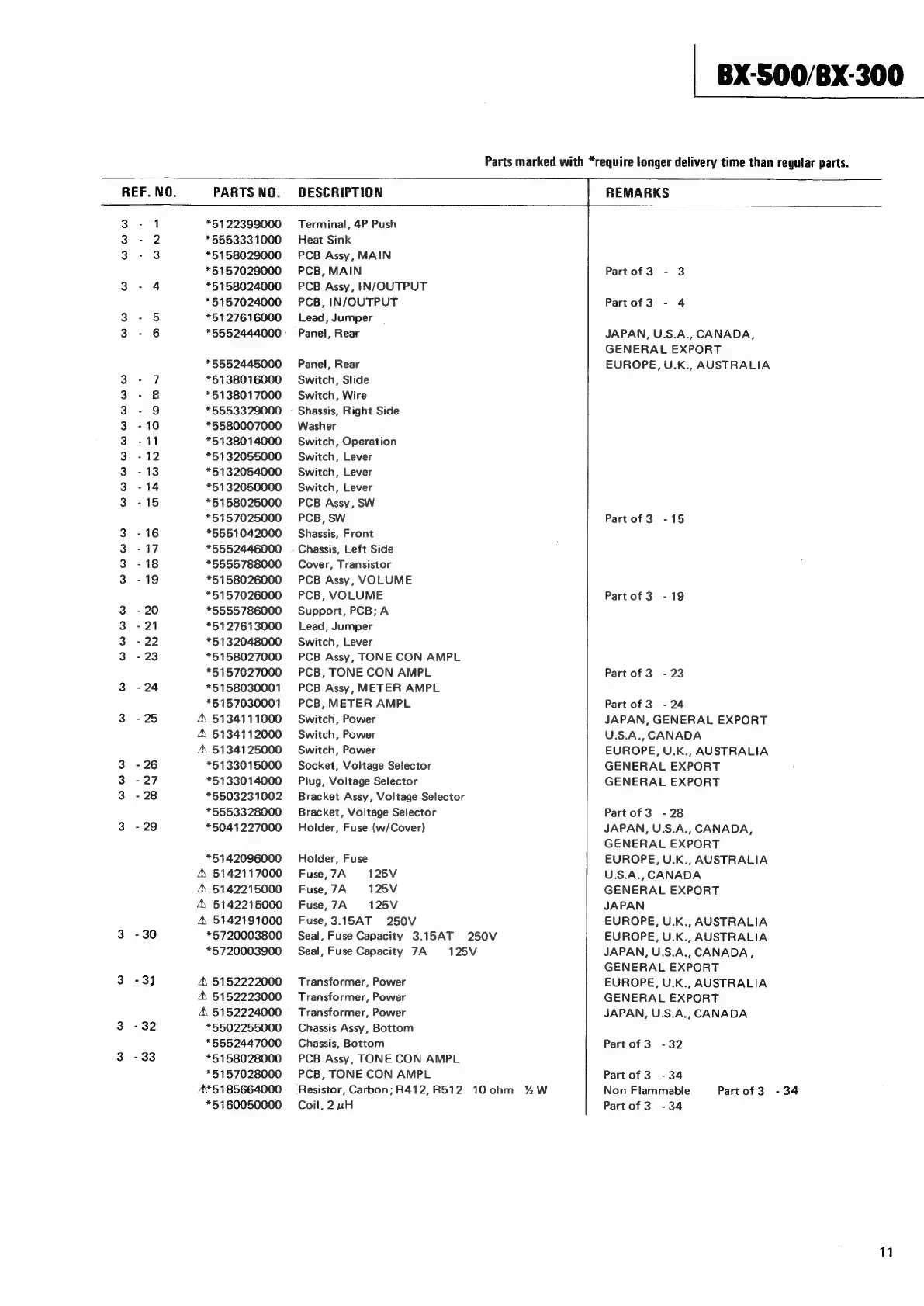

BX-500/BX-300
Parts marked with *require longer delivery time than regular parts.
REF. NO. PARTS NO. DESCRIPTION | REMARKS
3 - 1 *5122399000 Terminal, 4P Push
3-2 *5553331000 Heat Sink
3 .- 3 *5158029000 PCB Assy, MAIN
*5157029000 PCB, MAIN Partof3 - 3
3-4 *5158024000 PCB Assy, IN/OUTPUT
*5157024000 PCB, IN/OUTPUT Partof3 - 4
3. - 5 *5127616000 Lead, Jumper
3 - 6 *5552444000 _=— Panel, Rear JAPAN, U.S.A., CANADA,
GENERAL EXPORT
*5552445000_=—s— Panel, Rear EUROPE, U.K., AUSTRALIA
3 - 7 *5138016000 Switch, Slide
3 - 8 *5138017000 Switch, Wire
3-9 *5553329000 = Shassis, Right Side
3 -10 *5580007000 Washer
3-11 *5138014000 Switch, Operation
3-12 *5132055000 Switch, Lever
3-13 *5132054000 Switch, Lever
3-14 *5132050000 Switch, Lever
3 -15 *5158025000 PCB Assy, SW
*5157025000 PCB, SW Partof3 -15
3-16 *5551042000 = Shassis, Front
3-17 *5552446000_ = Chassis, Left Side
3 -18 *5555788000 Cover, Transistor
3-19 *5158026000 PCB Assy, VOLUME
*56157026000 PCB, VOLUME Partof3 -19
3 -20 *5555786000 Support, PCB; A
3-21 *5127613000 Lead, Jumper
3 -22 *5132048000 Switch, Lever
3 - 23 *5158027000 PCB Assy, TONE CON AMPL
*5157027000 PCB, TONE CON AMPL Part of 3 - 23
3-24 *5158030001 PCB Assy, METER AMPL
*5157030001 PCB, METER AMPL Part of 3 - 24
3-25 4 5134111000 Switch, Power JAPAN, GENERAL EXPORT
A 5134112000 Switch, Power U.S.A., CANADA
A 5134125000 Switch, Power EUROPE, U.K., AUSTRALIA
3 - 26 *5§133015000 Socket, Voltage Selector GENERAL EXPORT
3-27 *5133014000 Plug, Voltage Selector GENERAL EXPORT
3 - 28 *5503231002 Bracket Assy, Voltage Selector
*5553328000 Bracket, Voltage Selector Partof3 -28
3 -29 *5041227000 Holder, Fuse (w/Cover) JAPAN, U.S.A., CANADA,
GENERAL EXPORT
*5142096000 Holder, Fuse EUROPE, U.K., AUSTRALIA
A 5142117000 Fuse, 7A 125V U.S.A., CANADA
A 5142215000 Fuse, 7A 125V GENERAL EXPORT
4. 5142215000 Fuse, 7A 125V JAPAN
A, 5142191000 Fuse,3.15AT 250V EUROPE, U.K., AUSTRALIA
3 -30 *5720003800 Seal, Fuse Capacity 3.15AT 250V EUROPE, U.K., AUSTRALIA
*5720003900 Seal, Fuse Capacity 7A 125V JAPAN, U.S.A., CANADA,
GENERAL EXPORT
3-3) A 5152222000 Transformer, Power EUROPE, U.K., AUSTRALIA
A 5152223000 Transformer, Power GENERAL EXPORT
4 5152224000 = Transformer, Power JAPAN, U.S.A., CANADA
3 -32 *5502255000 Chassis Assy, Bottom
*5552447000 Chassis, Bottom Part of 3 -32
3 - 33 *6158028000 PCB Assy, FONE CON AMPL
*5157028000 PCB, TONE CON AMPL Part of 3 -34
4*5185664000 _ =‘ Resistor, Carbon; R412,R512 100hm %W Non Flammable Partof3 -34
*5160050000 Coil, 24H Part of 3. - 34
