CX350/CX-351
7
PC
BOARDS
AND
PARTS
LIST
PC
Boards
shown
viewed
from
foil
side.

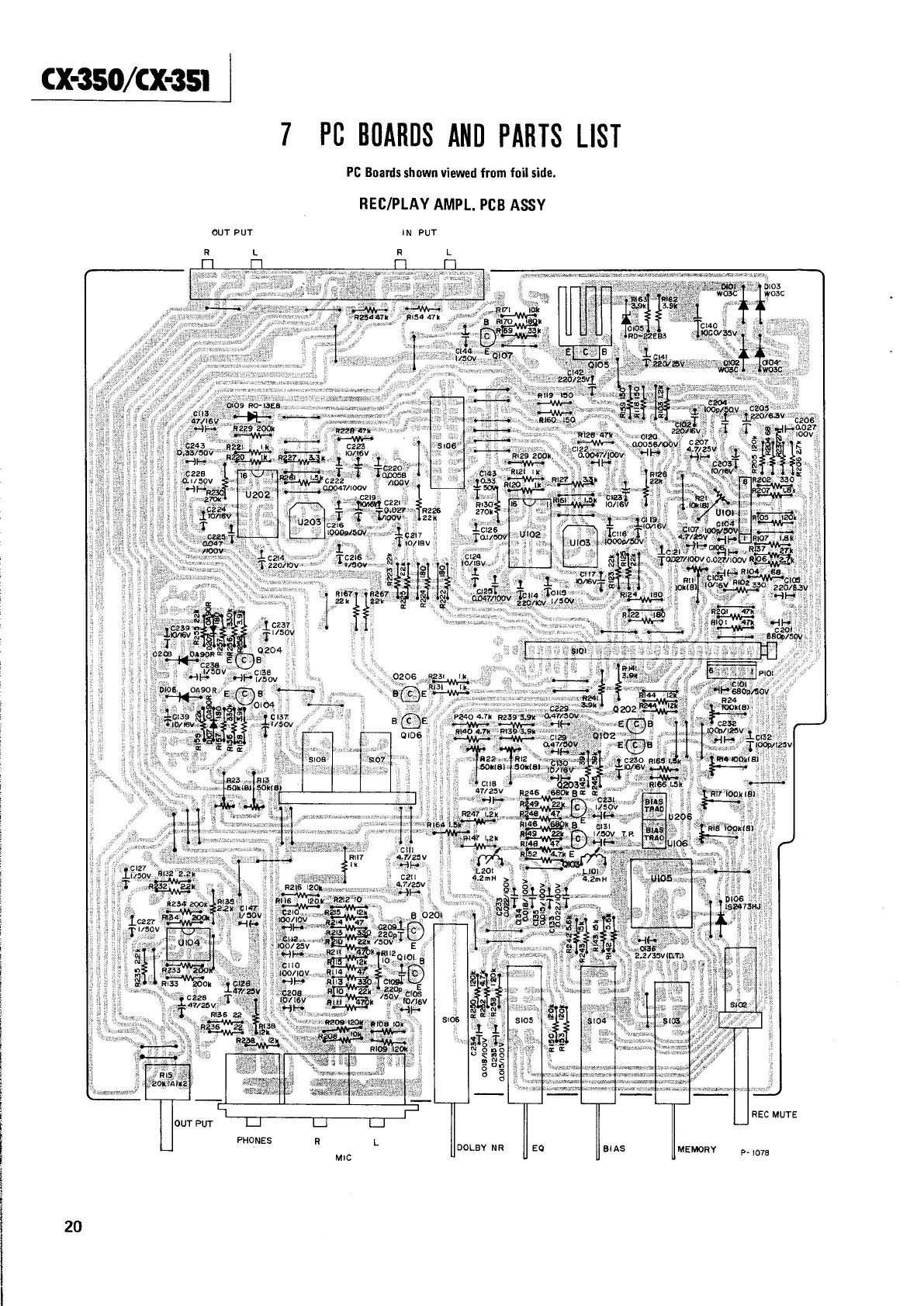

REC/PLAY
AMPL,
PCB
ASSY
OUT PUT
iN
PUT
R
L
R
REC
MUTE
PHONES
DOLBY
NR
20
