Teac SL-D900 - Page 33

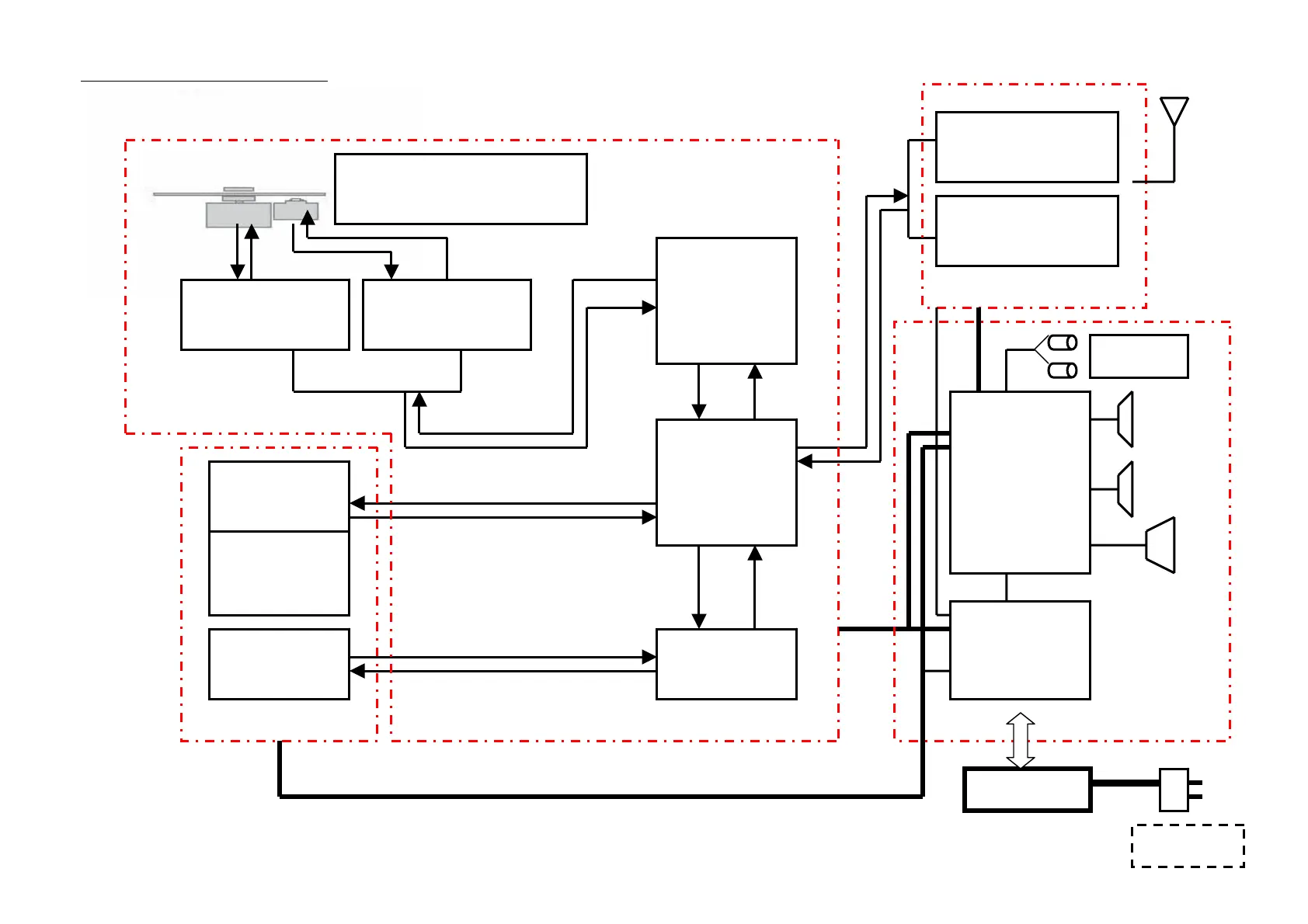

SL-D900 Block Diagram
TUNER PCB
MAIN PCB
CPU
S3C825A
(Sumsung)
LCD
DISPLAY
TMC51F01M
USB Controler
USB Port
(1.1)
KA9258D
Motor Driver IC
S1L9226
SERVO IC
S5L9279
DSP
(CD/MP
Decorder)
FRONT
CONTROL
FRONT PCB
LC72131
FM/AM PLL IC
LA1823
FM/AM TUNER IC
TA8218AH
3-Cchanel
POWE RIC
TC4052BP
FUNCTION
IC
A
UX IN
CD PCB
TRANCE
230V/50Hz
CD Mechanisum
Samsung CMS-B35VG6
