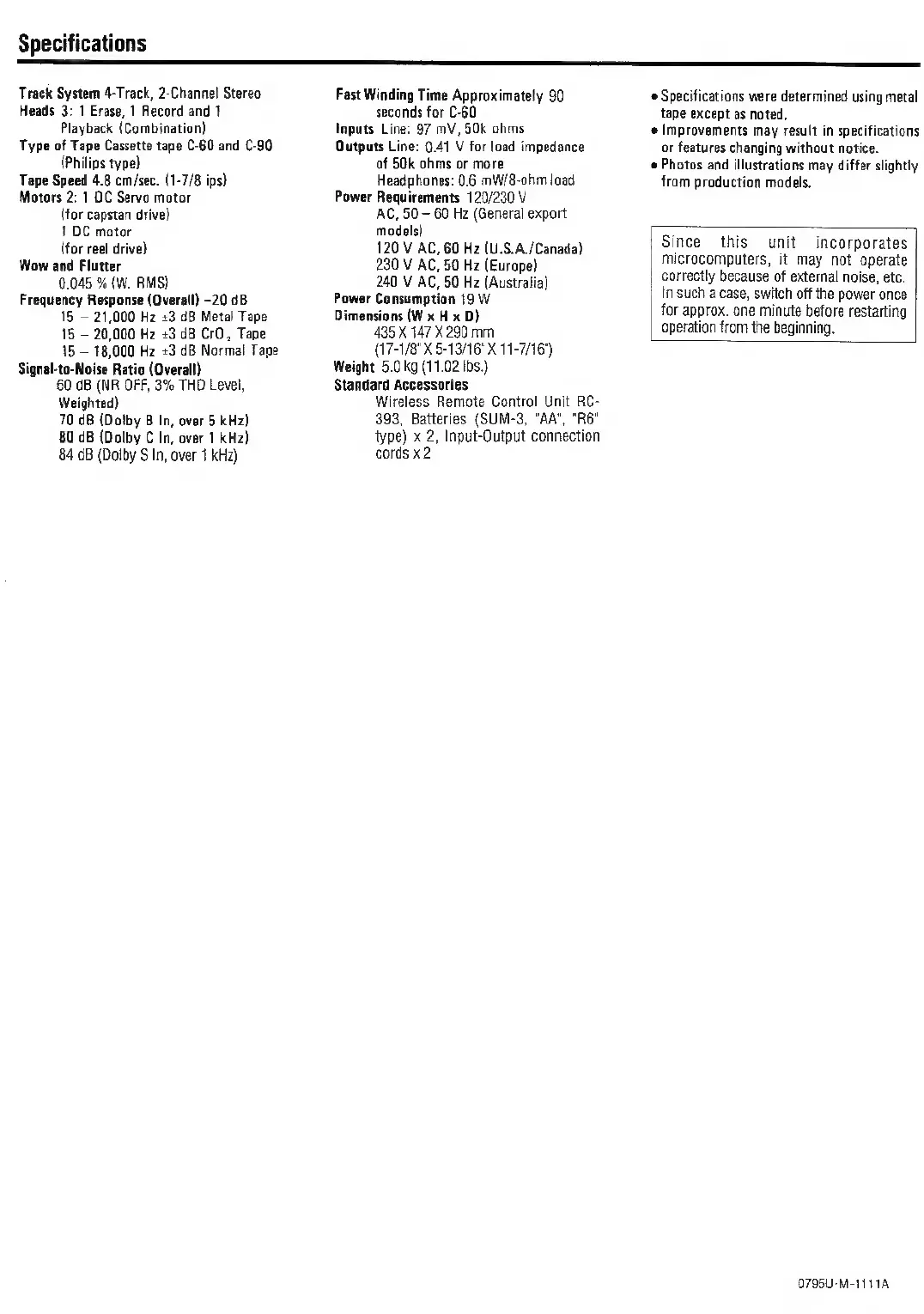

Teac V-2030S - Specifications

Specifications
OE
Track System 4-Track, 2-Channel Stereo
Heads 3: 1 Erase, 1 Record and 1
Playback (Combination)
Type of Tape Cassette tape C-60 and C-90
(Philips type)
Tape Speed 4.8 cm/sec. (1-7/8 ips)
Motors 2: 1 DC Servo motor
(for capstan drive)
1 DC motor
(for reel drive)
Wow and Flutter
0.045 % (W. RMS)
Frequency Response (Overall) -20 dB
15 — 21,000 Hz +3 dB Metal Tape
1 — 20,000 Hz +3 dB CrO, Tape
15 — 18,000 Hz +3 dB Normal Tape
Signal-to-Noise Ratio (Overall)
60 dB (NR OFF, 3% THD Level,
Weighted)
70 dB (Dolby B In, over 5 kHz)
80 dB (Dolby C In, over 1 kHz)
84 dB (Dolby S In, over 1 kHz)
Fast Winding Time Approximately 90
seconds for C-60
Inputs Line: 97 mV, 50k ohms
Outputs Line: 0.41 V for load impedance
of 50k ohms or more
Headphones: 0.6 mW/8-ohm load
Power Requirements 120/230 V
AC, 50 — 60 Hz (General export
models)
120 V AC, 60 Hz (U.S.A./Canada)
230 V AC, 50 Hz (Europe)
240 V AC, 50 Hz (Australia)
Power Consumption 19 W
Dimensions (W x H x D)
435 X 147 X 290 mm
(17-1/8" X 5-13/16" X 11-7/16")
Weight 5.0 kg (11.02 Ibs.)
Standard Accessories
Wireless Remote Control Unit RC-
393, Batteries (SUM-3, "AA’, "R6"
type) x 2, Input-Output connection
cords x2
© Specifications were determined using metal
tape except as noted.
mprovements may result in specifications
or features changing without notice.
Photos and illustrations may differ slightly
from production models,
Since this unit incorporates
microcomputers, it may not operate
correctly because of external noise, etc.
In such a case, switch off the power once
for approx. one minute before restarting
operation from the beginning.
0795U-M-1111A,
