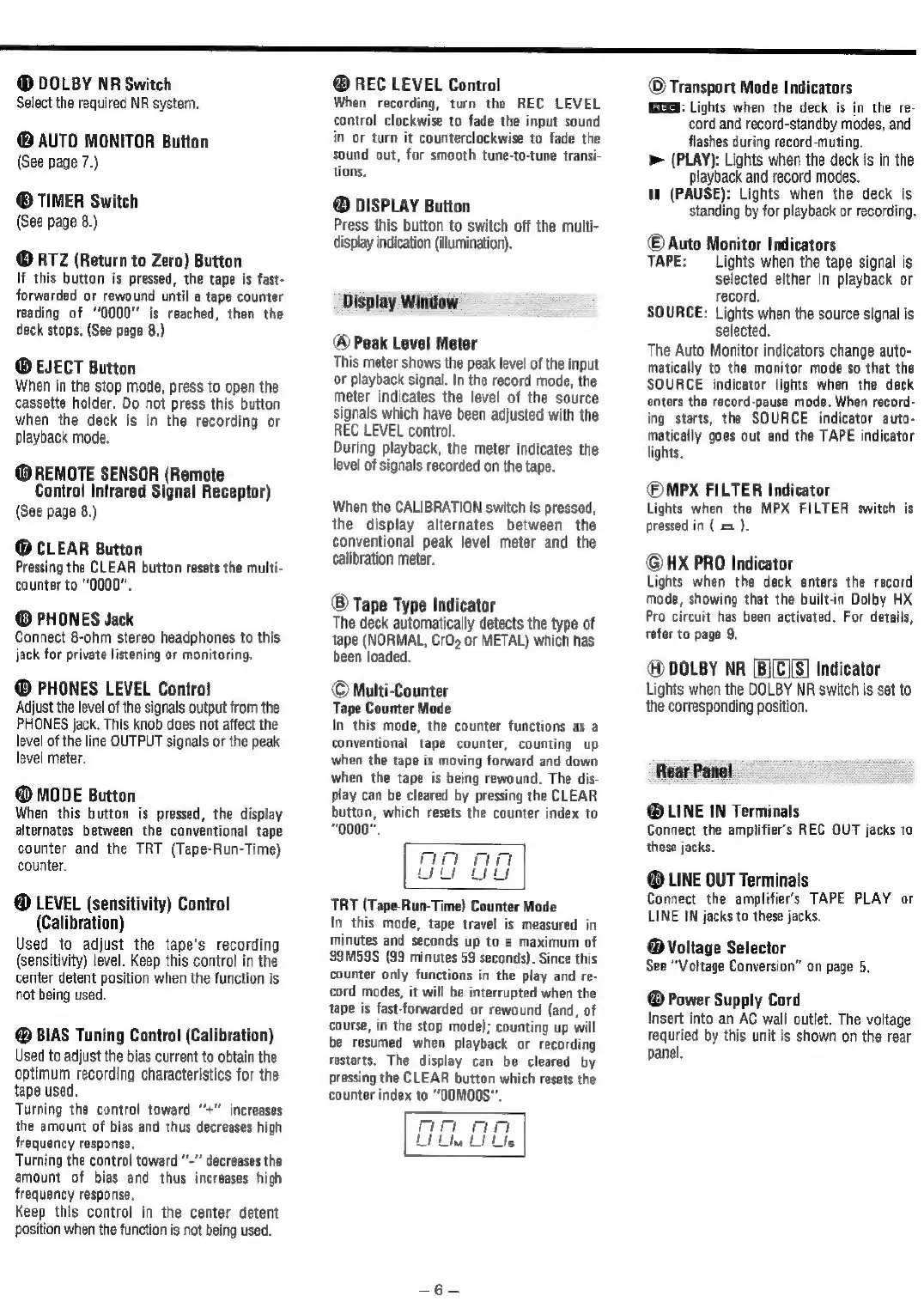

@® DOLBY NR Switch
Select the required NR system.
@ AUTO MONITOR Button
(See page 7.)
® TIMER Switch
(See page 8.)
@® RTZ (Return to Zero) Button
If this button is pressed, the tape is fast-
forwarded or rewound until a tape counter
reading of "0000" is reached, then the
deck stops, (See page 8.)
® EJECT Button
When in the stop mode, press to open the
cassette holder. Do not press this button
when the deck is in the recording or
Playback mode.
@REMOTE SENSOR (Remote
Control Infrared Signal Receptor)
(See page 8.)
@® CLEAR Button
Pressing the CLEAR button resets the multi-
counter to "0000".
® PHONES Jack
Connect 8-ohm stereo headphones to this
jack for private listening or monitoring.
@® PHONES LEVEL Control
Adjust the level of the signals output from the
PHONES jack. This knob does not affect the
level of the line OUTPUT signals or the peak
level meter.
@ MODE Button
When this button is pressed, the display
alternates between the conventional tape
counter and the TRT (Tape-Run-Time)
counter.
@ LEVEL (sensitivity) Control
(Calibration)
Used to adjust the tape's recording
(sensitivity) level. Keep this control in the
center detent position when the function is
not being used.
@ BIAS Tuning Control (Calibration)
Used to adjust the bias current to obtain the
optimum recording characteristics for the
tape used.
Turning the control toward “+ increases
the amount of bias and thus decreases high
frequency response,
Turning the control toward ‘~"" decreases the
amount of bias and thus increases high
frequency response,
Keep this control in the center detent
position when the function is not being used.
@ REC LEVEL Control
When recording, turn the REC LEVEL
control clockwise to fade the input sound
in or turn it counterclockwise to fade the
sound out, for smooth tune-to-tune transi-
tions.
@ DISPLAY Button
Press this button to switch off the multi-
display indication (illumination),
Display Window
@ Peak Level Meter
This meter shows the peak level of the input
or playback signal. In the record mode, the
meter indicates the level of the source
signals which have been adjusted with the
REC LEVEL control.
During playback, the meter indicates the
level of signals recorded on the tape.
When the CALIBRATION switch is pressed,
the display alternates between the
conventional peak level meter and the
calibration meter.
© Tape Type Indicator
The deck automatically detects the type of
tape (NORMAL, CrO, or METAL) which has
been loaded.
© Multi-Counter
Tape Counter Mode
In this mode, the counter functions as a
conventional tape counter, counting up
when the tape is moving forward and down
when the tape is being rewound. The dis-
play can be cleared by pressing the CLEAR
button, which resets the counter index to
0000".
wna
Cec) Lely
TRT (Tape-Run-Time) Counter Mode
In this mode, tape travel is measured in
minutes and seconds up to a maximum of
93M59S (99 minutes 59 seconds). Since this
counter only functions in the play and re-
cord modes, it will be interrupted when the
tape is fast-forwarded or rewound (and, of
course, in the stop mode); counting up will
be resumed when playback or recording
restarts. The display can be cleared by
pressing the CLEAR button which resets the
counter index to “OOMOOS'
© Transport Mode Indicators
(GS: Lights when the deck is in the re-
cord and record-standby modes, and
flashes during record-muting,
b> (PLAY): Lights when the deck is in the
playback and record modes.
it (PAUSE): Lights when the deck is
standing by for playback or recording.
© Auto Monitor Indicators
TAPE: Lights when the tape signal is
selected either in playback or
record.
SOURCE: Lights when the source signal is
selected.
The Auto Monitor indicators change auto-
matically to the monitor mode so that the
SOURCE indicator lights when the deck
enters the record-pause mode. When record-
ing starts, the SOURCE indicator auto-
matically goes out and the TAPE indicator
lights.
©MPX FILTER Indicator
Lights when the MPX FILTER switch is
pressed in { x ).
@HKX PRO Indicator
Lights when the deck enters the record
mode, showing that the built-in Dolby HX
Pro circuit has been activated. For details,
refer to page 9.
@ DOLBY NR [B][C][S] Indicator
Lights when the DOLBY NR switch is set to
the corresponding position.
Rear Panel
@LINE IN Terminals
Connect the amplifier’s REC OUT jacks to
these jacks.
@® LINE OUT Terminals
Connect the amplifier’s TAPE PLAY or
LINE IN jacks to these jacks.
@ Voltage Selector
See “Voltage Conversion” on page 5.
® Power Supply Cord
Insert into an AC wall outlet. The voltage
requried by this unit is shown on the rear
panel.
