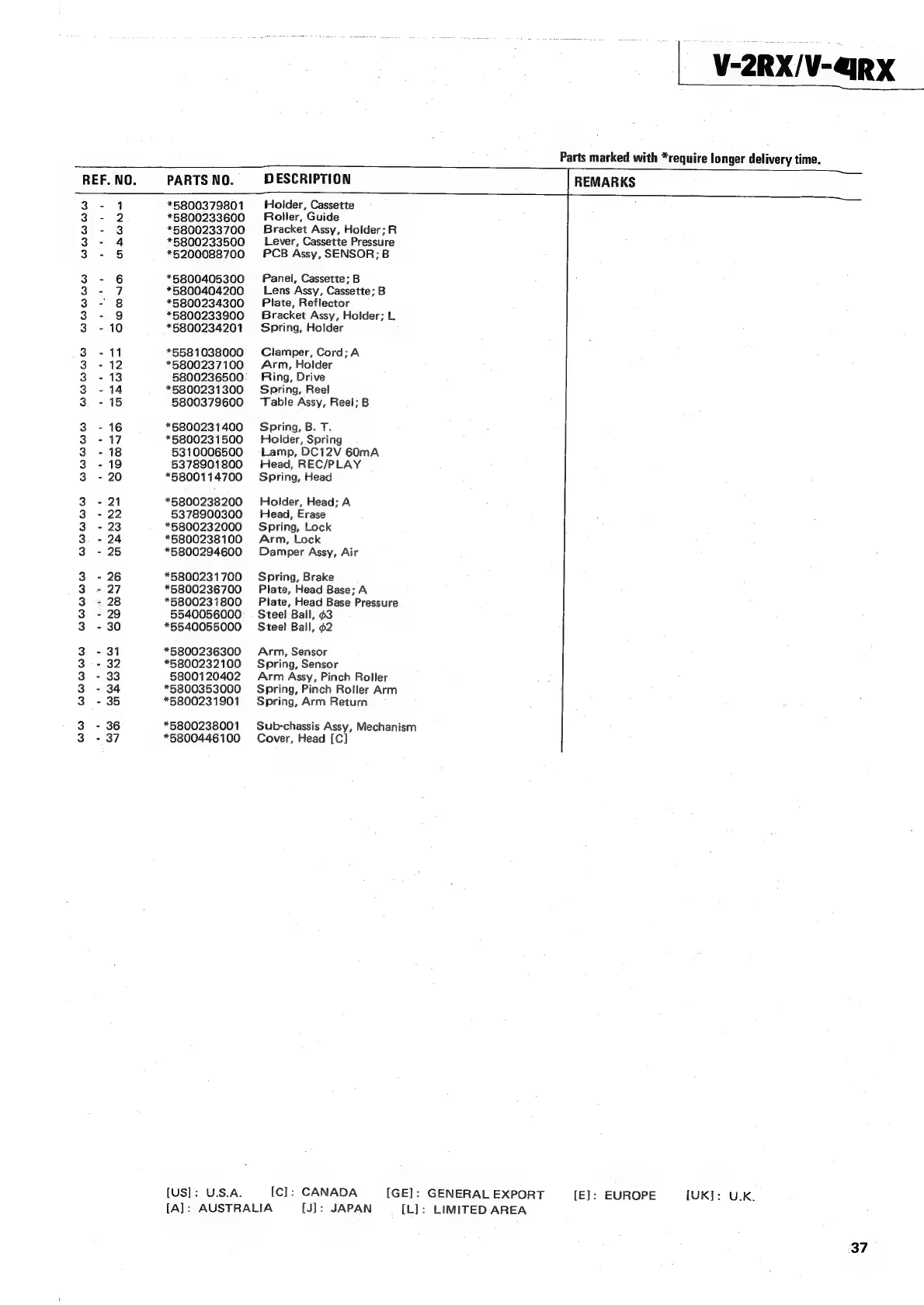

Teac V-2RX - Exploded View 3 - V-4 RX Parts List

REF.
WW WWHWWHW WWWWW WWWWW WWHWW BDBWWWH WWWWW WAWWWW
Cee eee Cee aa vee ee hoe eee hues a ee yee
Ny ND = = = ao w oo w CONN D OPWM.
atone acgs
wo
wo
2
2
Parts marked with *require longer delivery time.
PARTS NO. DESCRIPTION REMARKS
*5800379801 Holder, Cassette
*5800233600 ~=—RRoller, Guide
*5800233700 Bracket Assy, Holder;R
*5800233500 _—sCLever,, Cassette Pressure
*5200088700 PCB Assy, SENSOR;B
*5800405300 Panel, Cassette; B
*5800404200 _Lens Assy, Cassette; B
*5800234300 Plate, Reflector
*5800233900 Bracket Assy, Holder; L
*5800234201 Spring, Holder
*5581038000 Clamper, Cord;A
*5800237100 Arm, Holder
5800236500 _ ~—sWRRing, Drive
*5800231300 Spring, Reel
5800379600 ‘Table Assy, Reel; B
*5800231400 Spring, B. T.
*5800231500 Holder, Spring
5310006500 Lamp, DC12V 60mA
5378901800 Head, REC/PLAY
*5800114700 Spring, Head
*5800238200 Holder, Head; A
5378900300 Head, Erase
*5800232000 Spring, Lock
*5800238100 Arm, Lock
*5800294600 Damper Assy, Air
*5800231700 Spring, Brake
*5800236700 Plate, Head Base; A
*5800231800 Plate, Head Base Pressure
5540056000 _s Steel Bail, $3
*5540055000_ = Steel Ball, 62
*5800236300 Arm, Sensor
*5800232100 Spring, Sensor
5800120402. Arm Assy, Pinch Roller
*5800353000 Spring, Pinch Rotler Arm
*5800231901 Spring, Arm Return
*5800238001 Sub-chassis Assy, Mechanism
*5800446100 Cover, Head [C]
[US]: U.S.A. [C]: CANADA [GE]: GENERAL EXPORT [E]: EUROPE
[A]: AUSTRALIA
[J]: JAPAN
[L]: LIMITED AREA
[UK]: U.K.
V-2RX/V-4iRX
37
