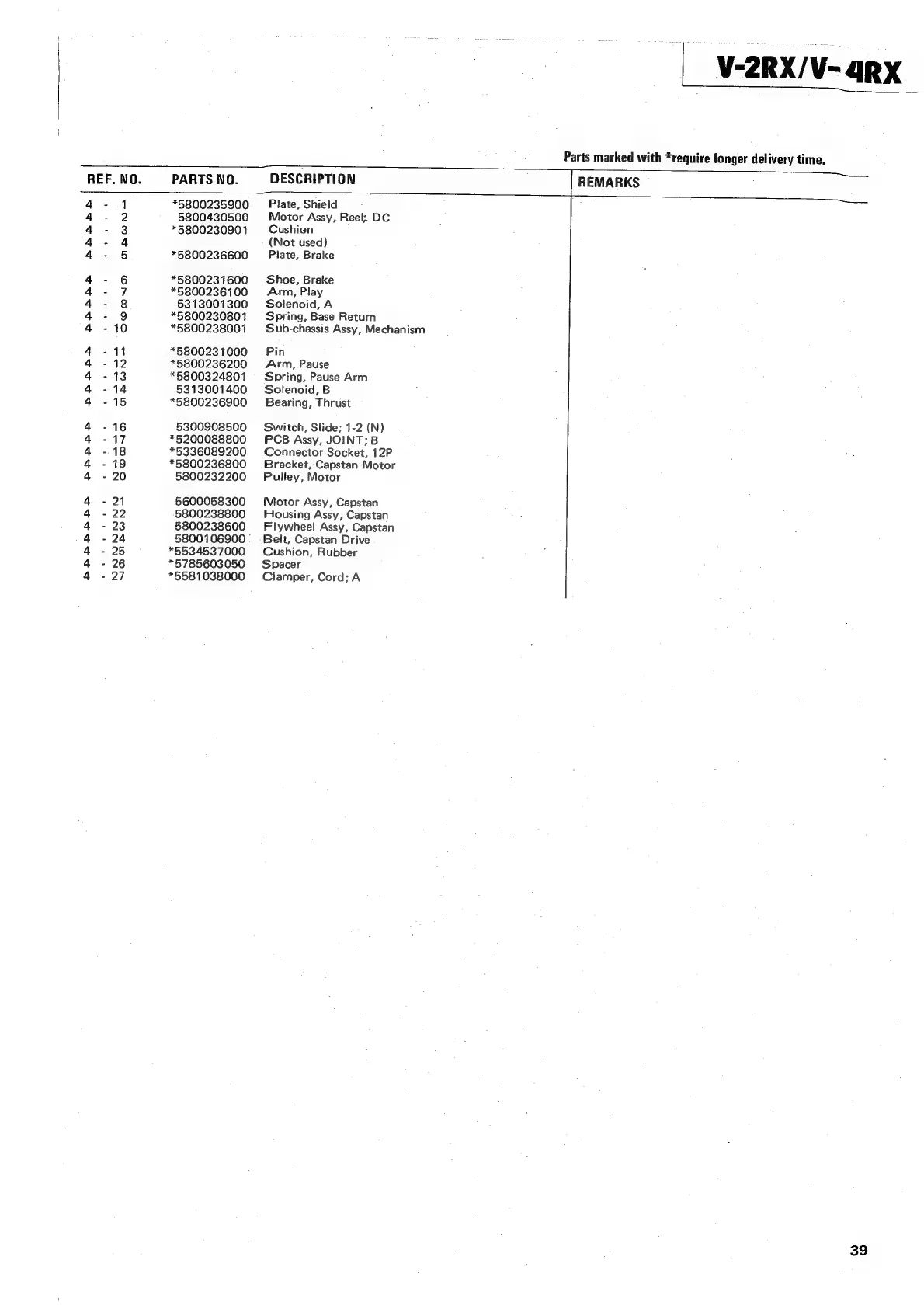

Teac V-2RX - Exploded View 4 - Parts List

Parts marked with *require longer delivery time.
| REMARKS
REF. NO. PARTS NO. DESCRIPTION
4-4 *5800235900 _Plate, Shield ie
4-2 5800430500 Motor Assy, Reel; DC
4 - 3 *5800230901 Cushion
4-4 (Not used)
4-5 *5800236600 Plate, Brake
4-6 *5800231600 Shoe, Brake
4- 7 *5800236100 Arm, Play
4-8 5313001300 Solenoid, A
4-9 *5800230801 Spring, Base Return
4 -10 *5800238001 Sub-chassis Assy, Mechanism
4-11 *5800231000 = —~Pin
4 -12 *5800236200 Arm, Pause
4 -13 *5800324801 Spring, Pause Arm
4 -14 5313001400 Solenoid, B
4 -15 *5800236900 Bearing, Thrust
4 -16 5300908500 Switch, Slide; 1-2 (N)
4 -17 *5200088800 PCB Assy, JOINT:B
4 -18 *5336089200 Connector Socket, 12P
4 - 19 *5800236800 Bracket, Capstan Motor
4 -20 5800232200 Pulley, Motor
4 -21 5600058300 Motor Assy, Capstan
4 -22 5800238800 Housing Assy, Capstan
4 - 23 5800238600 Flywheel Assy, Capstan
4 -24 5800106900 _ _— Belt, Capstan Drive
4 - 25 *5534537000 Cushion, Rubber
4 - 26 *5785603050 Spacer
4 -27 Clamper, Cord; A
*5581038000
V-2RX/V-
arx
39
