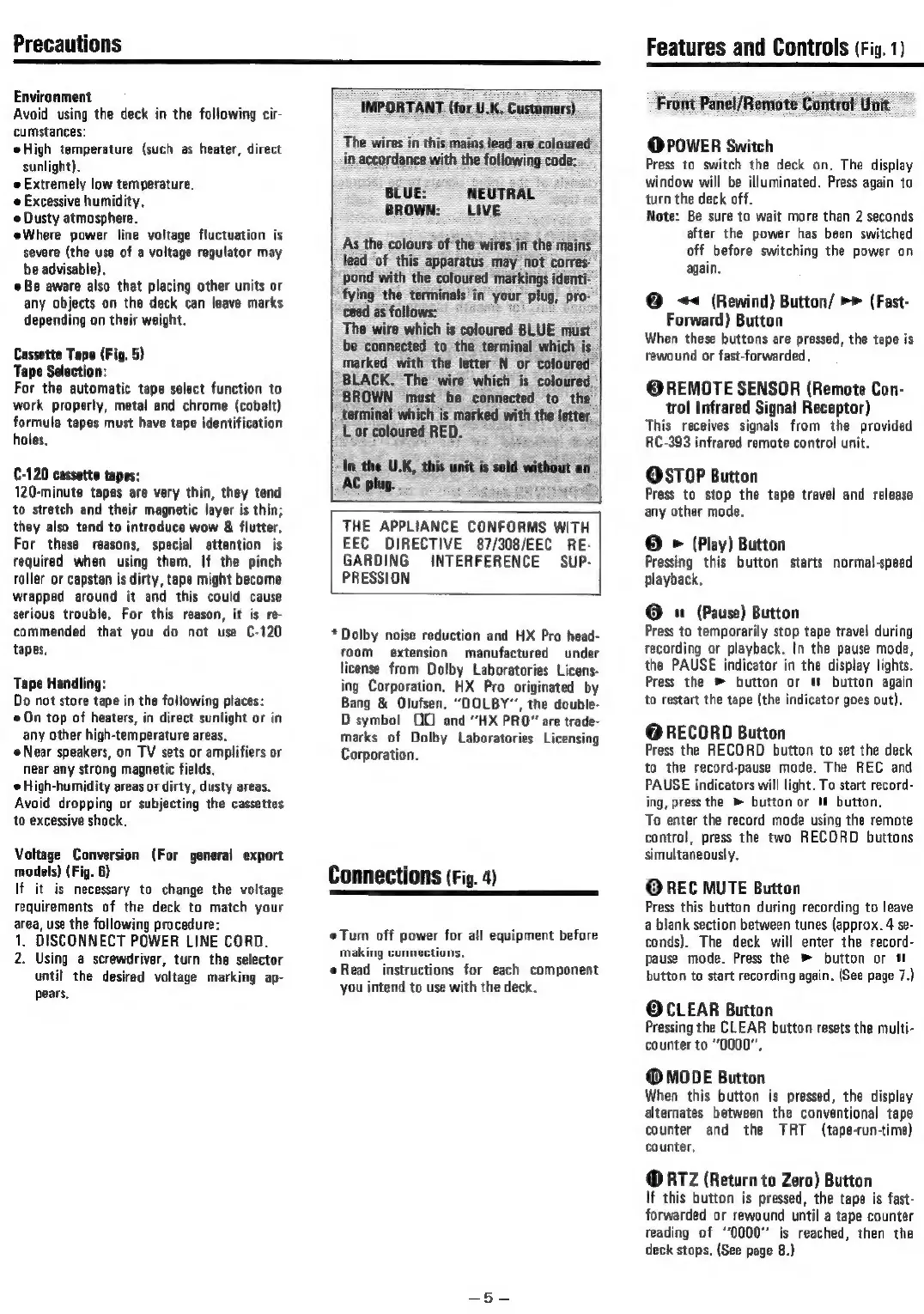

Precautions
Environment
Avoid using the deck in the following cir-
cumstances:
eHigh temperature (such as heater, direct
sunlight).
Extremely low temperature.
e Excessive humidity,
Dusty atmosphere.
Where power line voltage fluctuation is
severe (the use of a voltage regulator may
be advisable),
Be aware also that placing other units or
any objects on the deck can leave marks
depending on their weight.
Cassette Tape (Fig. 5)
Tape Selection:
For the automatic tape select function to
work properly, metal and chrome (cobalt)
formula tapes must have tape identification
holes,
C-120 cassette tapes:
120-minute tapes are very thin, they tend
to stretch and their magnetic layer is thin;
they also tend to introduce wow & flutter,
For these reasons, special attention is
required when using them. If the pinch
roller or capstan is dirty, tape might become
wrapped around it and this could cause
serious trouble, For this reason, it is re-
commended that you do not use C-120
tapes,
Tape Handling:
Do not store tape in the following places:
On top of heaters, in direct sunlight or in
any other high-temperature areas,
e Near speakers, on TV sets or amplifiers or
near any strong magnetic fields,
¢ High-humidity areas or dirty, dusty areas.
Avoid dropping or subjecting the cassettes
to excessive shock,
Voltage Conversion (For general export
models) (Fig. 6)
If it is necessary to change the voltage
requirements of the deck to match your
area, use the following procedure:
1. DISCONNECT POWER LINE CORD.
2. Using a screwdriver, turn the selector
until the desired voltage marking ap-
pears,
IMPORTANT (for U.K. Customers)
The wires in this mains lead are coloured
in accordance with the following code:
BLUE: NEUTRAL
BROWN: LIVE
As the colours of the wires in the mains
lead of this apparatus may not corres-
pond with the coloured markings identi-
fying the terminals in your plug, pro-
ceed as follows:
The wire which is coloured BLUE must
be connected to the terminal which is
marked with the letter N or coloured
BLACK. The wire which is coloured
BROWN must be connected to the
terminal which is marked with the letter
iL or coloured RED.
fhe UX, ht ish it
AC plug.
THE APPLIANCE CONFORMS WITH
EEC DIRECTIVE 87/308/EEC RE-
GARDING INTERFERENCE SupP-
PRESSION
* Dolby noise reduction and HX Pro head-
room extension manufactured under
license from Dolby Laboratories Licens-
ing Corporation. HX Pro originated by
Bang & Olufsen. “DOLBY”, the double-
D symbol OO and “HX PRO” are trade-
marks of Dolby Laboratories Licensing
Corporation.
Connections (
Tum off power for all equipment before
making connections.
Read instructions for each component
you intend to use with the deck.
Features and Controls (Fiy. 1)
Front Panel/Remote Control Unit
@POWER Switch
Press to switch the deck on. The display
window will be illuminated. Press again to
turn the deck off.
Note: Be sure to wait more than 2 seconds
after the power has been switched
off before switching the power on
again.
@ << (Rewind) Button/ >» (Fast-
Forward) Button
When these buttons are pressed, the tape is
rewound or fast-forwarded,
@ REMOTE SENSOR (Remote Con-
trol Infrared Signal Receptor)
This receives signals from the provided
RC-393 infrared remote control unit.
QSTOP Button
Press to stop the tape travel and release
any other mode.
© > (Play) Button
Pressing this button starts normal-speed
playback,
@ w (Pause) Button
Press to temporarily stop tape travel during
recording or playback. In the pause mode,
the PAUSE indicator in the display lights.
Press the ® button or W button again
to restart the tape (the indicator goes out).
@ RECORD Button
Press the RECORD button to set the deck
to the record-pause mode. The REC and
PAUSE indicators will light. To start record-
ing, press the » button or ## button,
To enter the record mode using the remote
control, press the two RECORD buttons
simultaneously.
@ REC MUTE Button
Press this button during recording to leave
a blank section between tunes (approx. 4 se-
conds). The deck will enter the record-
pause mode. Press the ® button or W
button to start recording again. (See page 7.)
O CLEAR Button
Pressing the CLEAR button resets the multi-
counter to 0000".
@ MODE Button
When this button is pressed, the display
alternates between the conventional tape
counter and the TRT (tape-un-time)
counter,
@ RTZ (Return to Zero) Button
If this button is pressed, the tape is fast-
forwarded or rewound until a tape counter
reading of “0000” is reached, then the
deck stops, (See page 8.)
