i

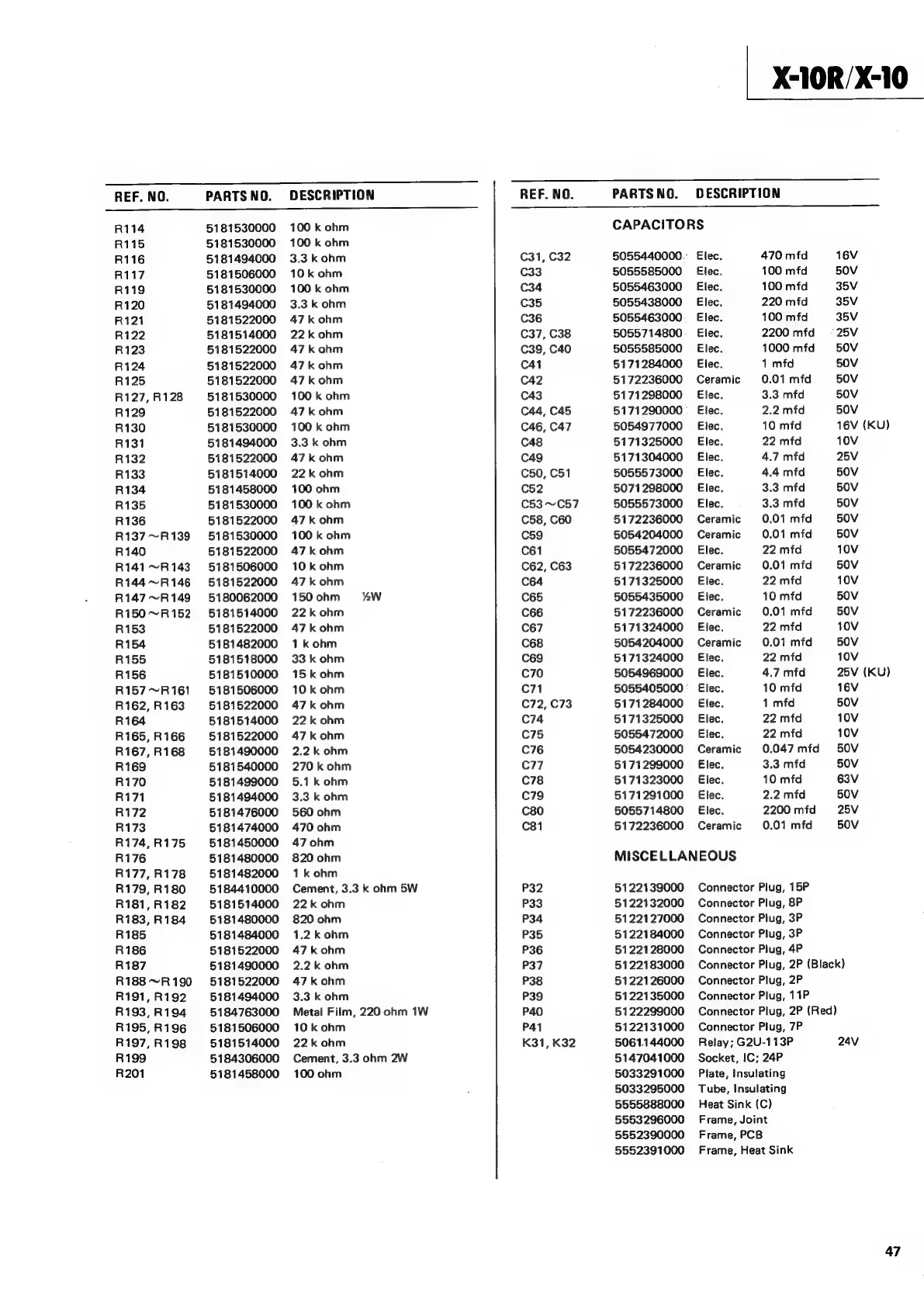

REF. NO. PARTSNO. DESCRIPTION
R114 5181530000 100k ohm
R115 5181530000 100k ohm
R116 5181494000 3.3 kohm
R117 5181506000 10k ohm
R119 5181530000 100k ohm
R120 5181494000 3.3 k ohm
R121 5181522000 47k ohm
R122 5181514000 22ko0hm
R123 5181522000 47kohm
R124 5181522000 47kohm
R125 5181522000 47kohm
R127, R128 5181530000 100k ohm
R129 5181522000 47k ohm
R130 5181530000 100k ohm
R131 5181494000 3.3 k ohm
R132 5181522000 47k ohm
R133 5181514000 22k ohm
R134 5181458000 100 ohm
R135 5181530000 100k ohm
R136 5181522000 47k ohm
R137~R139 5181530000 100ko0hm
R140 5181522000 47k ohm
R141~R143 5181506000 10k ohm
R144~R146 5181522000 47k ohm
R147~R149 5180062000 1500hm %W
R150~R152 5181514000 22k ohm
R153 5181522000 47kohm
R154 5181482000 1kohm
R155 5181518000 33k ohm
R156 5181510000 15k ohm
R157~R161 5181506000 10k ohm
R162, R163 5181522000 47k ohm
R164 5181514000 22k ohm
R165, R166 5181522000 47k ohm
R167, R168 5181490000 2.2k ohm
R169 5181540000 270 kohm
R170 5181499000 5.1 k ohm
R171 5181494000 3.3 k ohm
R172 5181476000 560 ohm
R173 5181474000 470 ohm
R174, R175 5181450000 47 0hm
R176 5181480000 820 0hm
R177, R178 5181482000 1kohm
R179, R180 5184410000 Cement, 3.3 k ohm 5W
R181, R182 5181514000 22k ohm
R183, R184 5181480000 820 ohm
R185 5181484000 1.2 kohm
R186 5181522000 47k ohm
R187 5181490000 2.2 k ohm
R188 ~R190 5181522000 47k ohm
R191, R192 5181494000 3.3 k ohm
R193, R194 5184763000 Metal Film, 220 ohm 1W
R195, R196 5181506000 10k ohm
R197, R198 5181514000 22k ohm
R199 5184306000 Cement, 3.3 ohm 2W
R201 5181458000 100 ohm
X-10R/X-10
REF. NO. PARTSNO. DESCRIPTION
CAPACITORS
C31, C32 5055440000 _ Elec. 470 mfd 16V
C33 5055585000 Elec. 100 mfd 50V
C34 5055463000 Elec. 100 mfd 35V
C35 5055438000 Elec. 220 mfd 35V
C36 5055463000 _ Elec. 100 mfd 35V
C37, C38 5055714800 _ Elec. 2200 mfd = 25V
C39, C40 5055585000 Elec. 1000 mfd 50V
C41 5171284000 Elec. 1 mfd 50V
C42 5172236000 Ceramic 0.01 mfd 50V
C43 5171298000 Elec. 3.3 mfd 50V
C44, C45 5171290000 _ Elec. 2.2 mfd 50V
C46, C47 5054977000 Elec. 10 mfd 16V (KU)
C48 5171325000 _ Elec. 22 mfd 10V
c49 5171304000 Elec. 4.7 mfd 25V
C50, C51 5055573000 Elec. 4.4 mfd 50V
C52 5071298000 Elec. 3.3 mfd 50V
C53 ~C57 5055573000 Elec. 3.3 mfd 50V
C58, C60 5172236000 Ceramic 0.01 mfd 50V
cs59 5054204000 Ceramic 0.01 mfd 50V
C61 5055472000 Elec. 22 mfd 10V
C62, C63 5172236000 Ceramic 0.01 mfd 50V
C64 5171325000 Elec. 22 mfd 10V
C65 5055435000 Elec. 10 mfd 50V
C66 5172236000 Ceramic 0.01 mfd 50V
C67 5171324000 Elec. 22 mfd 10V
C68 5054204000 Ceramic 0.01 mfd 50V
C69 5171324000 Elec. 22 mfd 10V
C70 5054969000 Elec. 4.7 mfd 25V (KU)
c71 5055405000 _ Elec. 10 mfd 16V
C72, C73 5171284000 Elec. 1 mfd 50V
C74 5171325000 Elec. 22 mfd 10V
C75 5055472000 Elec. 22 mfd 10V
C76 5054230000 Ceramic 0.047 mfd 50V
C77 5171299000 Elec. 3.3 mfd 50V
C78 5171323000 Elec. 10 mfd 63V
c79 5171291000 Elec. 2.2 mfd 50V
C80 5055714800 Elec. 2200 mfd = =25V
C81 5172236000 Ceramic 0.01 mfd 50V
MISCELLANEOUS
P32 5122139000 Connector Plug, 15P
P33 5122132000 Connector Plug, 8P
P34 5122127000 Connector Plug, 3P
P35 5122184000 Connector Plug, 3P
P36 5122128000 Connector Plug, 4P
P37 5122183000 Connector Plug, 2P (Black)
P38 5122126000 Connector Plug, 2P
P39 5122135000 Connector Plug, 11P
P40 5122299000 Connector Plug, 2P (Red)
P41 5122131000 Connector Plug, 7P
K31, K32 5061144000 Relay; G2U-113P 24V
5147041000 Socket, IC; 24P
5033291000 Plate, Insulating
5033295000 Tube, Insulating
5555888000 Heat Sink (C)
5553296000 Frame, Joint
5552390000 Frame, PCB
5552391000 Frame, Heat Sink
47
