Teac X-10 - 2-8 TENSION ARM HEIGHT ADJUSTMENT; 2-9 TENSION ARM FORCE ADJUSTMENT

spring scale
Fig. 2-8

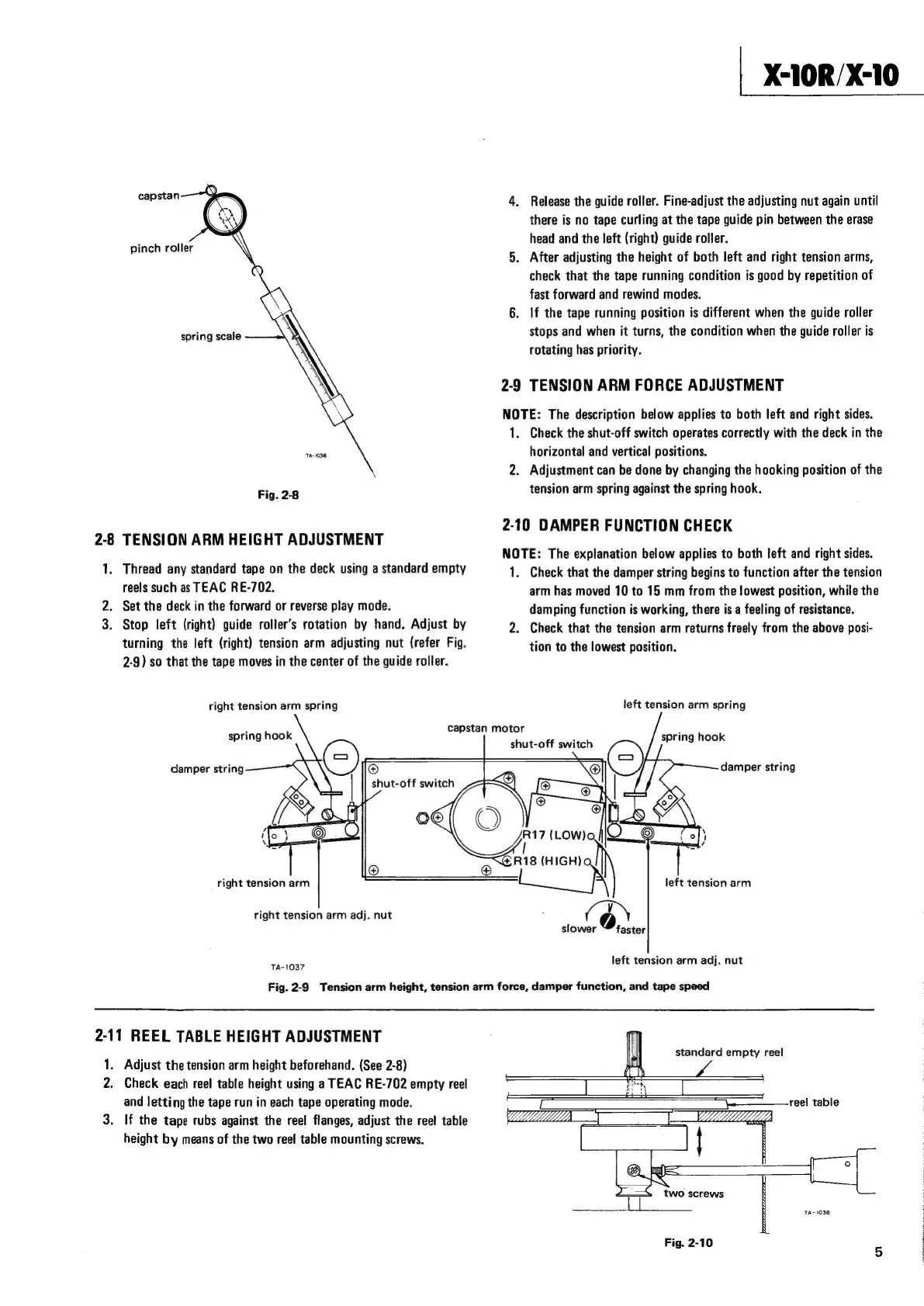

2-8 TENSION ARM HEIGHT ADJUSTMENT
1. Thread any standard tape on the deck using a standard empty
reels such as TEAC RE-702.
2. Set the deck in the forward or reverse play mode.
3. Stop left (right) guide roller’s rotation by hand. Adjust by
turning the left (right) tension arm adjusting nut (refer Fig.
2-9) so that the tape moves in the center of the guide roller.
right tension arm spring
spring hook
damper string
right tension arm
right tension arm adj. nut
TA-1037
| X-10R/X-10
4, Release the guide roller. Fine-adjust the adjusting nut again until
there is no tape curling at the tape guide pin between the erase
head and the left (right) guide roller.
5. After adjusting the height of both left and right tension arms,
check that the tape running condition is good by repetition of
fast forward and rewind modes.
6. {f the tape running position is different when the guide roller
stops and when it turns, the condition when the guide roller is
rotating has priority.
2-9 TENSION ARM FORCE ADJUSTMENT
NOTE: The description below applies to both left and right sides.
1. Check the shut-off switch operates correctly with the deck in the
horizontal and vertical positions.
2. Adjustment can be done by changing the hooking position of the
tension arm spring against the spring hook.
2-10 DAMPER FUNCTION CHECK
NOTE: The explanation below applies to both left and right sides.
1. Check that the damper string begins to function after the tension
arm has moved 10 to 15 mm from the lowest position, while the
damping function is working, there is a feeling of resistance.
2. Check that the tension arm returns freely from the above posi-
tion to the lowest position.
left tension arm spring
capstan motor
shut-off switch sprngsheak
damper string
slower “ faster
left tension arm adj. nut
Fig. 2-9 Tension arm height, tension arm force, damper function, and tape speed
2-11 REEL TABLE HEIGHT ADJUSTMENT
1. Adjust the tension arm height beforehand. (See 2-8)
2. Check each reel table height using a TEAC RE-702 empty reel
and letting the tape run in each tape operating mode.
3. If the tape rubs against the reel flanges, adjust the reel table
height by means of the two reel table mounting screws.
TA-1038
Fig. 2-10
