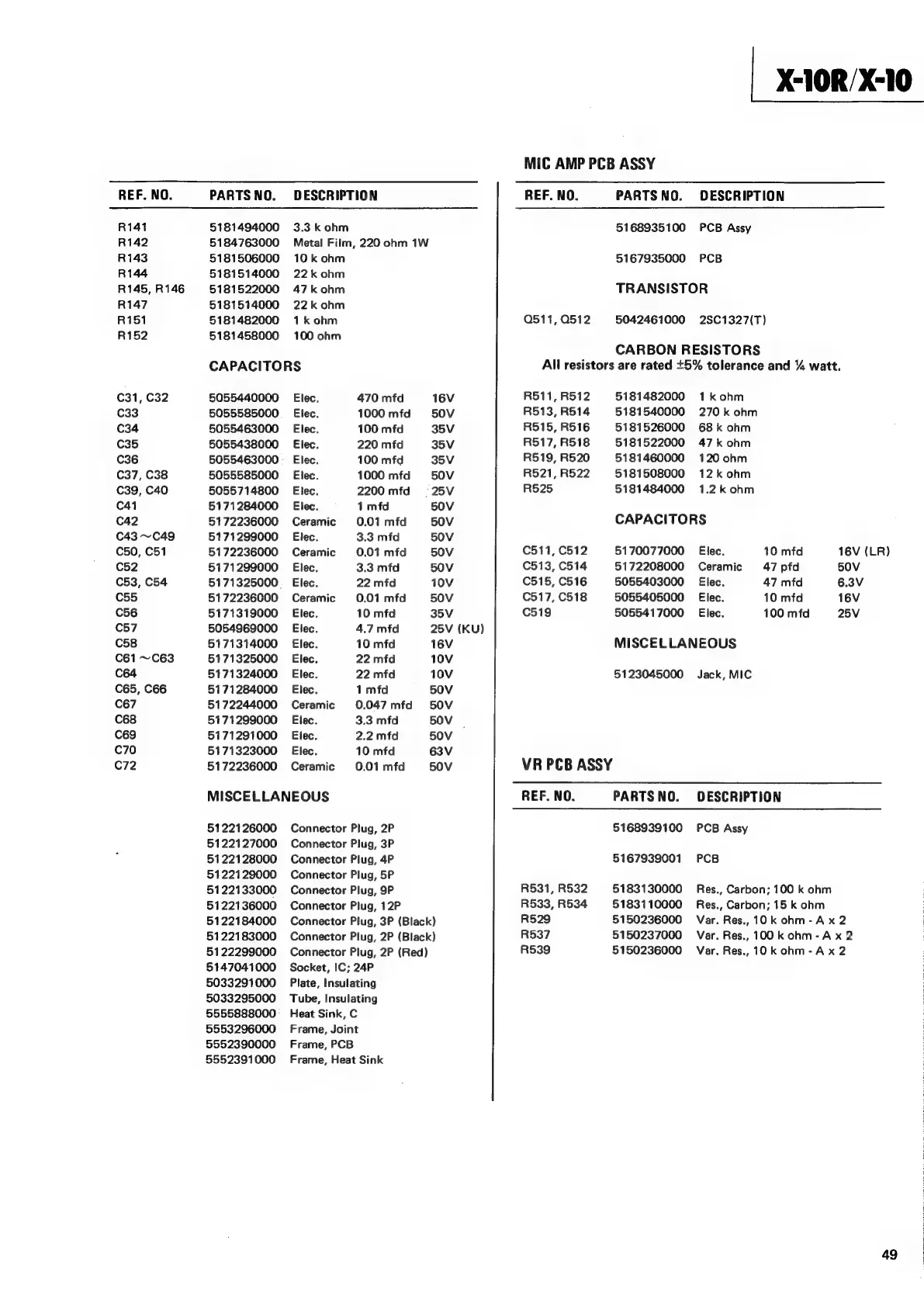

X-10R/X-10
MiC AMP PCB ASSY
REF. NO. PARTS NO. DESCRIPTION REF. NO. PARTS NO. OESCRIPTION
R141 5181494000 3.3kohm 5168935100 PCB Assy
R142 5184763000 Metal Film, 220 ohm 1W
R143 5181506000 10kohm 5167935000 PCB
R144 5181514000 22k ohm
R145, R146 5181522000 47kohm TRANSISTOR
R147 5181514000 22k ohm
R151 5181482000 1kohm Q511, 0512 5042461000 2SC1327(T)
R152 5181458000 100 ohm
CARBON RESISTORS
CAPACITORS All resistors are rated +5% tolerance and % watt.
C31, C32 5055440000 Elec. 470 mfd 16V R511, R512 5181482000 1kohm
C33 5055585000 _ Elec. 1000 mfd 50V R513, R514 5181540000 270k ohm
C34 5055463000 Elec. 100 mfd 35V R515, R516 5181526000 68k ohm
C35 5055438000 Elec. 220 mfd 35V R517,R518 5181522000 47k ohm
C36 5055463000 _ Elec. 100 mfd 35V R519,R520 5181460000 120 ohm
C37, C38 5055585000 Elec. 1000 mfd 50V R521,R522 5181508000 12k ohm
C39, C40 5055714800 Elec. 2200 mfd = 25V R525 5181484000 1.2k ohm
C41 5171284000 Elec. 1 mfd 50V
c42 5172236000 Ceramic 0.01mfd 50V CAPACITORS
C43 ~C49 5171299000_ Elec. 3.3 mfd 50V
c50, C51 5172236000 Ceramic 0.01 mfd 50V C511, C512 5170077000 Elec. 10 mfd 16V (LR)
C52 5171299000 Elec. 3.3 mfd 50V C513, C514 5172208000 Ceramic 47 pfd 50V
C53, C54 5171325000 _ Elec. 22 mfd 10V C515, C516 5055403000 Elec. 47 mfd 6.3V
C55 5172236000 Ceramic 0.01 mfd 50V C517, C518 5055405000_ Elec. 10 mfd 16V
C56 5171319000 Elec. 10 mfd 35V C519 5055417000 Elec. 100 mfd 25V
C57 5054969000 Elec. 4.7 mfd 25V (KU)
C58 5171314000 Elec. 10 mfd 16V MISCELLANEOUS
C61 ~C63 5171325000 Elec. 22 mfd 10V
C64 5171324000 Elec. 22 mfd 10V 5123045000 Jack, MIC
C65, C66 5171284000 Elec. 1 mfd 50V
C67 5172244000 Ceramic 0.047mfd 50V
C68 5171299000 Elec. 3.3 mfd 50V _
cé6é9 5171291000 Elec. 2.2 mfd 50V
c70 5171323000 Elec. 10 mfd 63V
C72 5172236000 Ceramic 0.01mfd 50V VR PCB ASSY
MISCELLANEOUS REF. NO. PARTSNO. DESCRIPTION
5122126000 Connector Plug, 2P 5168939100 PCB Assy
5122127000 Connector Plug, 3P
5122128000 Connector Plug, 4P 5167939001 PCB
5122129000 Connector Plug, 5P
5122133000 Connector Plug, 9P R531, R532 5183130000 Res., Carbon; 100 k ohm
5122136000 Connector Plug, 12P R533, R534 5183110000 Res., Carbon; 15 k ohm
5122184000 Connector Plug, 3P (Black) R529 5150236000 Var. Res., 10k ohm-Ax 2
5122183000 Connector Plug, 2P (Black) R537 5150237000 Var. Res., 100 k ohm -A x 2
5122299000 Connector Plug, 2P (Red) R539 5150236000 Var. Res., 10k ohm-Ax 2
5147041000 Socket, IC; 24P
5033291000 Plate, Insulating
5033295000 Tube, Insulating
5555888000 _ Heat Sink, C
5553296000 Frame, Joint
5552390000 Frame, PCB
5552391000 Frame, Heat Sink
49
