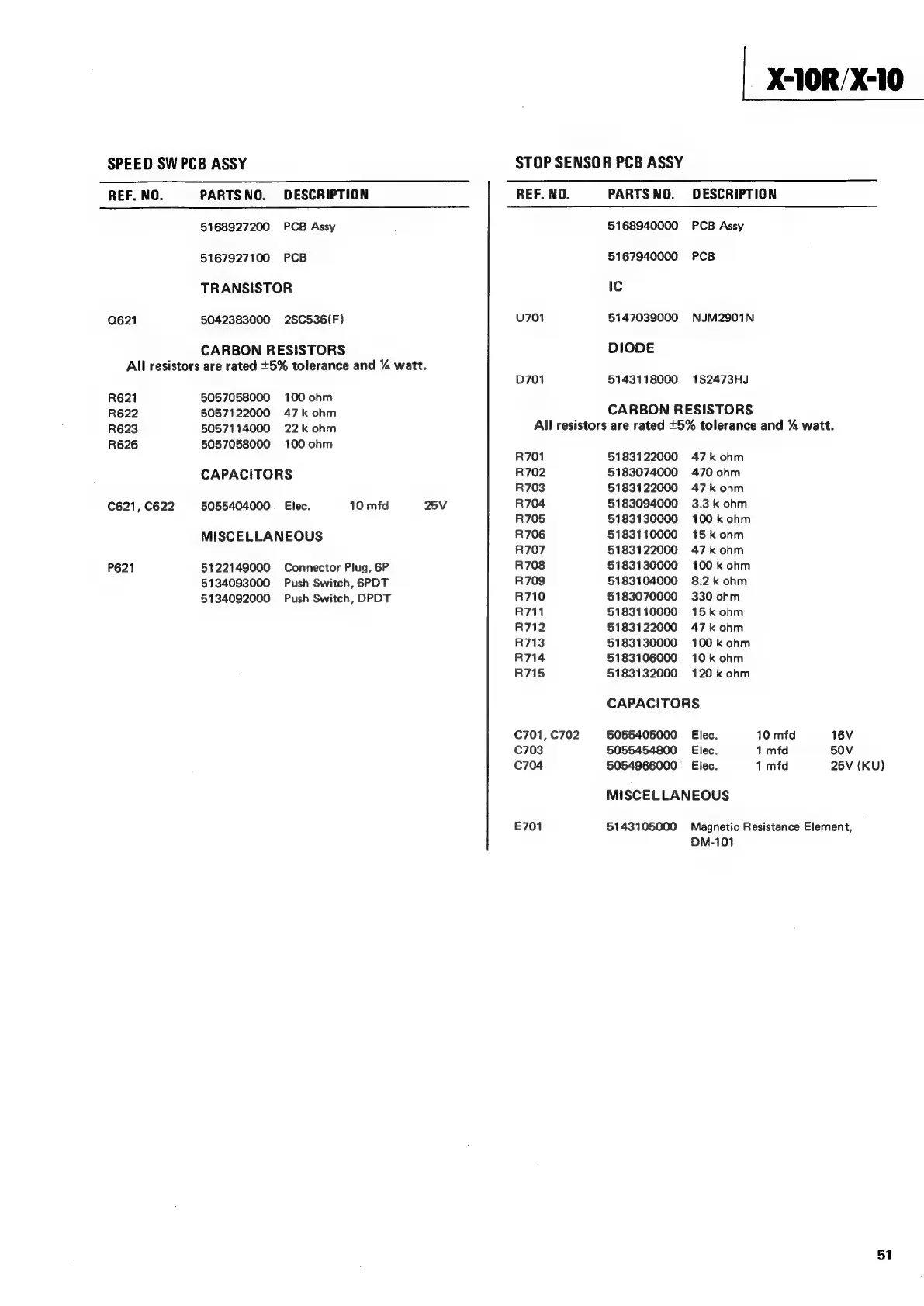

SPEED SW PCB ASSY
REF. NO. PARTSNO. DESCRIPTION
5168927200 PCB Assy
5167927100 PCB
TRANSISTOR
a621 5042383000 2SC536(F)
CARBON RESISTORS
All resistors are rated +5% tolerance and % watt.
R621 5057058000 100 ohm
R622 5057122000 47k ohm
R623 5057114000 22k ohm
R626 5057058000 100 chm
CAPACITORS
C621, C622 5055404000 _ Elec. 10 mfd
MISCELLANEOUS
P621 5122149000 Connector Plug, 6P
5134093000 Push Switch, 6PDT
5134092000 Push Switch, DPDT
25V
— X-10R/X-10
STOP SENSOR PCB ASSY
REF. NO. PARTSNO. DESCRIPTION
5168940000 PCB Assy
5167940000 PCB
Ic
U701 5147039000 NJM2901N
DIODE
D701 5143118000 1S2473HJ
CARBON RESISTORS
All resistors are rated +5% tolerance and % watt.
R701 5183122000 47k ohm
R702 5183074000 470 0hm
R703 5183122000 47k ohm
R704 5183094000 3.3 k ohm
R705 5183130000 100 k ohm
R706 5183110000 15k ohm
R707 5183122000 47k ohm
R708 5183130000 100k ohm
R709 5183104000 8.2 k ohm
R710 5183070000 330 ohm
R711 5183110000 15k ohm
R712 5183122000 47k ohm
R713 5183130000 100k ohm
R714 5183106000 10k ohm
R715 5183132000 120 kohm
CAPACITORS
C701, C702 5055405000_ Elec. 10 mfd 16V
C703 5055454800 Elec. 1 mfd 50V
C704 5054966000 _ Elec. 1 mfd 25V (KU)
MISCELLANEOUS
E701 5143105000 Magnetic Resistance Element,
DM-101
51
