X-10R/X-10
All screws conform to ISO‘standards, and have crossrecessed heads, unless otherwise noted.
ISO screws have the head inscribed with a point as in the figure to the right.
FOR EXAMPLE:
BM3x6

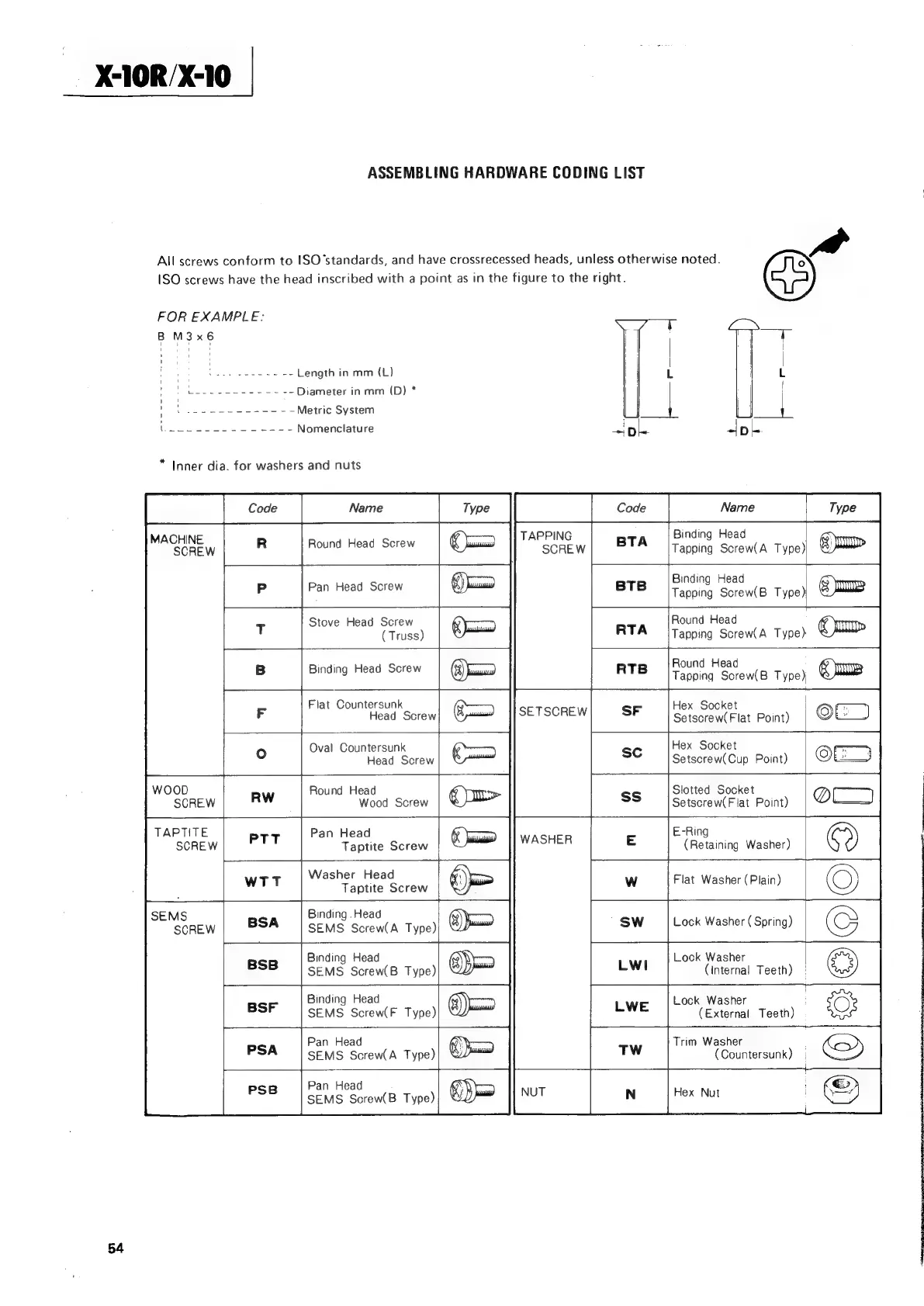

ASSEMBLING HARDWARE CODING LIST
~~ -- Length in mm (L)
L--~--------~--Diameter in mm (D) *
Metric System
~~ ----~----+--- Nomenclature
* Inner dia. for washers and nuts
Round Head Screw
Pan Head Screw
Stove Head Screw
(Truss)
Binding Head Screw
+__—_____;-___.
Flat Countersunk
Head Screw
Oval Countersunk
Head Screw
TAPTITE
SCREW
+
Round Head
Wood Screw
SETSCREW
Binding Head
Tapping Screw(A Type)
Binding Head
Tapping Screw(B Type)
Round Head
Tapping Screw(A Type)
Round Head
Tapping Screw(B Type);
Hex Socket
Setscrew( Flat Point)
Hex Socket
Setscrew(Cup Point)
@ mp
Slotted Socket
Setscrew( Flat Point)
Pan Head
Taptite Screw
Washer Head
Taptite Screw
Binding .Head
SEMS Screw(A Type)
Binding Head
SEMS Screw(B Type)
Binding Head
SEMS Screw(F Type)
Pan Head
SEMS Screw(A Type)
WASHER
T
E-Ring
(Retaining Washer)
Flat Washer (Plain)
Lock Washer ( Spring)
Lock Washer
(Internal Teeth)
t
Lock Washer
(External Teeth) |
Trim Washer
(Countersunk)
Pan Head
SEMS Screw(B Type)
