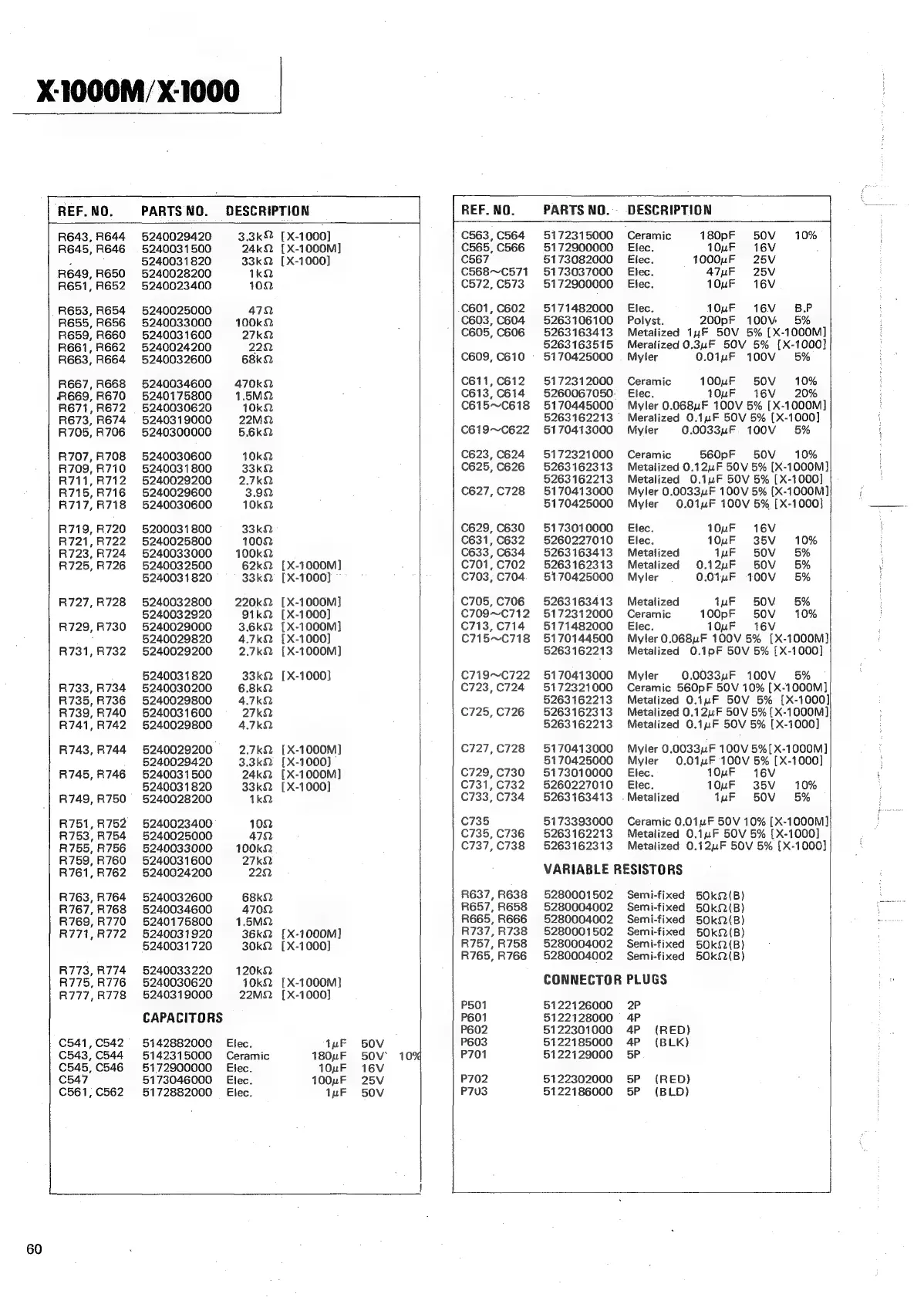

[ REF. NO. PARTS NO. DESCRIPTION
R643, R644 5240029420 3.3k2 [X-1000]
R645, R646 +. 5240031500 24kQ [X-1000M]
J ; 5240031820 33kQ [X-1000]
R649,R650 5240028200 1kQ
R651, R652 5240023400 102
R653, R654 +5240025000 472
R655, R656 5240033000 100kQ
R659, R660 5240031600 27kQ
R661, R662 5240024200 222
R663, R664 5240032600 68kQ
R667, R668 5240034600 470k
R669,R670 5240175800 1.5MQ
R671,R672 5240030620 10kQ
R673, R674 5240319000 22MQ
R705, R706 5240300000 5.6kQ
R707,R708 5240030600 10kQ2
R709,R710 5240031800 33k2
R711,R712 5240029200 2.7kQ
R715,R716 5240029600 3.92
R717,R718 5240030600 10k2
R719, R720 5200031800 33k
R721,R722 5240025800 1002
R723, R724 5240033000 100kQ
R725,R726 5240032500 62kQ [X-1000M]
5240031820 33k [X-1000]
R727,R728 5240032800 220k2 [X-1000M]
5240032920 91k [X-1000]
R729,R730 5240029000 3.6kQ [X-1000M]
; 5240029820 4.7kQ {[X-1000]
R731, R732 5240029200 2.7kQ [X-1000M]
5240031820 33kQ_ [X-1000]
R733, R734 5240030200 6.8kQ
R735,R736 5240029800 4.7kQ
R739,R740 5240031600 27kQ
R741,R742 5240029800 4.7kQ.
R743, R744 5240029200 2.7kQ [X-1000M]
5240029420 3.3k2 [X-1000] ©
R745,R746 5240031500 24k2 [X-1000M]
5240031820 33k [X-1000]
R749, R750 5240028200 1kQ.
R751,R752 5240023400 102
R753,R754 5240025000 472
R755, R756 5240033000 100k2
R759, R760 5240031600 27kQ
R761,R762 5240024200 222
R763, R764 5240032600 68kQ
R767, R768 5240034600 47022
R769,R770 5240175800 1.5MQ
R771,R772 5240031920 36kQ [X-1000M]
5240031720 30k2 [X-1000]
R773,R774 6240033220 120k2
R775,R776 5240030620 10kQ [X-1000M]
R777,R778 5240319000 22MQ [X-1000]
CAPACITORS
C541,C542 5142882000 Elec. 1yF
C543, C544 5142315000 Ceramic 180uF
C545, C546 + 5172900000 Elec. 10uF
C547 5173046000 _ Elec. 100unF
C561,C562 5172882000 Elec. 1yuF
-
50V
50V"
16V
25V
50V
10%
60
REF. NO. PARTS NO. DESCRIPTION
C563,C564 5172315000 Ceramic 180pF 50V
C565,C566 5172900000 Elec. 10uF 16V
C567 5173082000 Elec. 1000uF 25V
C568~C571 5173037000 Elec. 47ypF 25V
C572,C573. 5172960000 Elec. 10uF 16V
C601, C602 5171482000 Elec. 10uF 16V BP
C603, C604 5263106100 Polyst. 200pF 100V 5%
C605,C606 5263163413 Metalized 1nF 50V 5% [X-1000M]
5263163515 Meralized0.3uF 50V 5% [X-1000]
C609, C610 © 5170425000. Myler 0.01uF 100V 5%
C611,C612 5172312000 Ceramic 100uF 50V 10%
C613, C614 5260067050 _—s Elec. 10uF 16V 20%
C615~C618 5170445000 Myler 0.068uF 100V 5% [X-1000M]
5263162213 Meralized O.1uF 50V 5% [X-1000]
C619~C622 5170413000 Myler 0.0033uF 100V 5%
C623,C624 5172321000 Ceramic 560pF 50V 10%
C625, C626 5263162313 Metalized 0.12uF 50V 5% [X-1000M]
5263162213 Metalized O.1uF 50V 5% [X-1000]
C627,C728 5170413000 Myler 0.0033yuF 100V 5% [X-1000M]
5170425000 Myler 0.01nF 100V 5% [X-1000]
C629, C630 5173010000 Elec. 10uF 16V
C631, C632 5260227010 Elec. 10uF 35V 10%
C633, C634 5263163413 Metalized ipF 50V 5%
C701,C702 5263162313 Metalized O.12uF S50V 5%
C703, C704 5170425000 Myler O:01pF 100V 5%
C705,C706 5263163413 Metalized tpF 50V. 5%
C709~C712 5172312000 Ceramic 100pF 50V 10%
C713,C714 5171482000 Elec. 10uF 16V
C715~C718 5170144500 Myler 0.068uF 100V 5% [X-1000M)}
5263162213 Metalized O.1pF 50V 5% [X-1000]
C719~C722 5170413000 Myler 0.0033uF 100V 5%
C723,C724 5172321000 Ceramic 560pF 50V 10% [X-1000M]
5263162213 Metalized O.1nF 50V 5% [X-1000]
C725,C726 5263162313 Metalized 0.12u4F 50V 5% {X-1000M]
5263162213 Metalized 0.1uF 50V 5% [X-1000]
C727,C728 5170413000 Myler 0,0033uF 100V 5%[ X-1000M]
5170425000 Myler 0.01nF 100V 5% [X-1000]
C729,C730 5173010000 Elec. 10uF 16V
C731,C732 5260227010 Elec. 10uF 35V 10%
C733,C734 5263163413 . Metalized TyF 50V 5%
C735 5173393000 Ceramic 0.01F 50V 10% [X-1000M]
C735,C736 5263162213 Metalized 0.14F 50V 5% [X-1000]
C737,C738 5263162313 Metallized 0.12uF 50V 5% [X-1000]
VARIABLE RESISTORS
R637,R638 5280001502 Semi-fixed 50k2(B)
R657,R658 5280004002 Semi-fixed 50k2(B)
R665,R666 5280004002 Semi-fixed 50k2(B)
R737,R738 5280001502 Semi-fixed 50k2(B)
R757, R758 5280004002 Semi-fixed 50k92(B)
R765,R766 5280004002 Semi-fixed 50k2(B)
CONNECTOR PLUGS
P501 5122126000 2P
P601 5122128000 4P
P602 5122301000 4P (RED)
P603 5122185000 4P (BLK)
P701 5122129000 5P
P702 5122302000 5P (RED)
P7U3 5122186000 5P (BLD)
