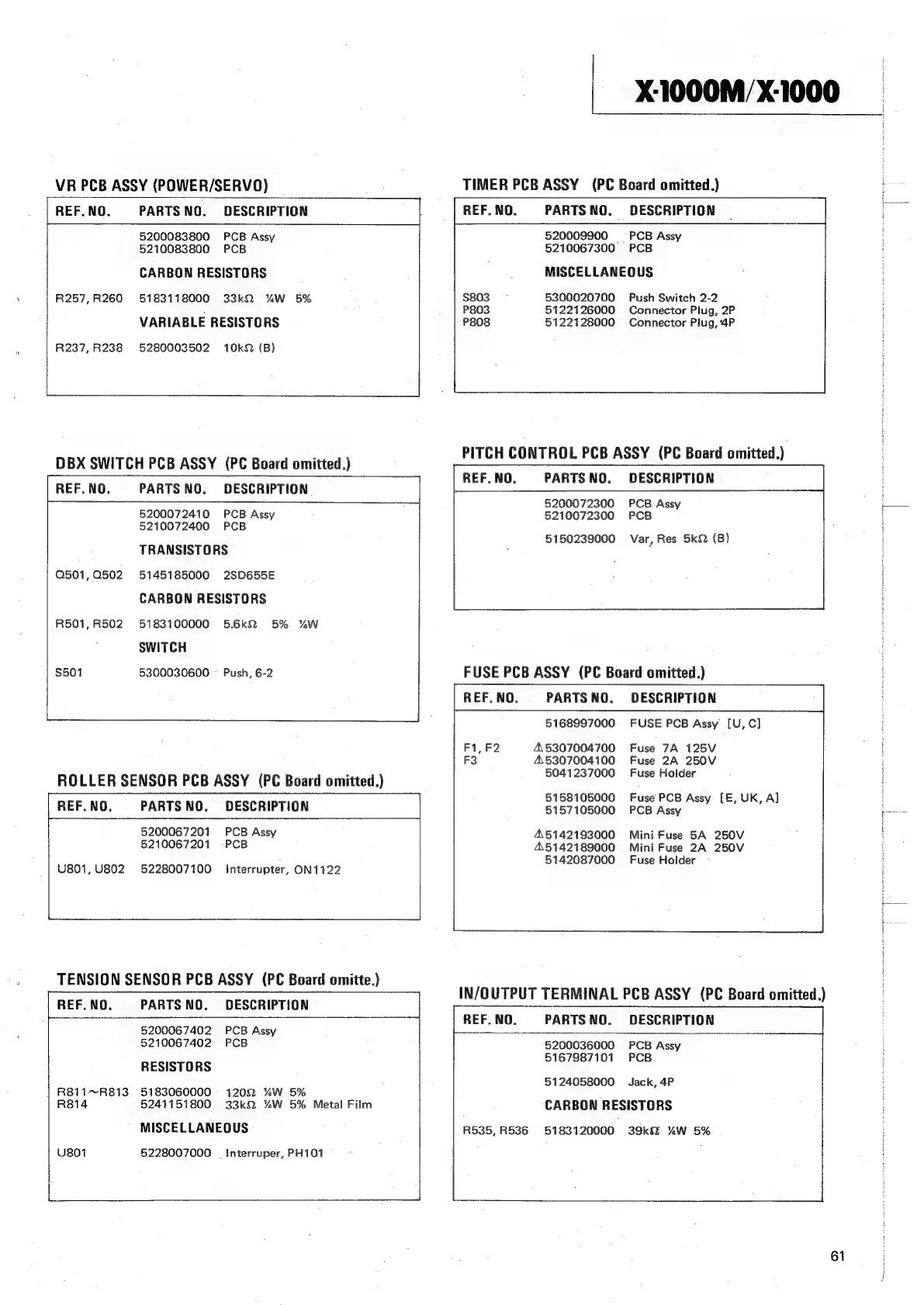

VR PCB ASSY (POWER/SERVO)
REF.NO. PARTSNO. DESCRIPTION
5200083800 PCB Assy
5210083800 PCB
CARBON RESISTORS
5183118000 33k92 “WwW 5%
VARIABLE RESISTORS
5280003502 10kQ (B)
R257, R260
R237, R238
DBX SWITCH PCB ASSY (PC Board omitted.)
REF. NO. PARTS NO. DESCRIPTION
5200072410 PCB Assy
5210072400 PCB
TRANSISTORS
5145185000 2SD655E
CARBON RESISTORS
5183100000 5.6k2 5% %W
SWITCH
Q501, Q502
R501, R502
$501 5300030600 — Push, 6-2
ROLLER SENSOR PCB ASSY (PC Board omitted.)
| REF, NO. PARTS NO. DESCRIPTION
5200067201 PCB Assy
5210067201 -PCB
U801, U802 5228007100 interrupter, ON1122
TENSION SENSOR PCB ASSY (PC Board omitte.)
REF.NQ. PARTS NO. DESCRIPTION
5200067402 PCB Assy
5210067402 PCB
RESISTORS
| R811~R813 5183060000 - 1202 “W 5%
R814 5241151800 33k2 %W 5% Metal Film
MISCELLANEOUS
U801 5228007000 = Interruper, PH101
X%1000M/X:1000
TIMER PCB ASSY (PC Board omitted.)
REF. NO.
PARTS NO. DESCRIPTION —
520009900 _ ~=—s PCB Assy
5210067300 PCB
MISCELLANEOUS
5300020700 Push Switch 2-2
5122126000 Connector Plug, 2P
5122128000 Connector Plug, 4P
PITCH CONTROL PCB ASSY (PC Board omitted.)
REF. NO. PARTS NO. DESCRIPTION
5200072300 PCB Assy
5210072300 PCB
5150239000 Var, Res 5k (B}
FUSE PCB ASSY (PC Board omitted.)
REF. NO. PARTS NO. DESCRIPTION
5168997000 FUSE PCB Assy’ [U, C]
45307004700 Fuse 7A 125V
45307004100 Fuse 2A 250V
5041237000 Fuse Holder
5158105000 Fuse PCB Assy [E, UK, A]
5157105000 PCB Assy
45142193000 Mini Fuse 5A 250V
45142189000 Mini Fuse 2A 250V
5142087000 Fuse Holder ~
IN/OUTPUT TERMINAL PCB ASSY (PC Board omitted.)
PARTSNO. DESCRIPTION
5200036000 PCB Assy
5167987101 PCB
5124058000 Jack, 4P
CARBON RESISTORS
R535, R536 5183120000 39k “”W 5%
