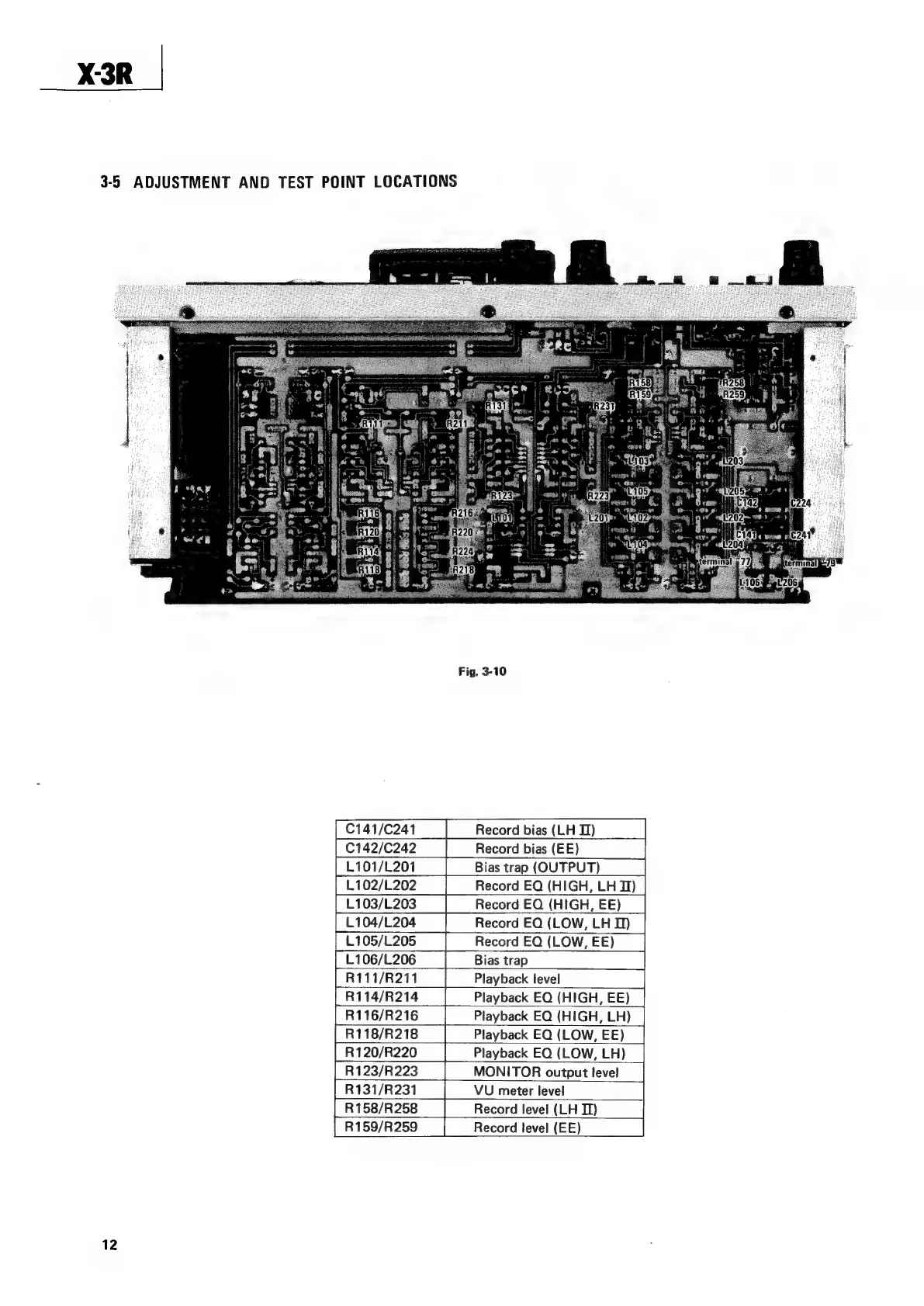

3-5 ADJUSTMENT AND TEST POINT LOCATIONS
Fig. 3-10
C141/C241 Record bias (LH II)
C142/C242 Record bias (EE)
L101/L201 Bias trap (OUTPUT) |
L102/L202 Record EQ (HIGH, LH II)
Record EQ (HIGH, EE)
Record EQ (LOW, LH II)
L105/L205 Record EQ (LOW, EE)
L106/L206 Bias trap
R111/R211 Playback level
Playback EQ (HIGH, EE) |
Playback EQ (HIGH, LH)
Playback EQ (LOW, EE) |
R120/R220 Playback EQ (LOW, LH)
MONITOR output level
R131/R231 VU meter level
R158/R258 Record level (LH II)
R159/R259 Record level (EE)
