Teac X-3R - Included Accessories

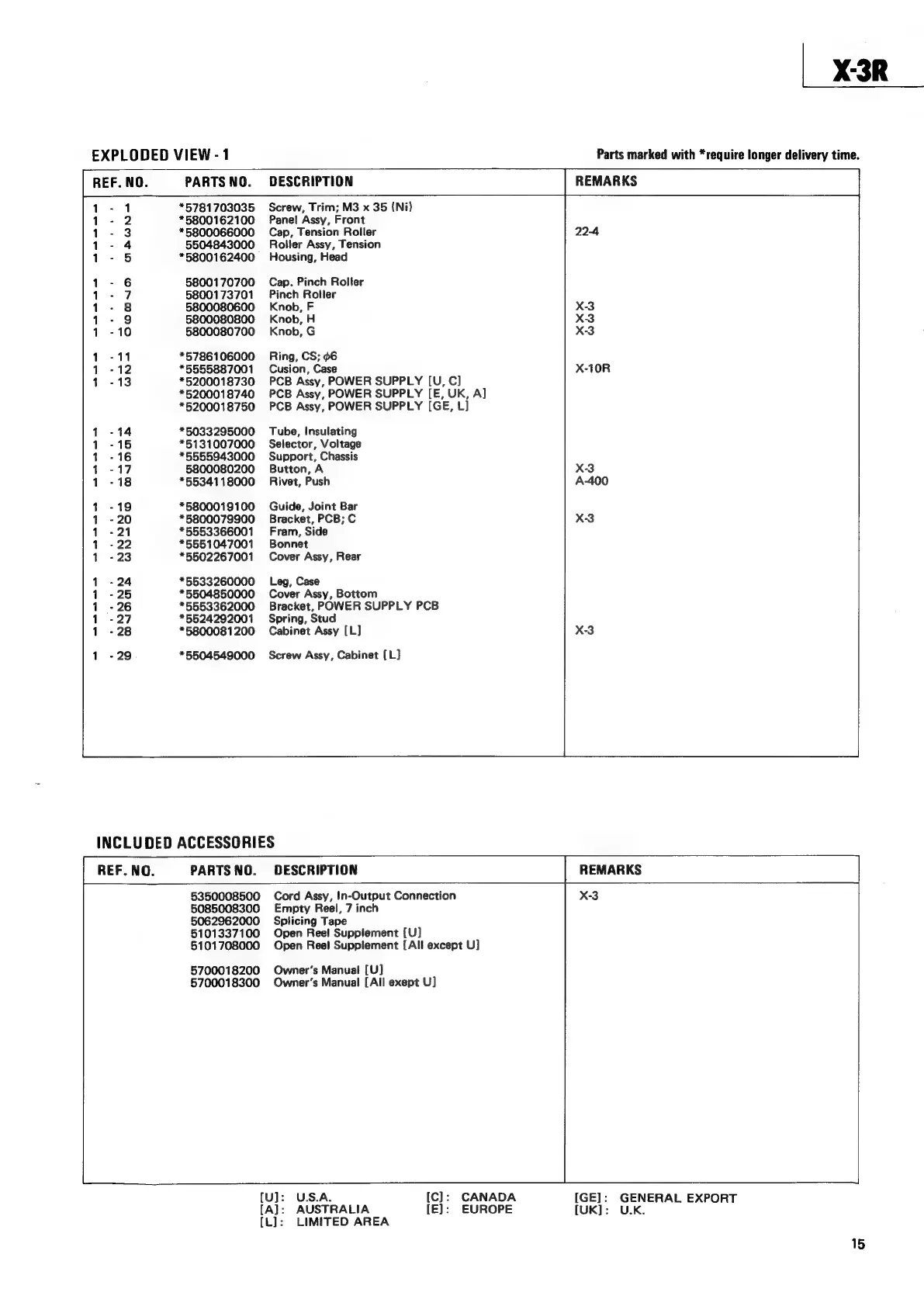

EXPLODED VIEW - 1
X-3R
Parts marked with *require longer delivery time.
REMARKS
REF. NO. PARTS NO. DESCRIPTION
1-1 *5781703035 Screw, Trim; M3 x 35 (Ni)
1-2 *5800162100 Panel Assy, Front
1-3 *5800066000 Cap, Tension Roller
1-4 5504843000 _ Roller Assy, Tension
1-5 *5800162400 Housing, Head
1 6 5800170700 Cap. Pinch Roller
1-7 5800173701 Pinch Roller
1 8 5800080600 Knob, F
1-9 5800080800 Knob, H
1 -10 5800080700 Knob, G
1-11 *5786106000 Ring, CS: ¢6
1-12 *5555887001 Cusion, Case
1 -13 *5200018730 PCB Assy, POWER SUPPLY [U, C]
*5200018740 PCB Assy, POWER SUPPLY [E, UK, A]
*5200018750 PCB Assy, POWER SUPPLY [GE, L]
1-14 *5033295000 Tube, Insulating
1 -15 *5131007000 Selector, Voltage
1-16 *5555943000 Support, Chassis
1 -17 5800080200 Button, A
1 18 *5534118000 Rivet, Push
1 -19 *5800019100 Guide, Joint Bar
1 -20 *5800079900 Bracket, PCB; C
1-21 *5553366001 Fram, Side
1-22 *5551047001 Bonnet
1 -23 *5502267001 Cover Assy, Rear
1 -24 *5533260000 Leg, Case
1 -25 *5504850000 Cover Assy, Bottom
1 -26 *5553362000 Bracket, POWER SUPPLY PCB
1 -27 *5524292001 Spring, Stud
1 -28 *5800081200 Cabinet Assy [L]
1 -29 *5504549000 Screw Assy, Cabinet (L]
INCLUDED ACCESSORIES
REF. NO.
PARTS NO.
5350008500
5085008300
5062962000
5101337100
5101708000
5700018200
5700018300
DESCRIPTION
Cord Assy, In-Output Connection
Empty Reel, 7 inch
Splicing Tape
Open Reel Supplement [U]
Open Reel Supplement [All except U]
Owner’s Manual [U]
Owner’s Manual [All exept U]
{U]: U.S.A. [C]: CANADA
[A]: AUSTRALIA [E]: EUROPE
{L]: LIMITED AREA
